Home >> Ford >> 2011 >> F 250 4WD Super Duty V8-6.2L Flex Fuel >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Diagrams >> C1043 Park / Turn Lamp, Right Front

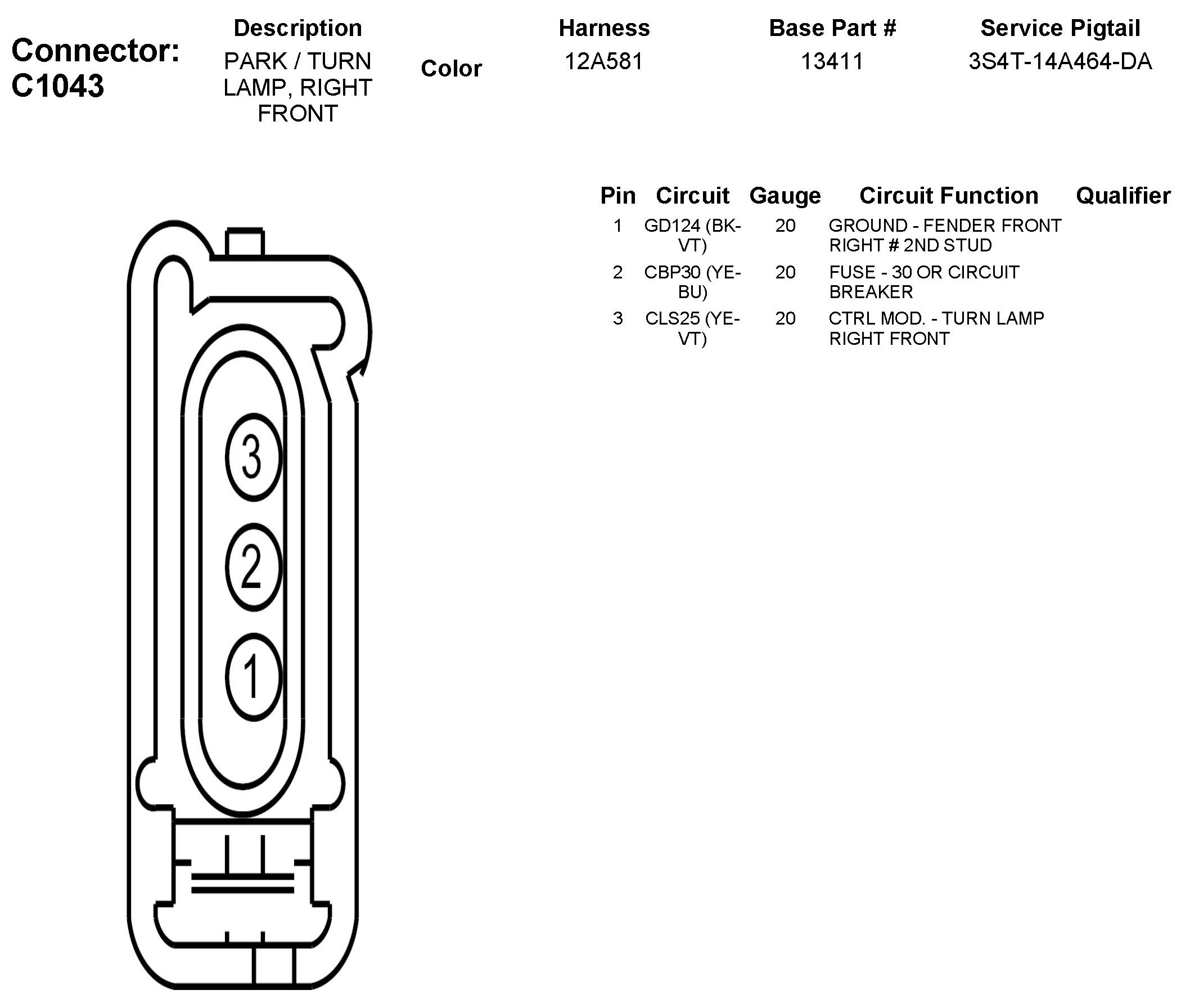

C1043 Park / Turn Lamp, Right Front
