Upfitter Switch

Upfitter Switch









Removal and Installation

All vehicles

1. Remove the instrument panel center finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel.

Vehicles with trailer brakes

2. Using a suitable tool (such as a small screwdriver), press the retaining tab at the top and remove the Trailer Brake Control (TBC) module.

Vehicles without trailer brakes

3. Using a suitable tool (such as a small screwdriver), press the 4 retaining tabs and remove the storage bin.

All vehicles

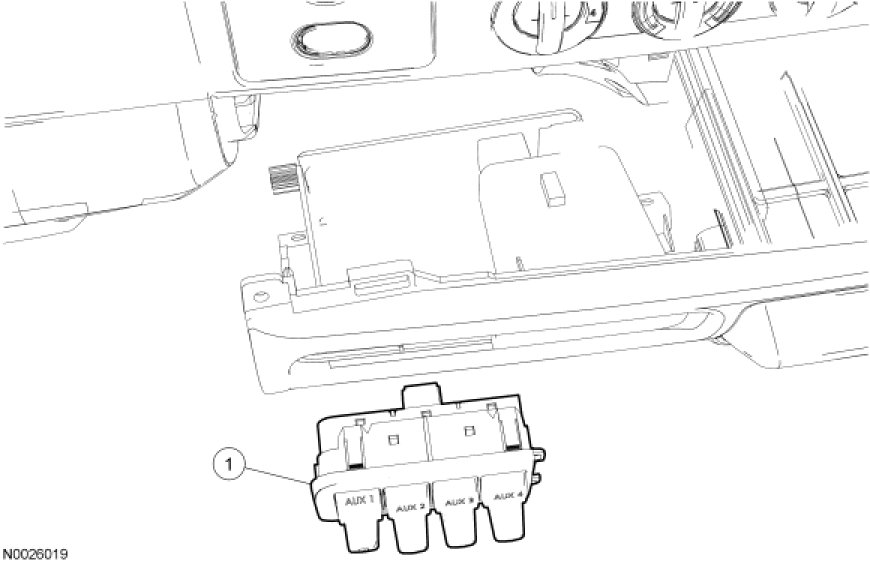

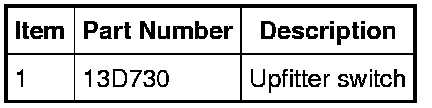

4. Using a suitable tool (such as a small screwdriver), press the 4 retaining tabs and remove the upfitter switch.

5. To install, reverse the removal procedure.
