Engine Controls - ECM/TCM Update For DTC P0181

TSB 12-5-12

05/29/12

6.7L - CALIBRATION UPDATE-BUILT ON OR BEFORE 5/15/2012

FORD:
2011-2012 F-Super Duty

This article supersedes TSB 11-8-24 to update the Issue Statement and Service Procedure.

ISSUE
Some 2011-2012 F-Super Duty vehicles equipped with a 6.7L engine and built on or before 5/15/2012 may exhibit diagnostic trouble code (DTC) P0181.

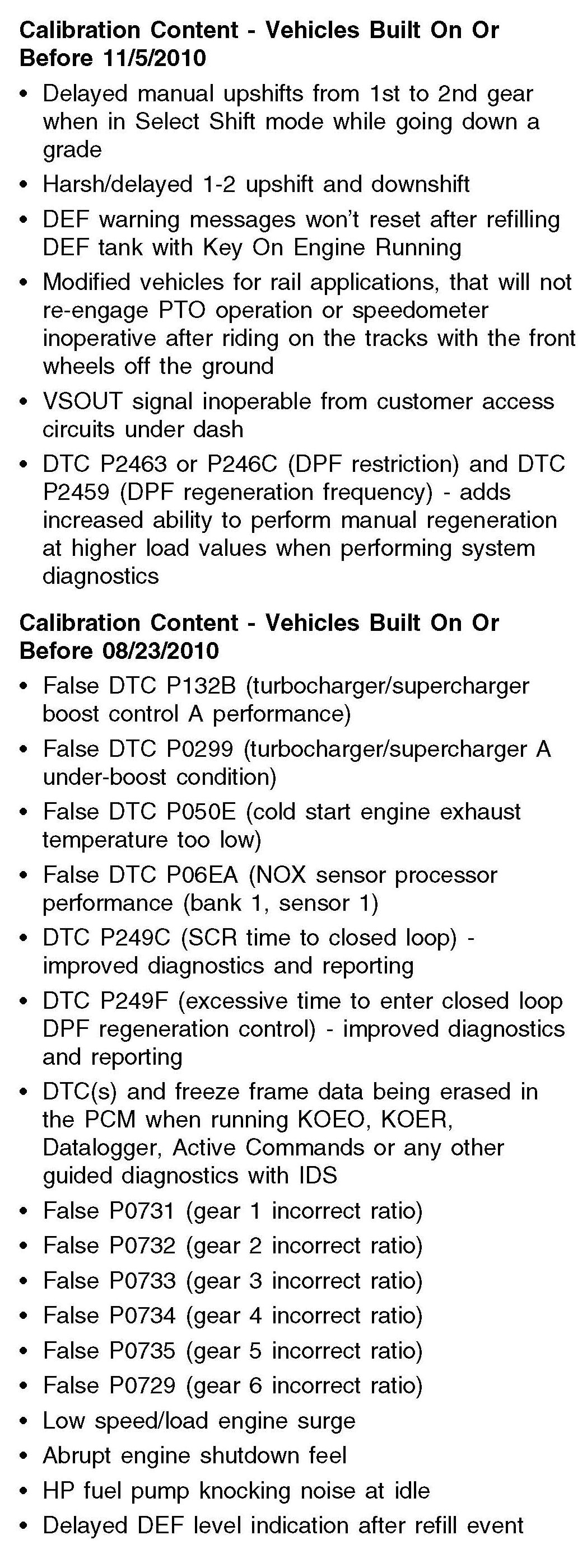

Refer to the Calibration Content for additional calibration updates.

ACTION

Follow the Service Procedure steps to correct the condition.














SERVICE PROCEDURE

WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using OASIS part coverage tool.

OPERATION DESCRIPTION TIME

120512A 2011-2012 F-Super Duty 0.6 Hr.
6.7L: Check DTCs,
Reprogram The PCM And
TCM (Do Not Use With
Any Other Labor
Operations)

DEALER CODING
CONDITION
BASIC PART NO. CODE
RECALEM 04
