Tire Pressure Module: Service and Repair

Tire Pressure Monitoring System (TPMS) Module









Removal

NOTICE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

1. Open the glove compartment door and while pushing in on the glove compartment tab, position the glove compartment downwards.

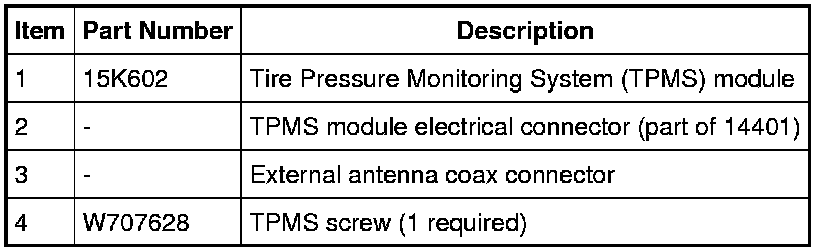

2. Disconnect the TPMS and external antenna electrical connectors.





3. Remove the screw and the TPMS.

Installation

1. To install, reverse the removal procedure.
