Pinpoint Test B: All Power Windows are Inoperative

Glass, Frames and Mechanisms

Pinpoint Tests

Pinpoint Test B: All Power Windows are Inoperative

Refer to Wiring Diagram Set 100, Power Windows for schematic and connector information. Diagrams By Number

Normal Operation

Under normal operation, power is supplied to the LH front window control switch from the accessory delay relay. For regular cab and SuperCab, the LH front window control switch supplies ground for both LH and RH window motor operation. For Crew Cab, the LH front window control switch supplies power and ground for all window motor operation.

This pinpoint test is intended to diagnose the following:
- Circuit breaker
- Accessory delay relay
- Wiring, terminals or connectors
- LH front window control switch

PINPOINT TEST B: ALL POWER WINDOWS ARE INOPERATIVE

NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

-------------------------------------------------
B1 CHECK VOLTAGE TO LH FRONT WINDOW CONTROL SWITCH

- Disconnect: LH Front Window Control Switch C504A (Crew Cab) or C535 (regular and SuperCab).
- Ignition ON.
- Measure the voltage between LH front window control switch C504A-2 (Crew Cab) or C535-7 (regular and SuperCab), circuit CBP01 (BU), harness side and ground.




- Is the voltage greater than 10 volts?

Yes
GO to B3.

No
VERIFY BCM circuit breaker 48 (30A) is OK. If OK, GO to B2.

If not OK, REFER to the Wiring Diagrams to identify the possible causes of the circuit short. Diagrams By Number

-------------------------------------------------
B2 CHECK THE LH FRONT WINDOW CONTROL SWITCH POWER CIRCUIT FOR AN OPEN

- Ignition OFF.
- Disconnect: BCM C2280D.
- Measure the resistance between LH front window control switch C504A-2 (Crew Cab) or C535-7 (regular and SuperCab), circuit CBP01 (BU), harness side and BCM C2280D-27, circuit CBP01 (BU), harness side.




- Is the resistance less than 5 ohms?

Yes
GO to Pinpoint Test F to DIAGNOSE the accessory delay relay system. Pinpoint Test F: The Delayed Accessory is Inoperative

No
REPAIR the circuit. TEST the system for normal operation.

-------------------------------------------------
B3 CHECK THE LH FRONT WINDOW CONTROL SWITCH GROUND

- Ignition OFF.

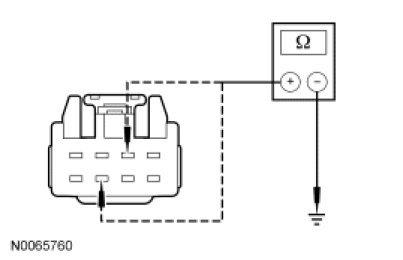

- Measure the resistance between LH front window control switch C504B-7 (Crew Cab) or C535-2 (regular and SuperCab), circuit GD137 (BK/WH), harness side and ground.




- Is the resistance less than 5 ohms?

Yes
INSTALL a new LH front window control switch. REFER to Window Control Switch Service and Repair.

No
REPAIR the circuit. TEST the system for normal operation.

-------------------------------------------------
