Toe Adjustment

Toe Adjustment - F-250 and F-350 Rear Wheel Drive (RWD)

1. Using alignment equipment and the manufacturer's instructions, measure the toe settings.
- Refer to Alignment Specifications in the Specifications information for optimal alignment settings.

- If the toe settings are not within specification, go to the next step.

2. Start the engine and center the steering wheel.

3. Turn the engine off and, using a suitable steering wheel holding device, lock the steering wheel in the straight ahead position.

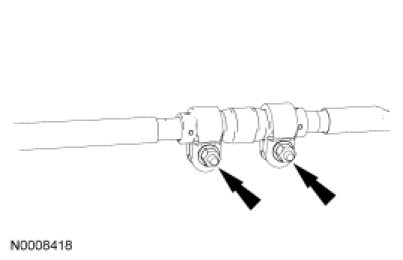

4. Loosen the tie-rod adjuster sleeve nuts.





5. Rotate the tie-rod adjusting sleeves to obtain the correct toe setting.





6. Position both adjusting sleeve clamp openings downward within 45 degrees of vertical. Tighten the nuts to 55 Nm (41 lb-ft).





7. Verify the toe settings and adjust as necessary.
