Door Speaker

Door Speaker

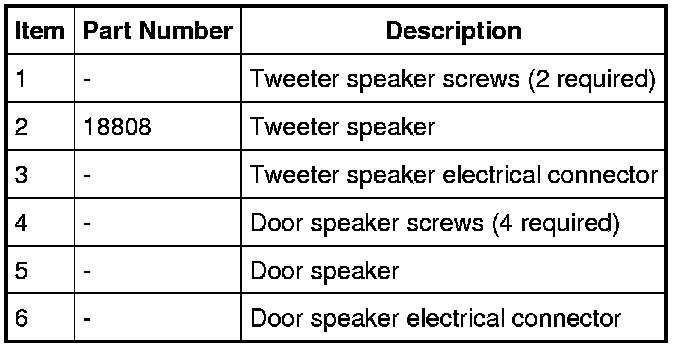

NOTE: LH front door shown, others similar.









Removal and Installation

All speakers

1. Remove the door trim panel. For additional information, refer to Interior Trim and Ornamentation Service and Repair.

2. To install, reverse the removal procedure.

Tweeter speaker

3. Remove the 2 screws and the speaker.
- Disconnect the electrical connector.

Door speaker

4. Remove the 4 screws and the speaker.
- Disconnect the electrical connector.

All speakers

5. To install, reverse the removal procedure.
