Battery
>>

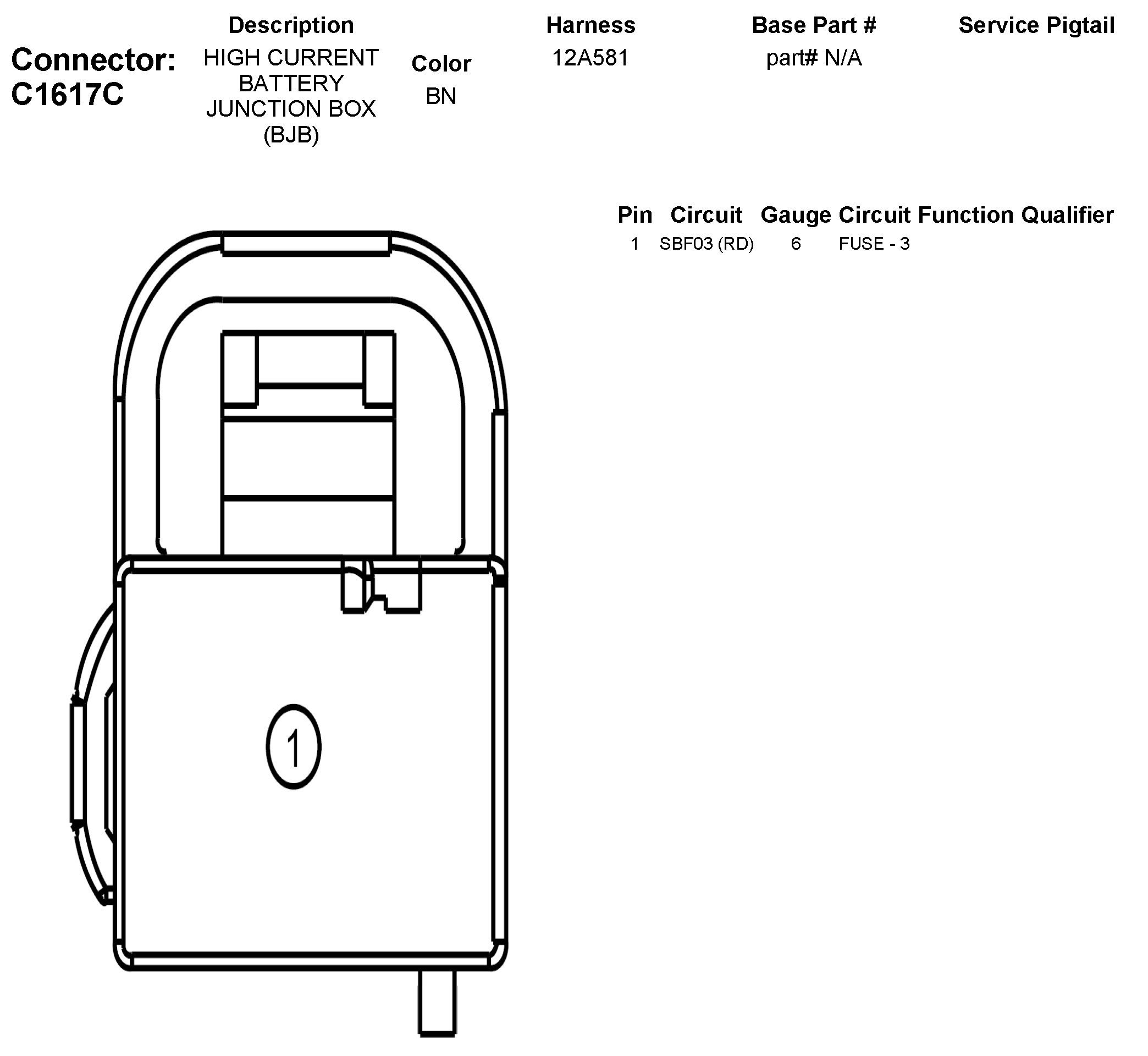

C1617C High Current Battery Junction Box (BJB)
C1617C High Current Battery Junction Box (BJB)
