Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2011
>>
F 450 4WD Super Duty V8-6.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>

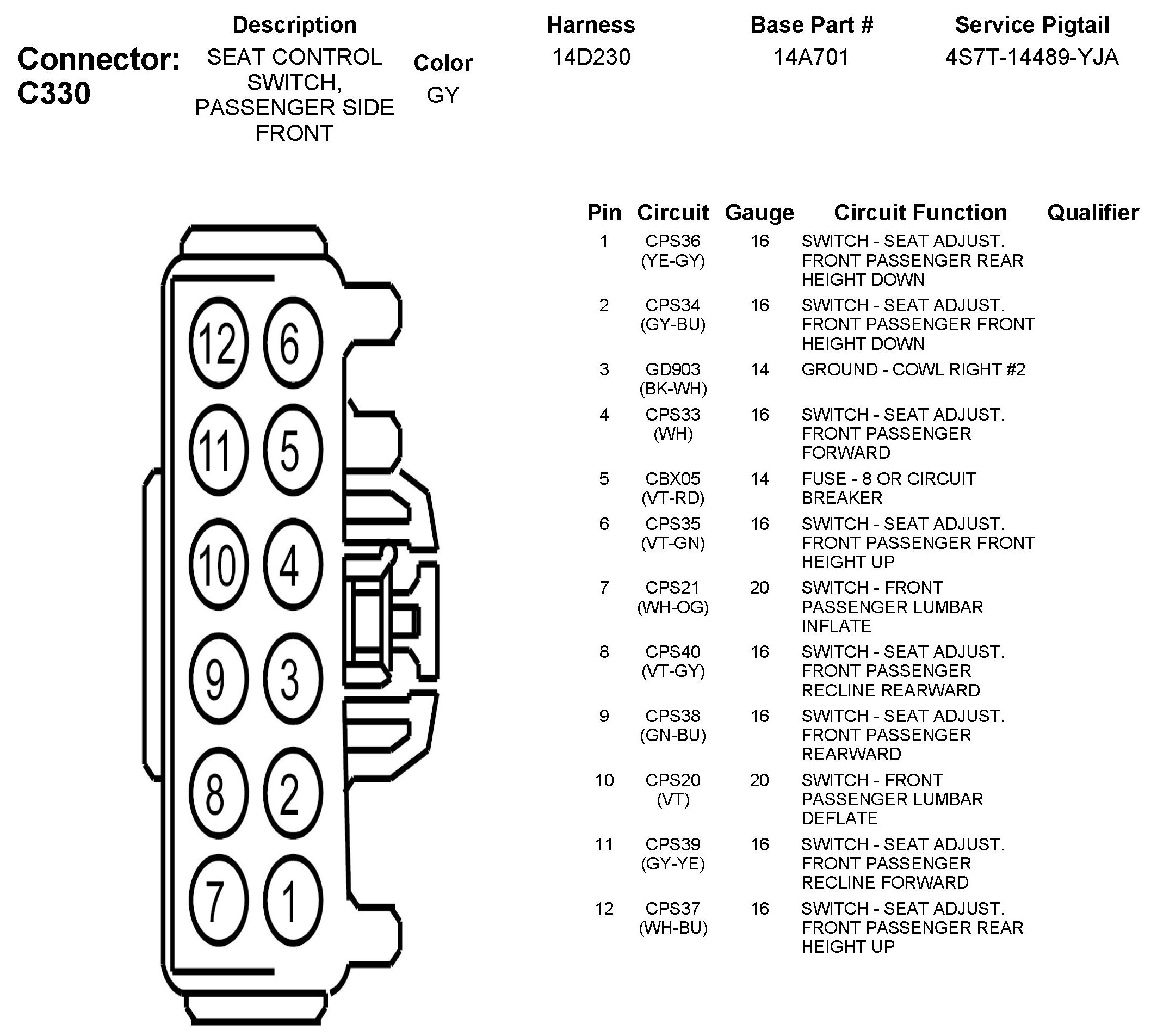

C330 Seat Control Switch, Passenger Side Front
C330 Seat Control Switch, Passenger Side Front
