Test RE: Reductant Purge Valve
Test RE: Reductant Purge Valve
PINPOINT TEST RE: REDUCTANT PURGE VALVE

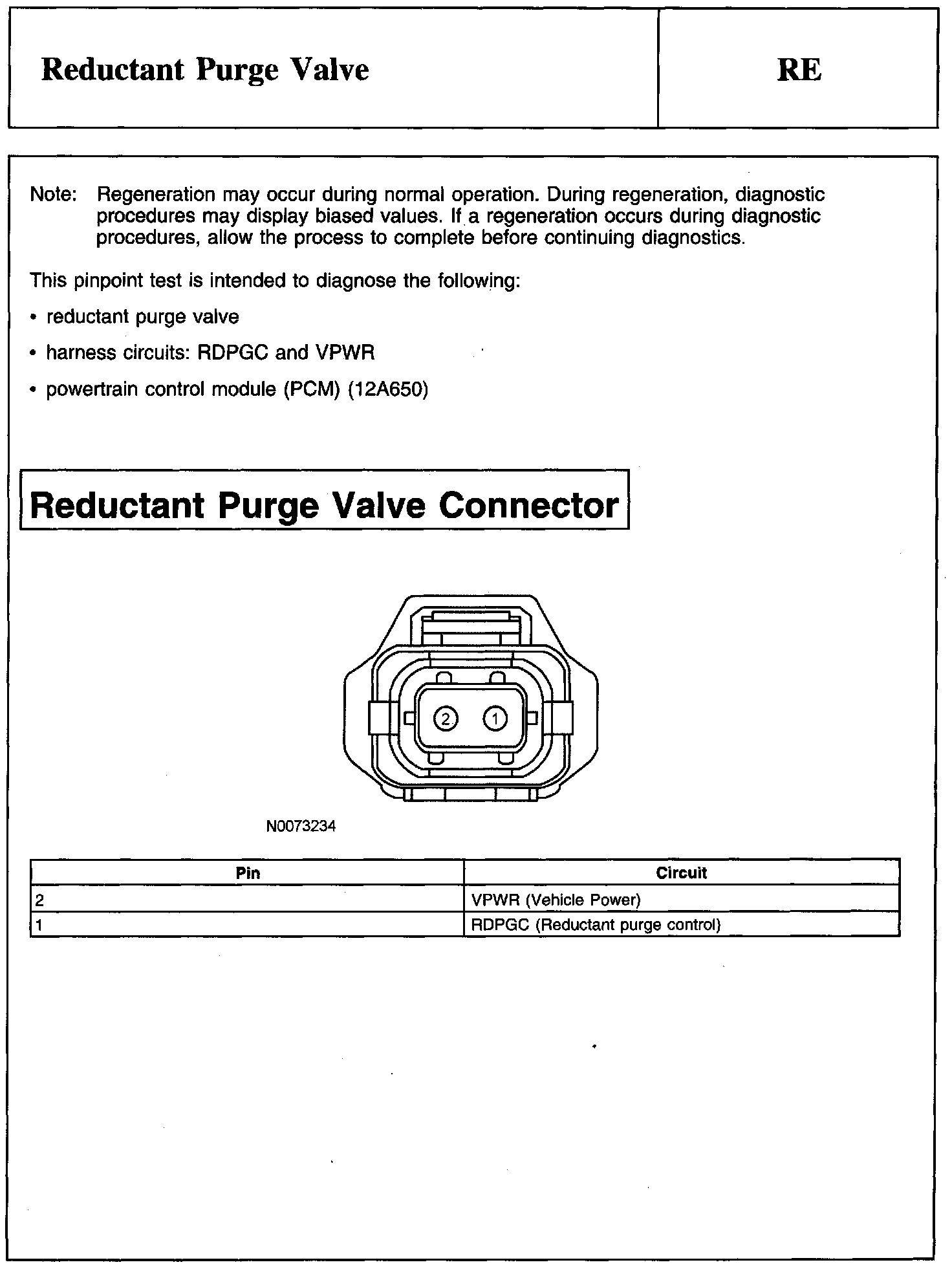

Note And Reductant Purge Valve Connector:

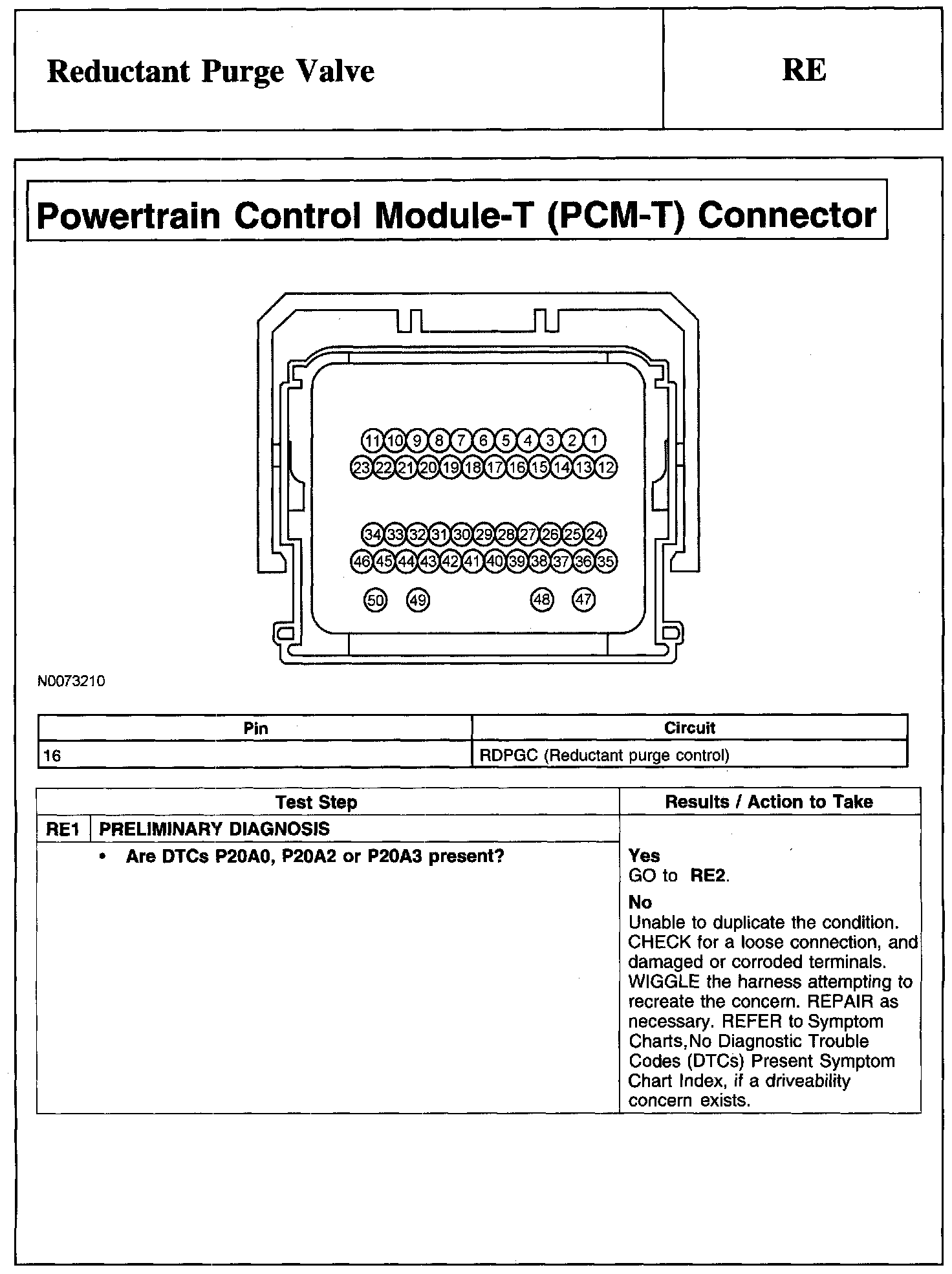

RE1:

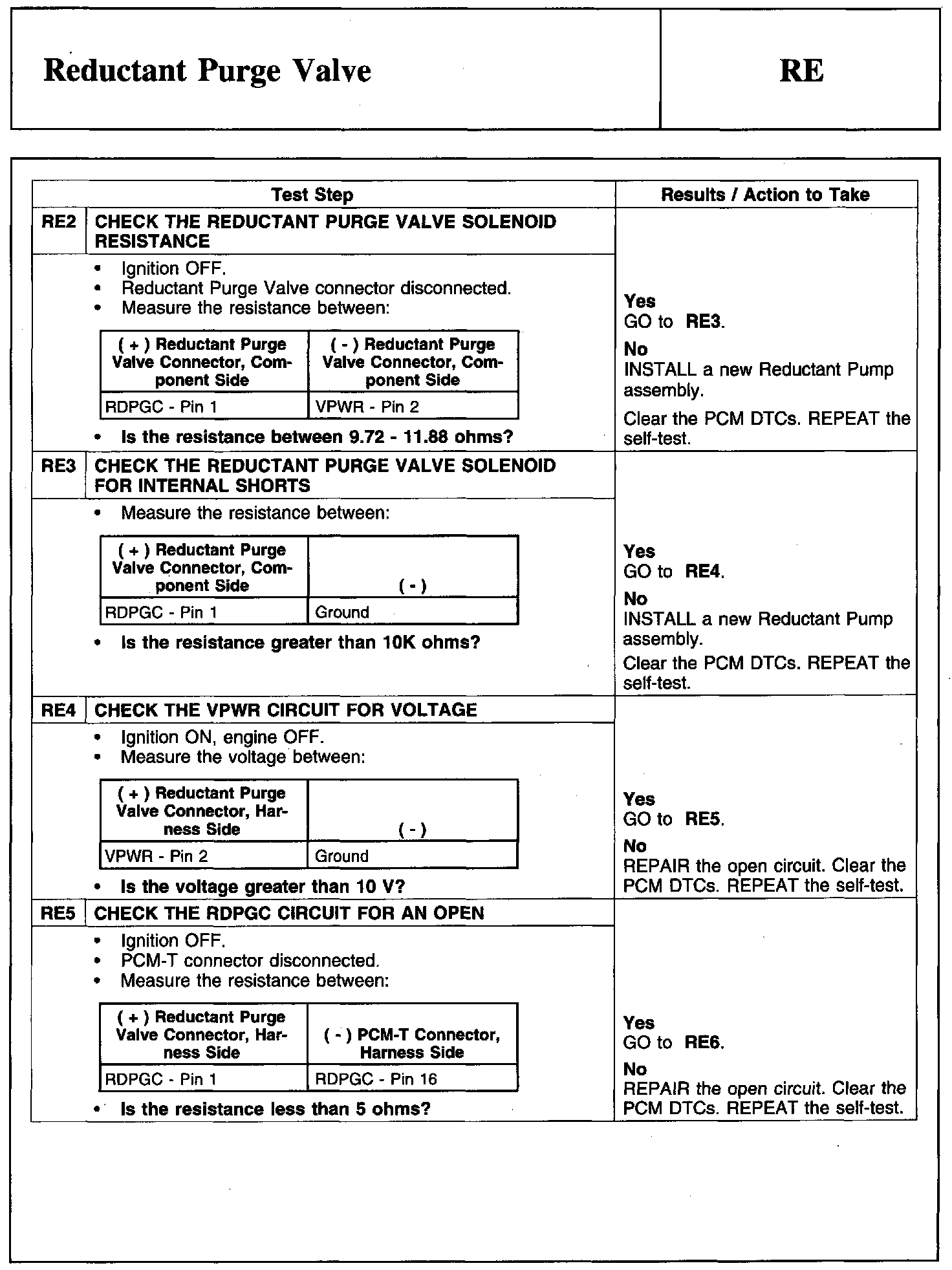

RE2-RE5:

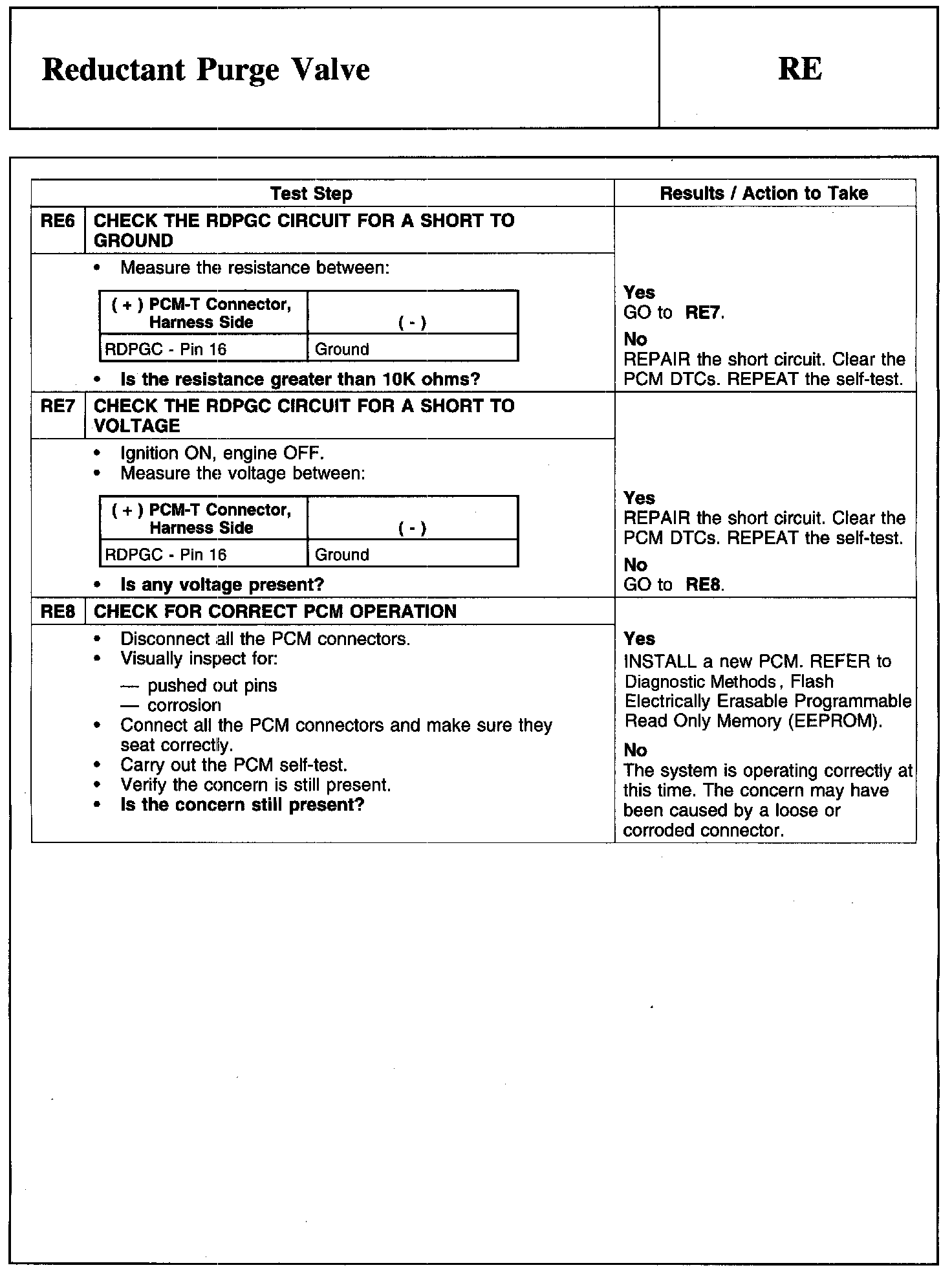

RE6-RE8:
