Antenna: Service and Repair

Antenna

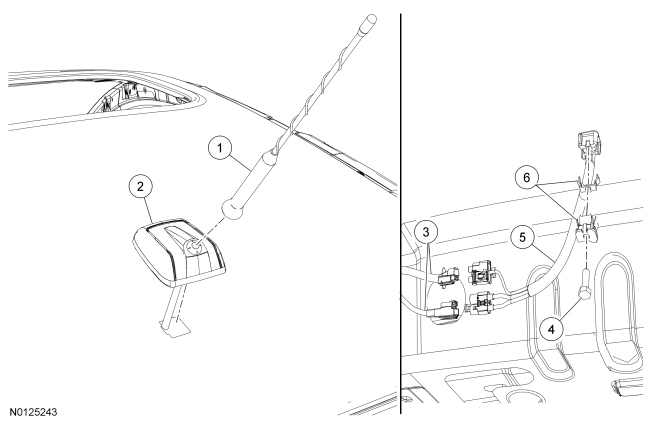

Early Build

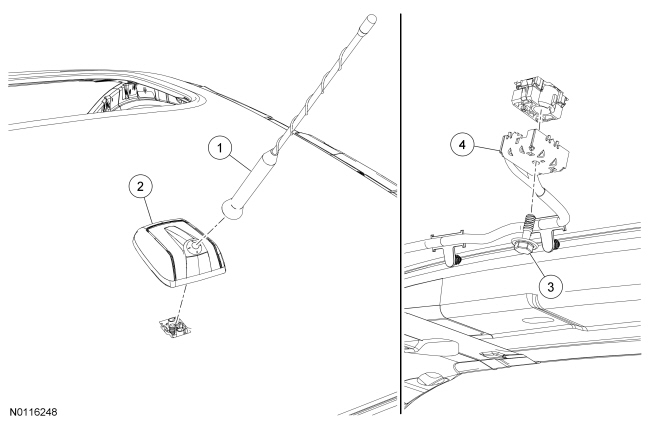

Late Build









Removal and Installation

All

1. Remove the headliner. For additional information, refer to Interior Trim and Ornamentation Service and Repair.

Early build

2. Remove the bolt from the antenna base and remove the antenna cable connector from the antenna base.
- To install, tighten to 9Nm (80 lb-in).

Late build

3. Disconnect the antenna cable electrical connectors. Remove the bolt from the antenna base and remove the antenna base retainers.
- To install, tighten to 9Nm (80 lb-in).

All

4. Remove the satellite radio antenna from the top of the roof.

5. To install, reverse the removal procedure.
