Air Flow Meter/Sensor

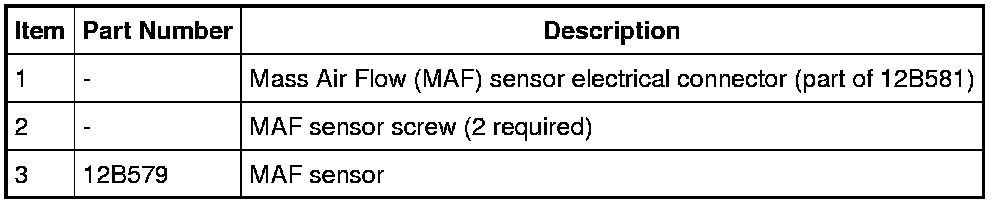

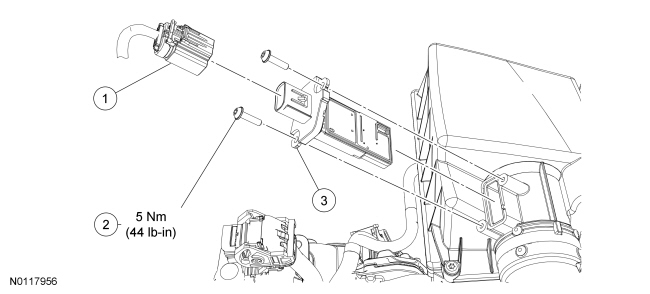

Engine Control Components - Exploded View





Mass Air Flow (MAF) Sensor

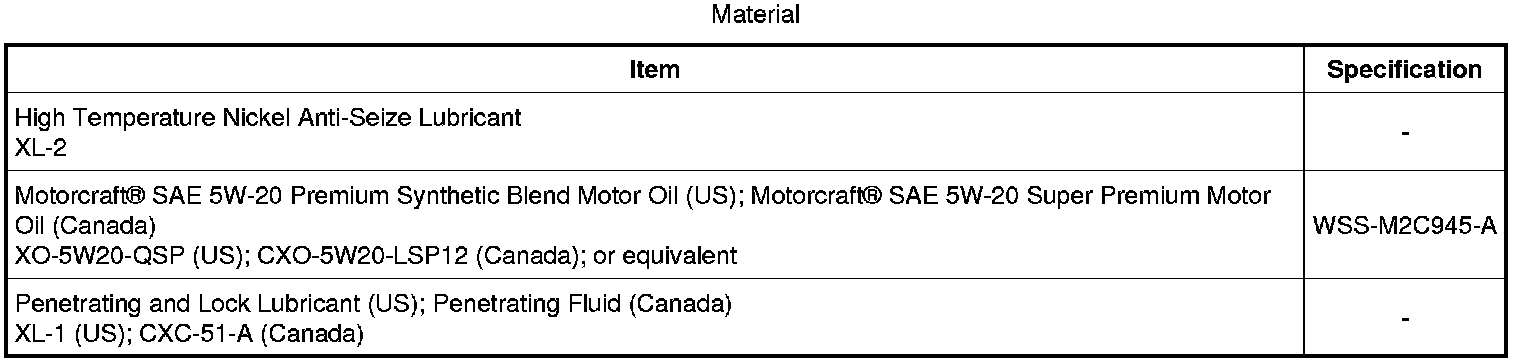

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
