Ignition Switch: Service and Repair

Ignition Switch

Removal and Installation

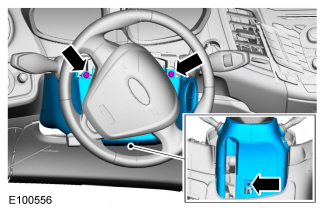

1. Pulling upward, detach the upper steering column shroud from the lower steering column shroud.
- Slide the upper steering column shroud out of the Instrument Cluster (IC) trim panel and remove the shroud.





2. Remove the 3 screws and the lower steering column shroud.

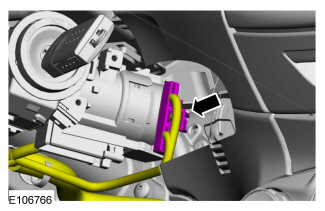

3. Disconnect the ignition switch electrical connector.

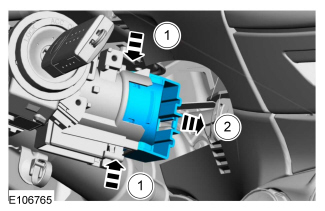

4. Remove the ignition switch in the sequence shown.

1. Press the 2 retaining tabs.

2. Remove the ignition switch.





5. To install, reverse the removal procedure.
