Rear Entertainment Module (RETM) DTC Chart

Information and Entertainment System

DTC Charts

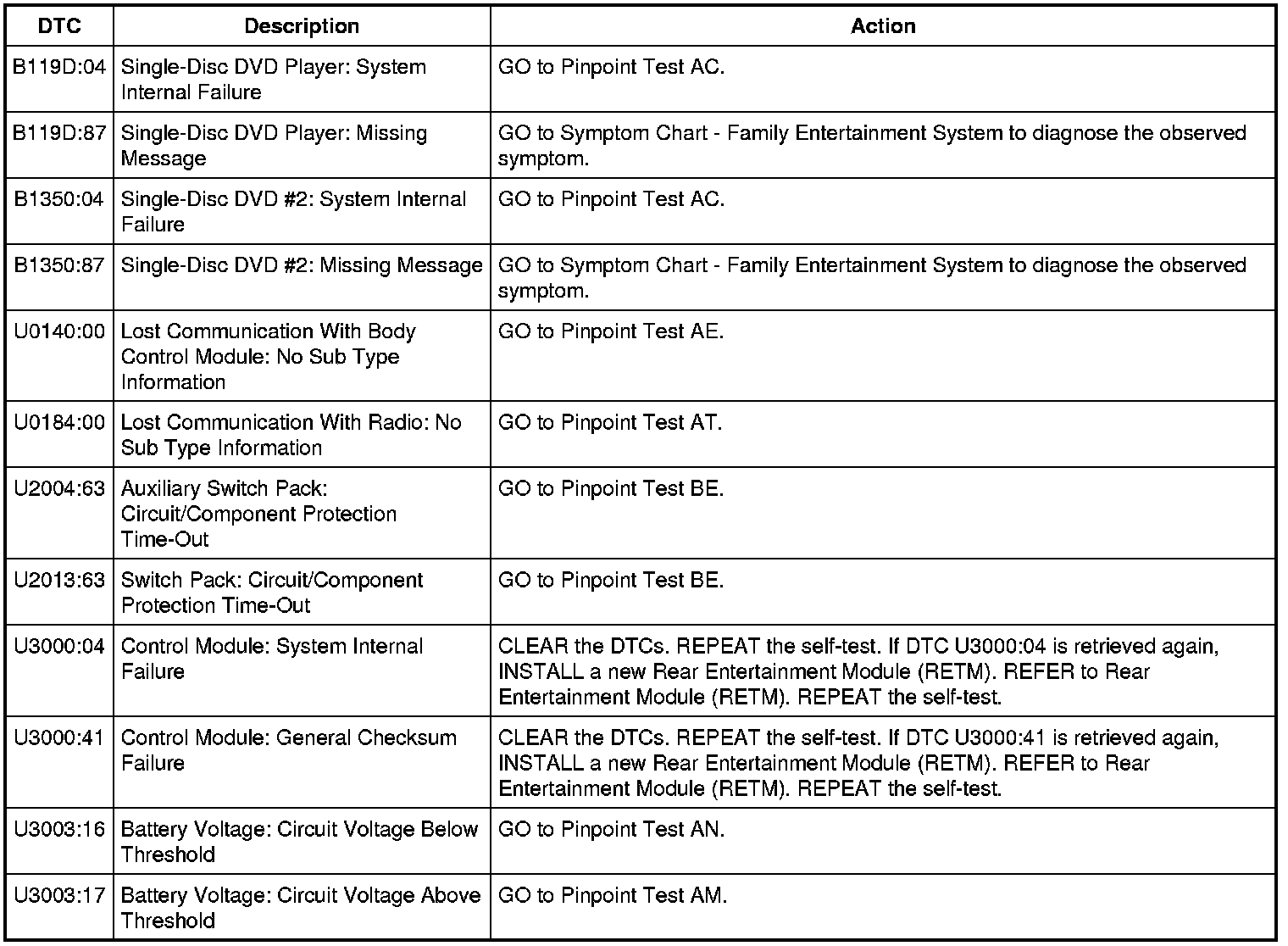

Rear Entertainment Module (RETM) DTC Chart

NOTE: This module utilizes a 5-character DTC followed by a 2-character failure-type code. The failure-type code provides information about specific fault conditions such as opens, or shorts to ground. Continuous memory DTCs have an additional 2-character DTC status code suffix to assist in determining DTC history.

NOTE: Turn the DVD player screens on before retrieving the DTCs. If DTCs are retrieved with the DVD player screens off, the DTCs do not appear as active on the scan tool.
