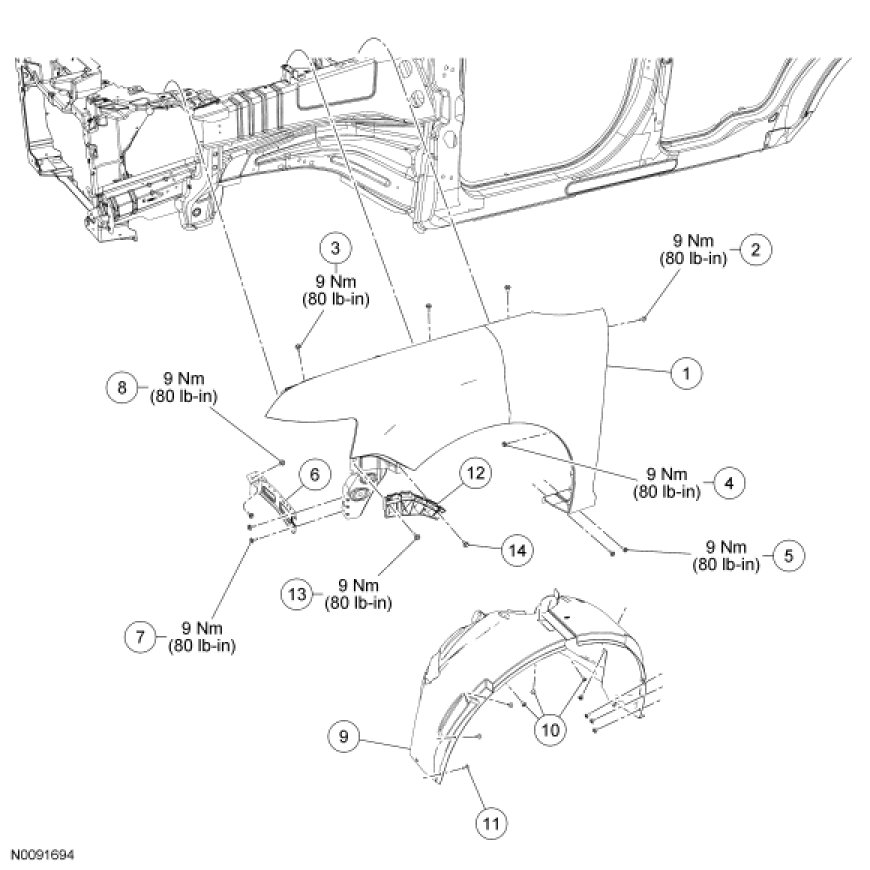

Front End Body Panels - Exploded View

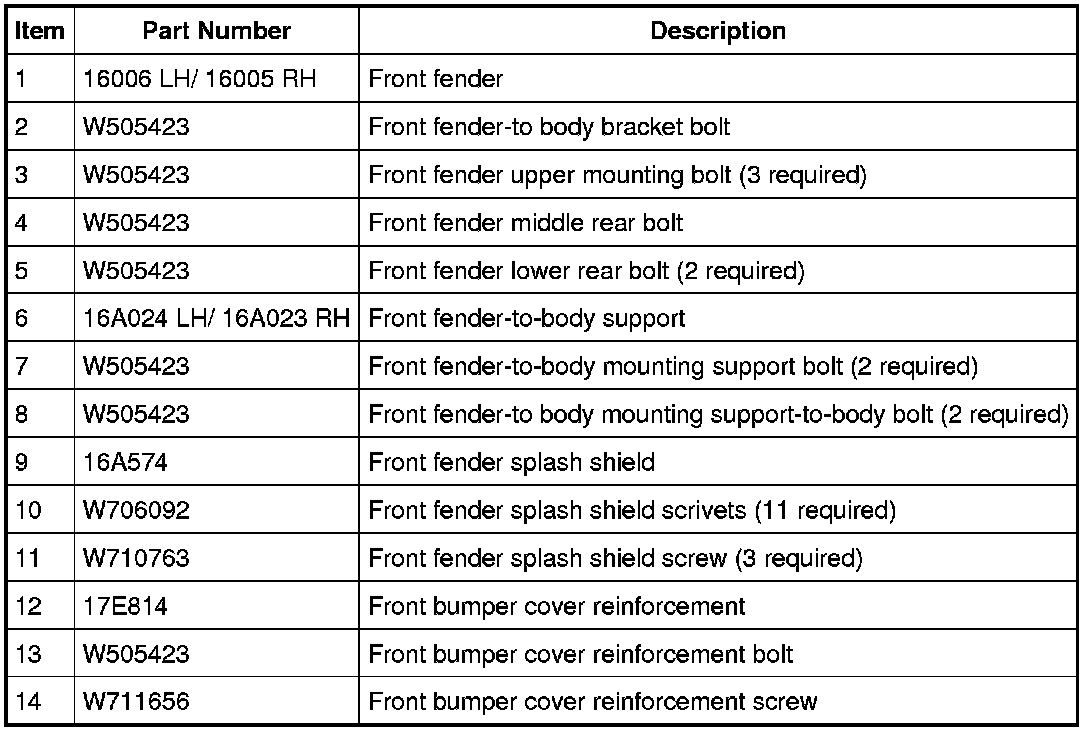

Front End Body Panels - Exploded View
Front End Body Panels - Exploded View
NOTE:
LH shown, RH similar.
