Seat Backrest - Second Row, 40 Percent

Seat Backrest - Second Row, 40 Percent

Disassembly and Assembly

Quad Bucket and 40 Percent Backrest

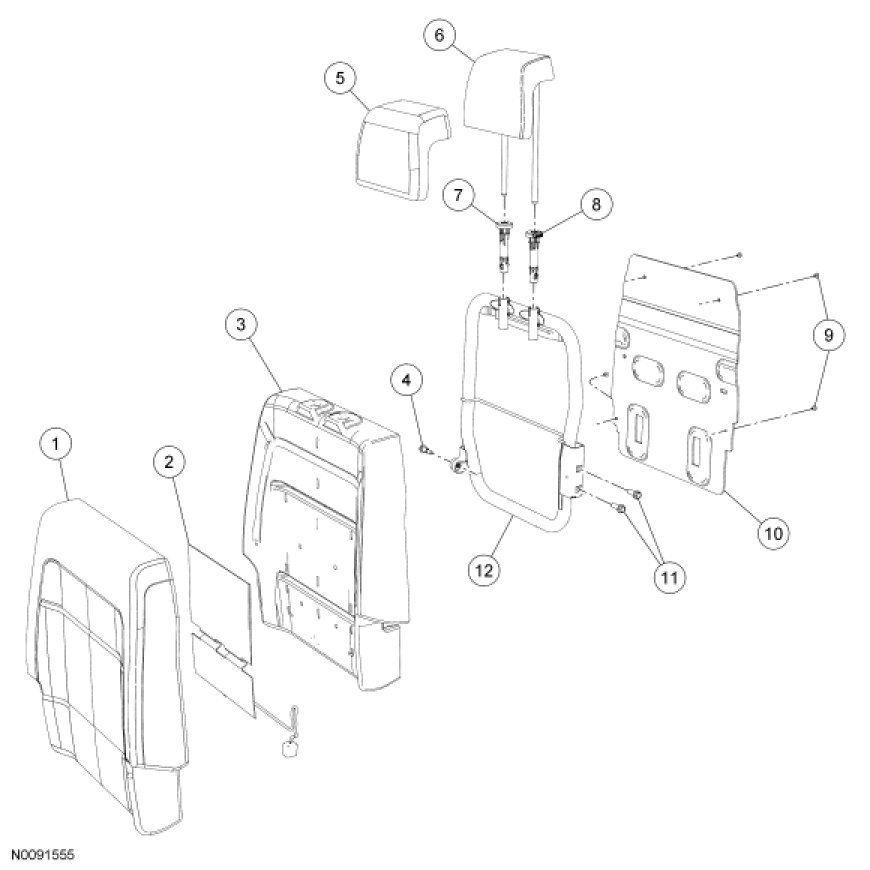

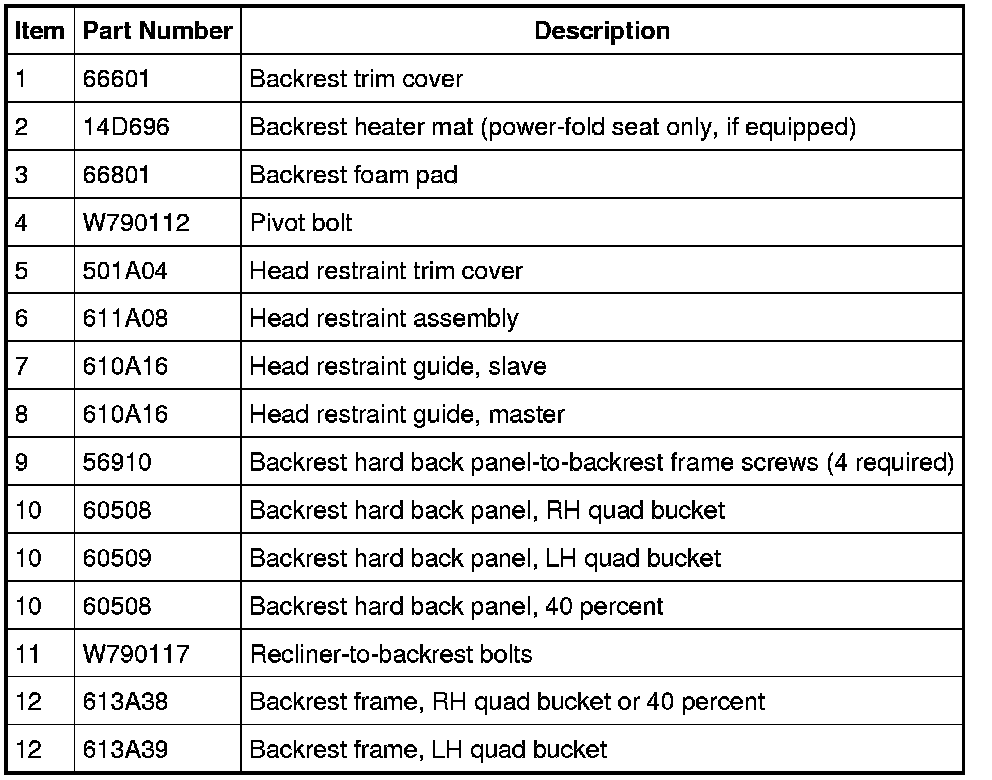

NOTE: LH shown, RH similar.











1. Remove the seat. For additional information, refer to Seat - Second Row Seat - Second Row.

2. Remove the seat backrest. For additional information, refer to Seat Backrest - Second Row, 40 Percent Seat Backrest - Second Row, 40 Percent.

3. Remove the head restraint assembly.

4. NOTICE: Use care when separating the seat backrest trim cover from the hook-and-loop strip, or the hook-and-loop strip may be torn from the seat backrest foam.

Release the hook-and-loop strips, invert the backrest trim cover, remove the 2 rows of hog rings and invert to the top of the backrest frame.

- If equipped, route the heated seat wire harness around the backrest trim cover.

5. Remove 4 screws and the backrest hard back panel.

6. NOTE: The head restraint guides are not interchangeable.

Squeeze the tabs in and remove the 2 head restraint guides.

7. Remove the backrest trim cover.

8. NOTE: Always install a new backrest foam pad and new backrest heater mat together.

Remove the backrest foam pad.

- If equipped, note heater mat wiring harness routing for installation.

9. To assemble, reverse the disassembly procedure.
