Cabin Temperature Sensor / Switch
>>

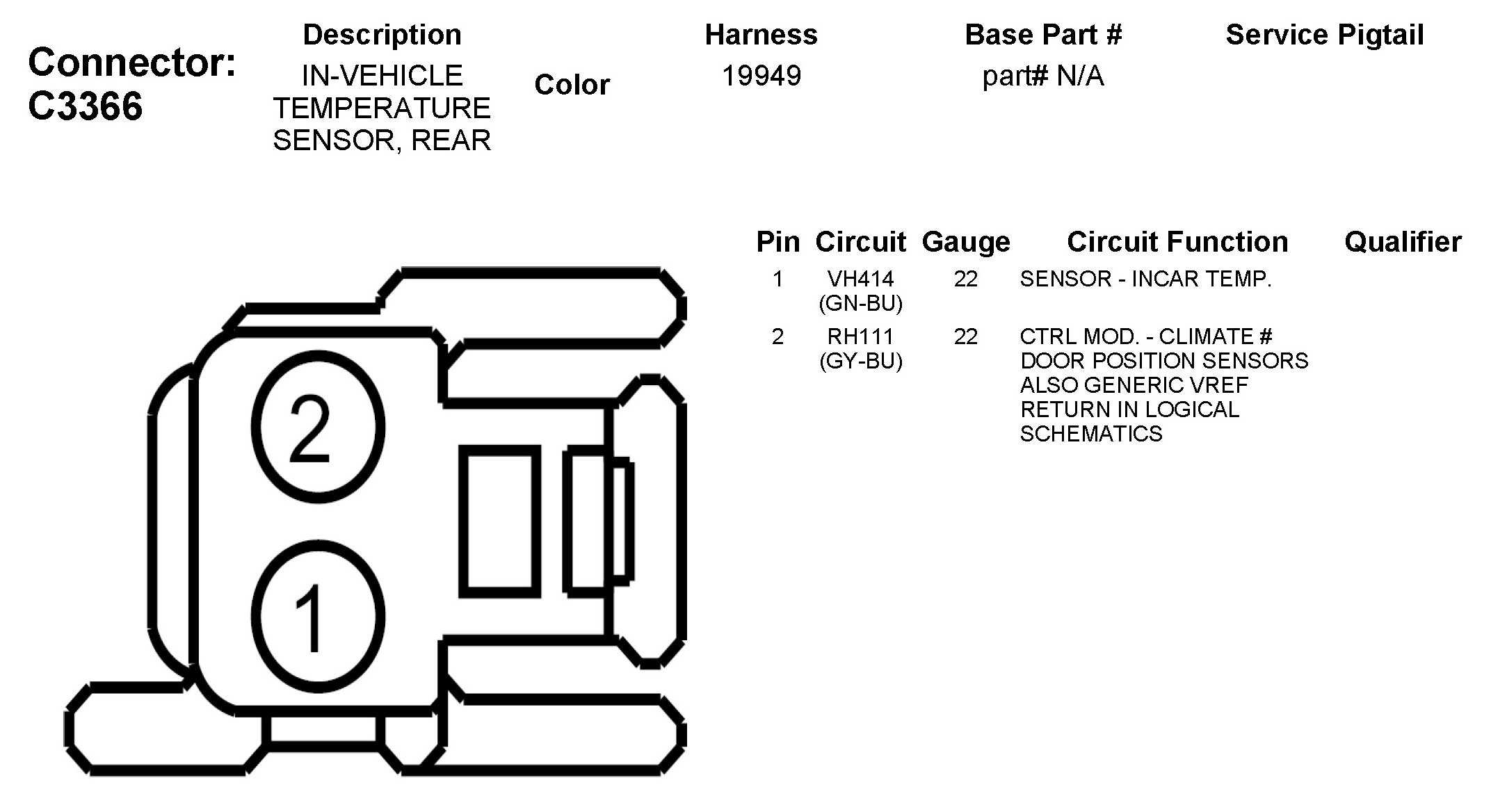

C3366 In-Vehicle Temperature Sensor, Rear
C3366 In-Vehicle Temperature Sensor, Rear
