Home
>>
Ford
>>
2011
>>
Flex AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

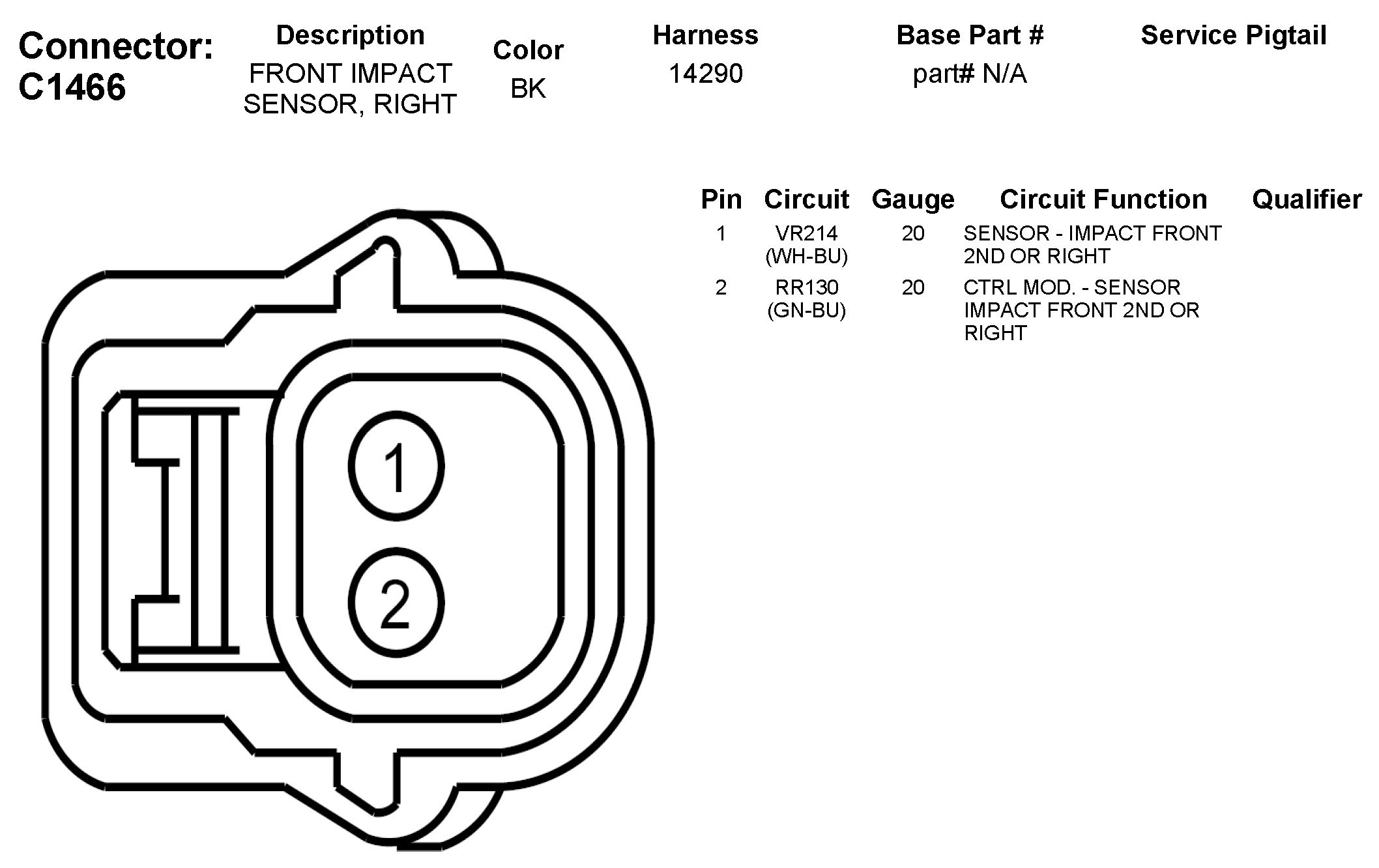

C1466 Front Impact Sensor, Right
C1466 Front Impact Sensor, Right
