Seat Cover




Seat - Exploded View, Front

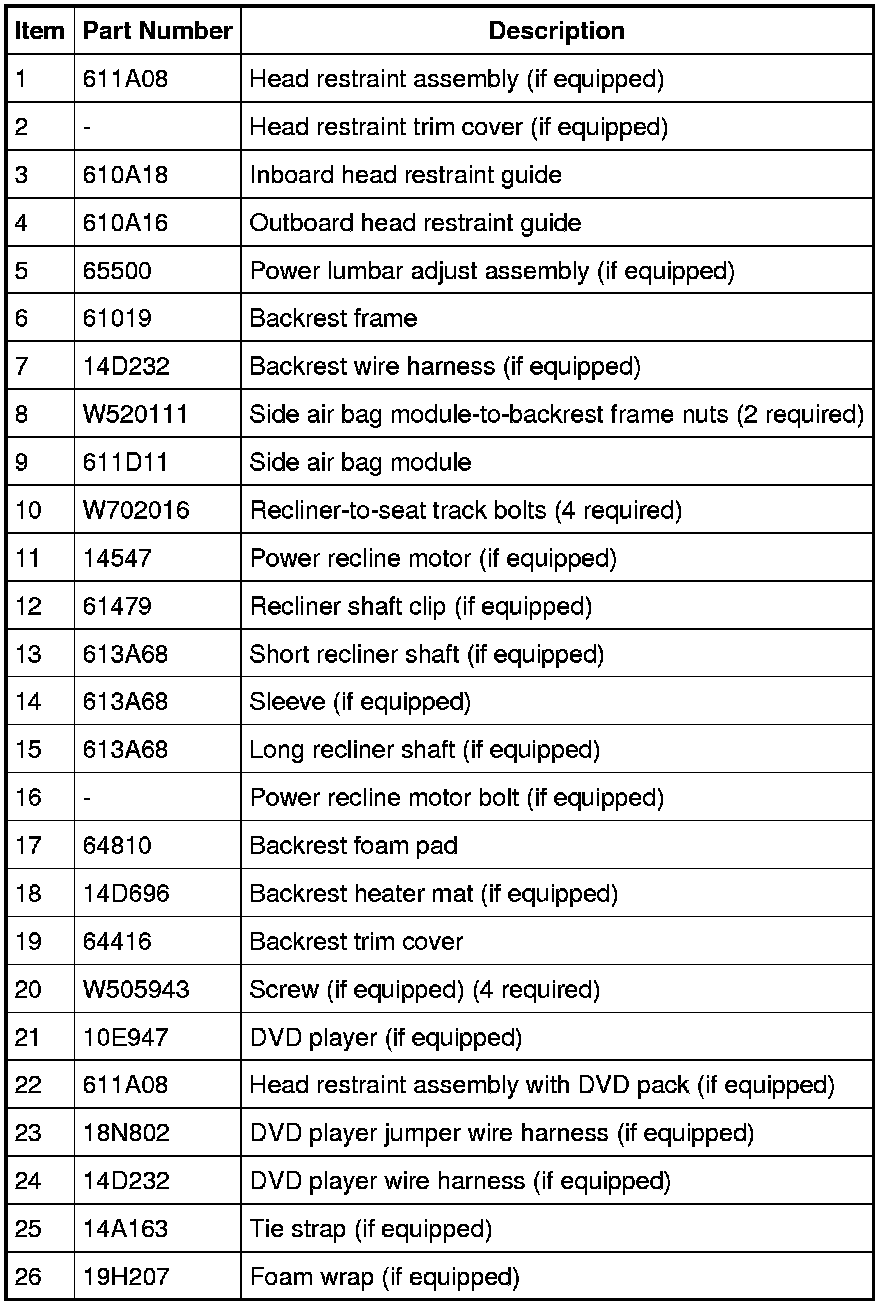

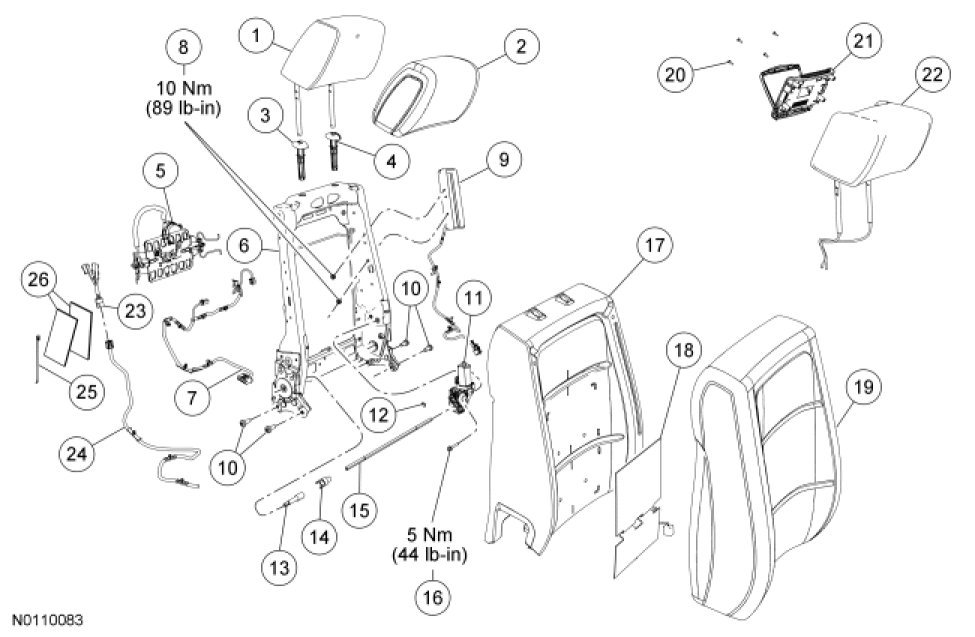

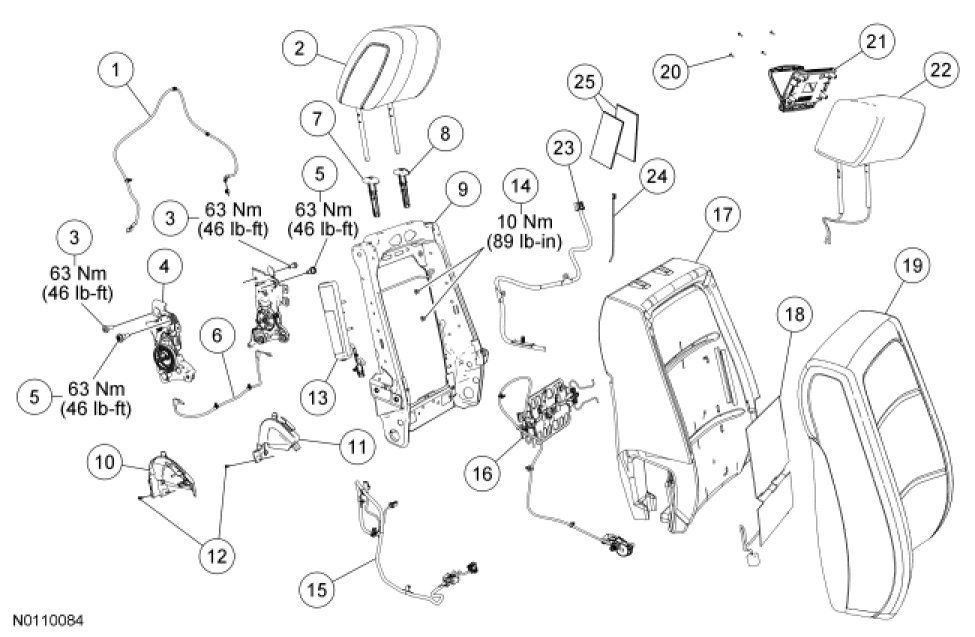

Driver Seat Backrest With Power Recline

NOTE: Refer to Seat Backrest - Front, Without Fold Flat Seat Backrest - Front, Without Fold Flat for recliner-to-seat track bolt tightening sequence and torque specification.

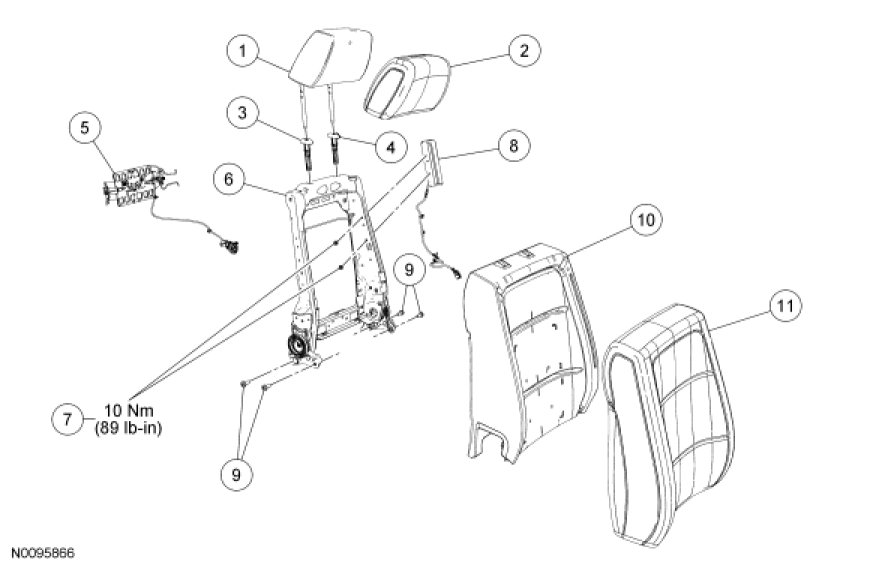

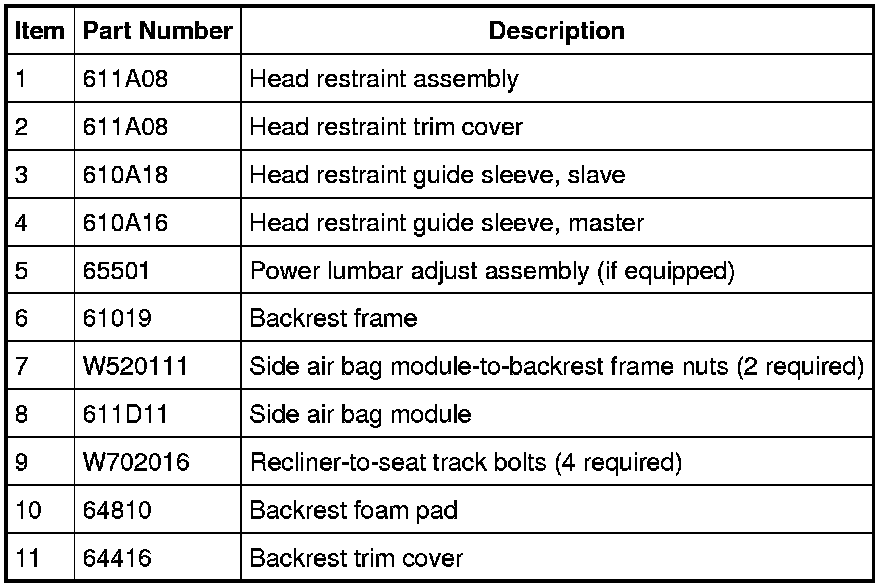

Driver Seat Backrest Without Power Recline

NOTE: Refer to Seat Backrest - Front, Without Fold Flat Seat Backrest - Front, Without Fold Flat for recliner-to-seat track bolt tightening sequence and torque specification.

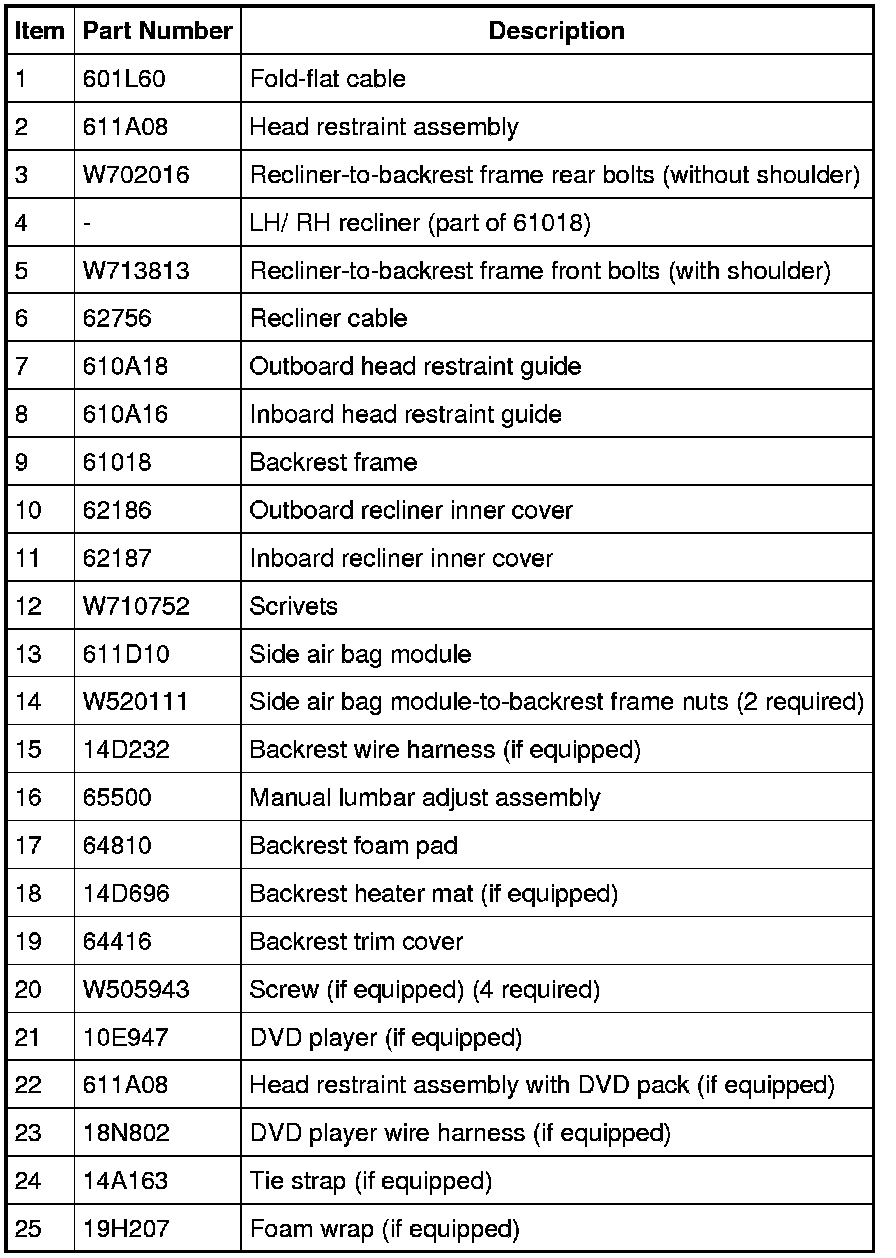

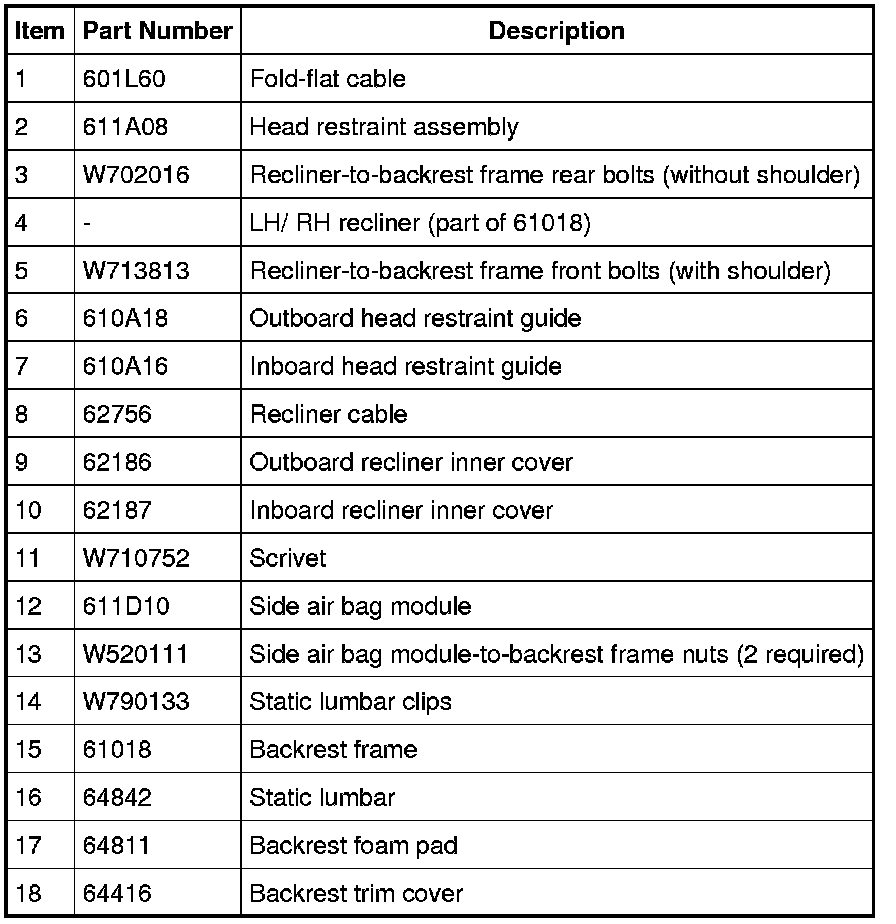

Passenger Seat Backrest With Power Seat Track









Passenger Seat Backrest With Manual Seat Track

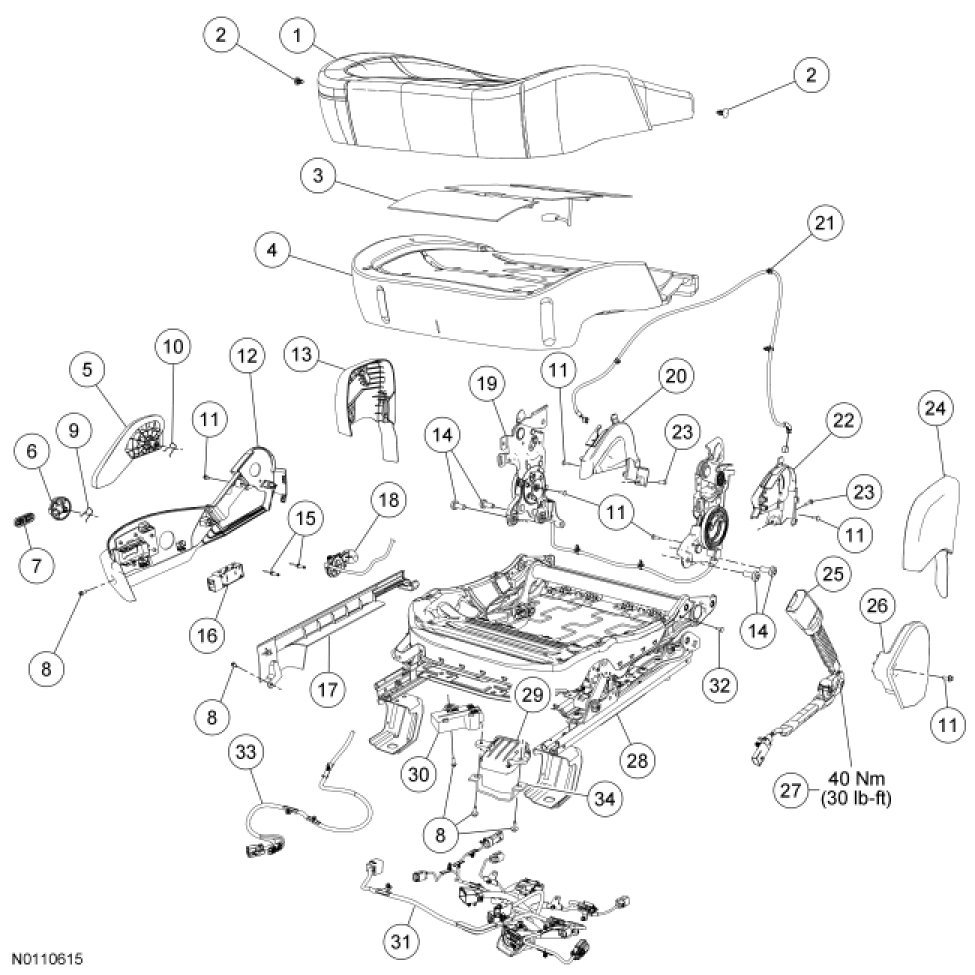

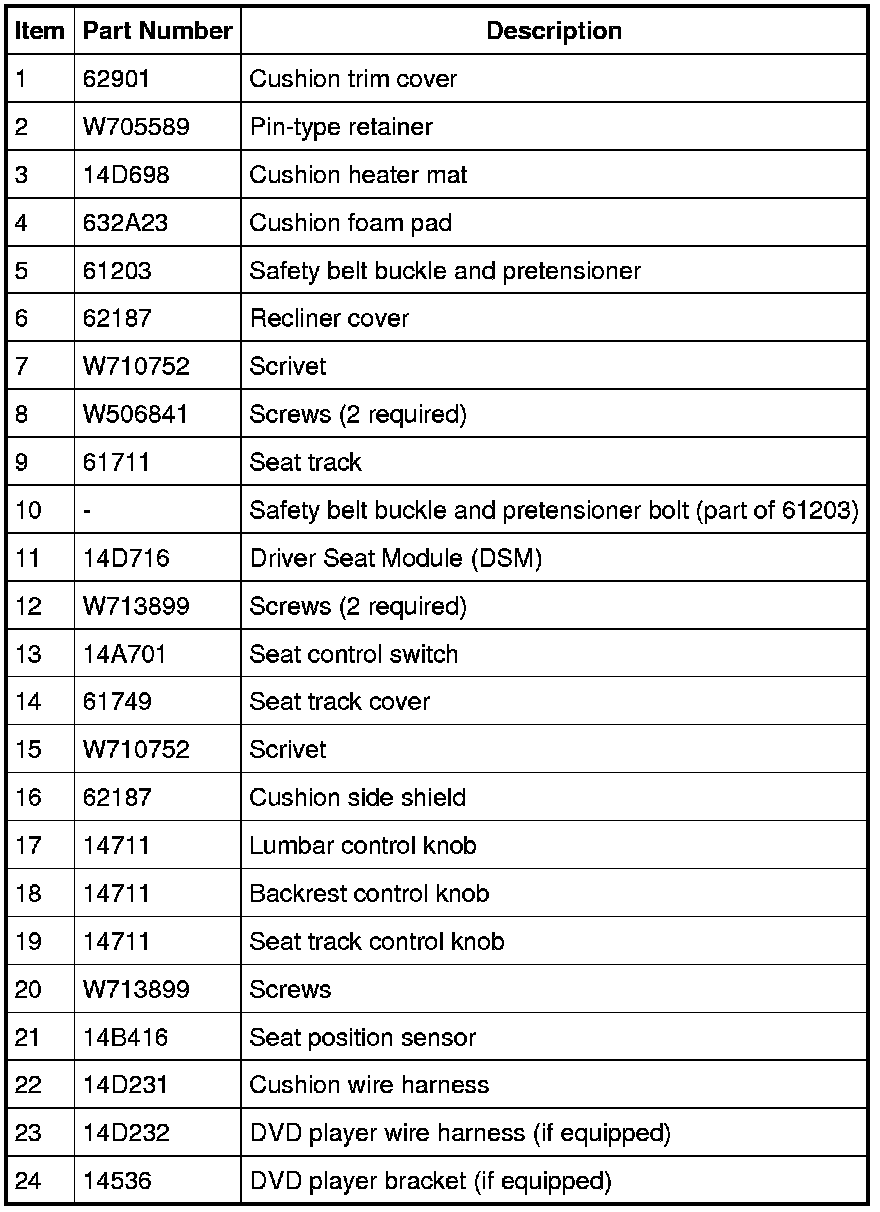

Driver Seat Cushion With Power Recline

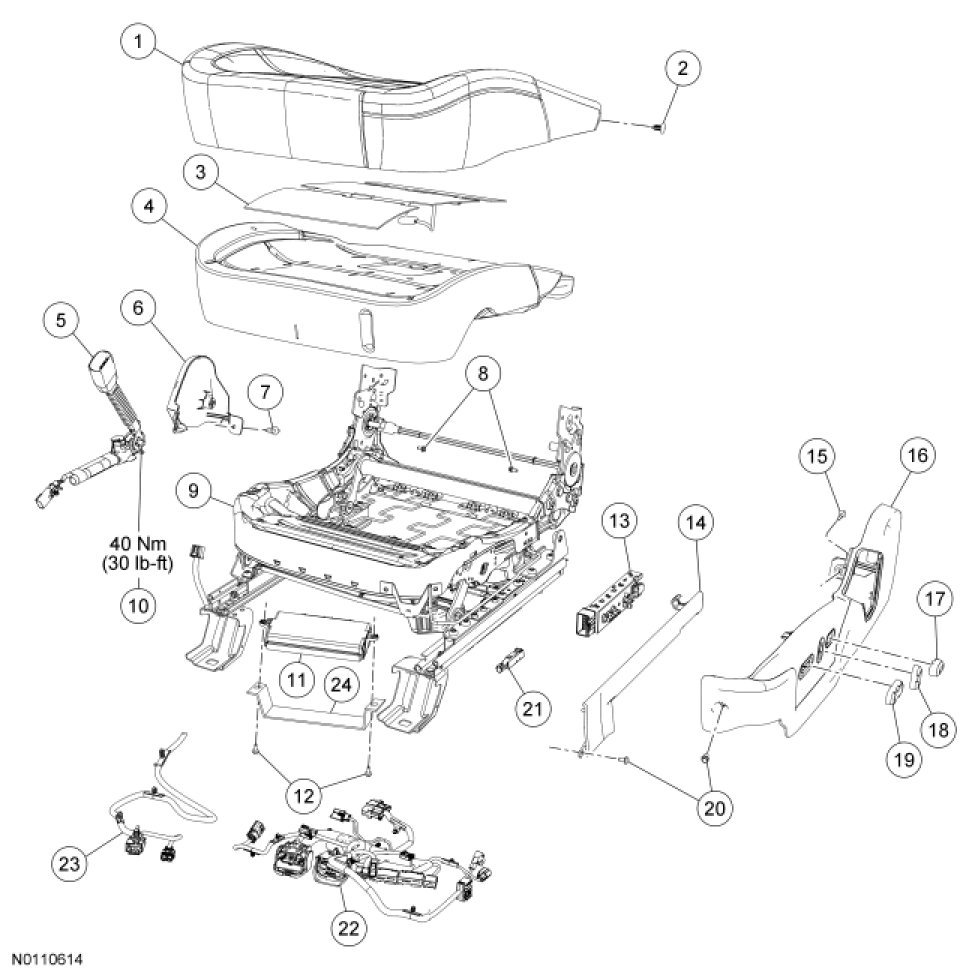

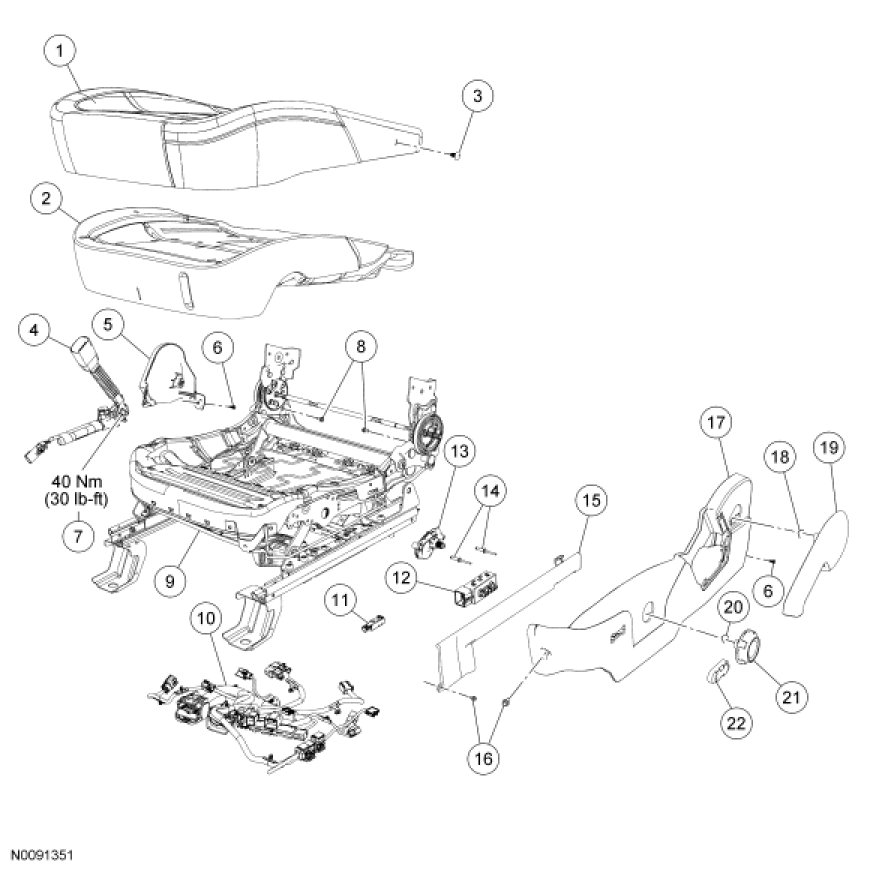

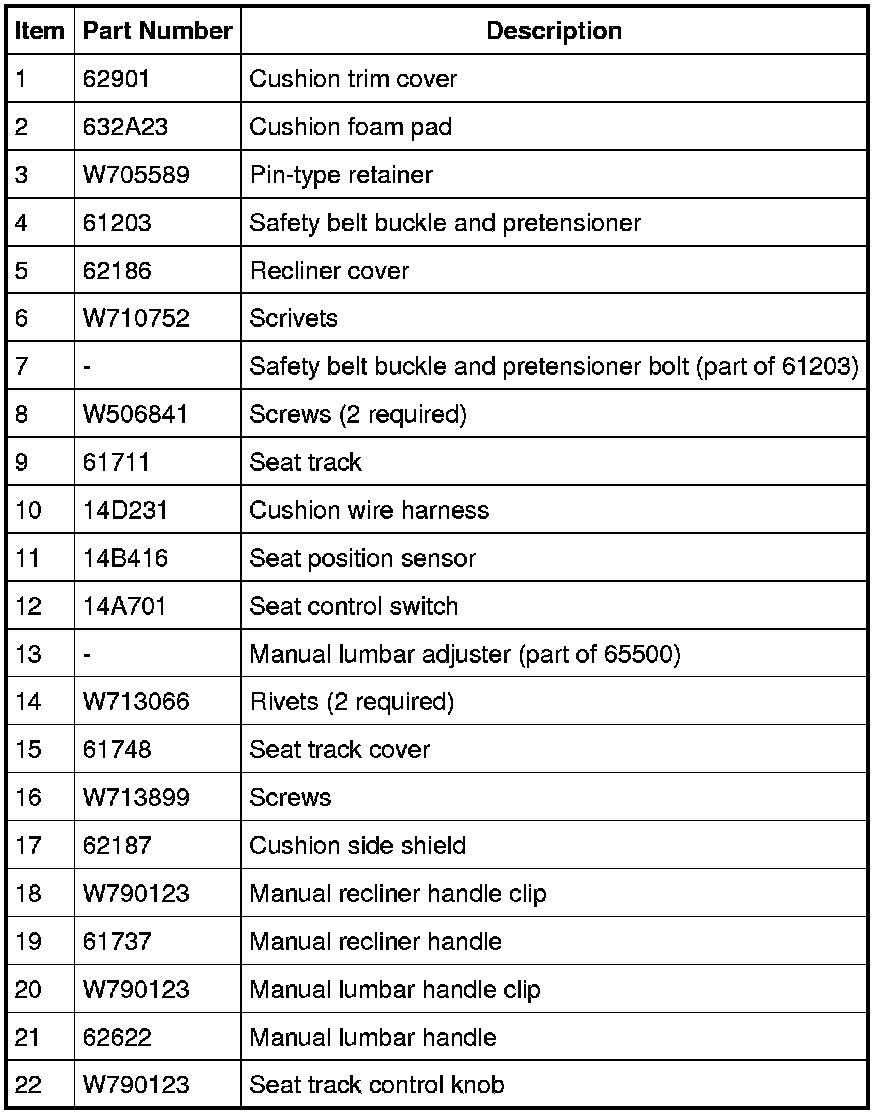

Driver Power Seat Cushion With Manual Recline









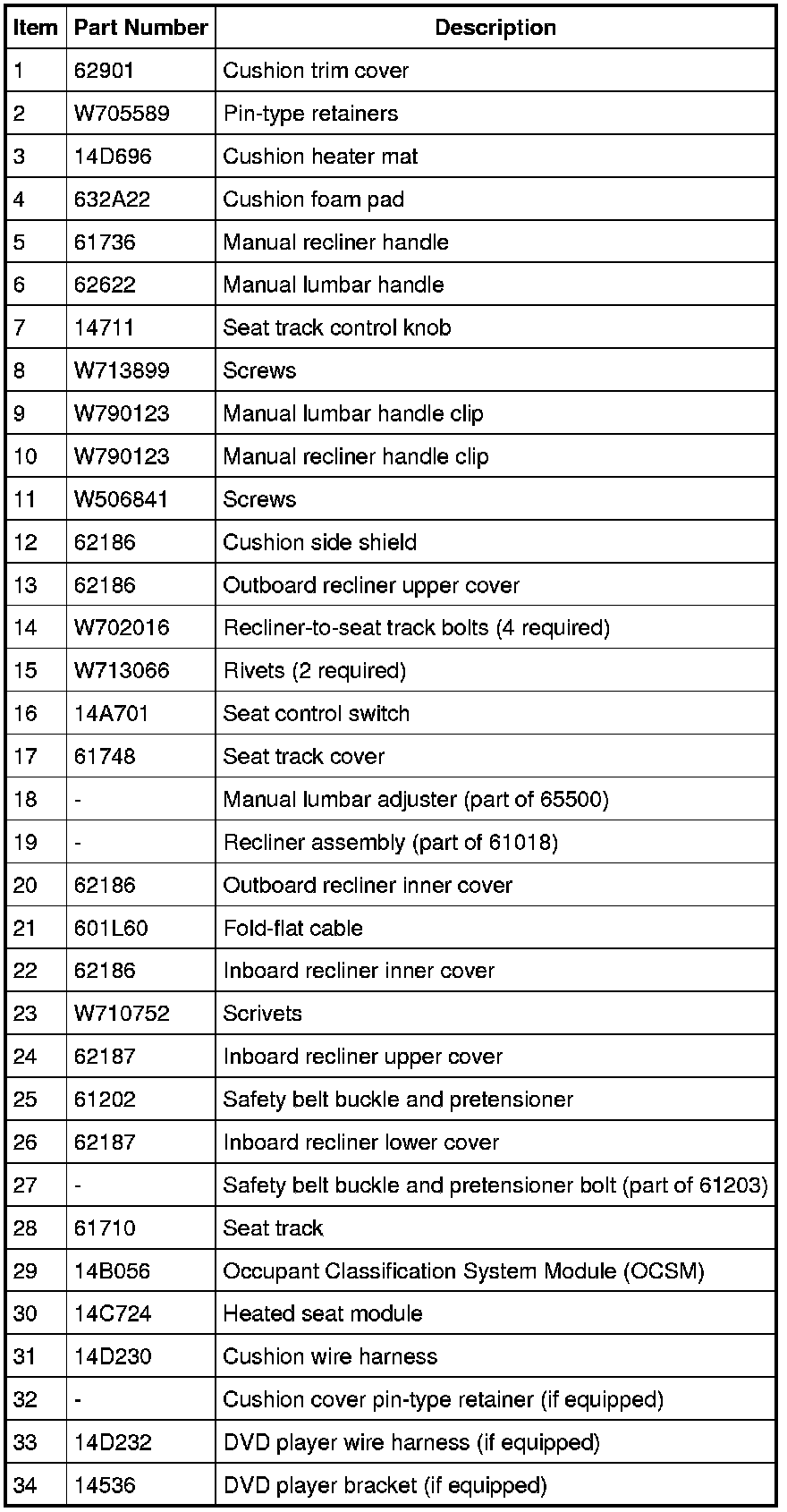

Passenger Seat Cushion With Power Seat Track

NOTE: Refer to Seat Backrest - Front, With Fold Flat Seat Backrest - Front, With Fold Flat for recliner-to-seat track bolt tightening sequence and torque specification.

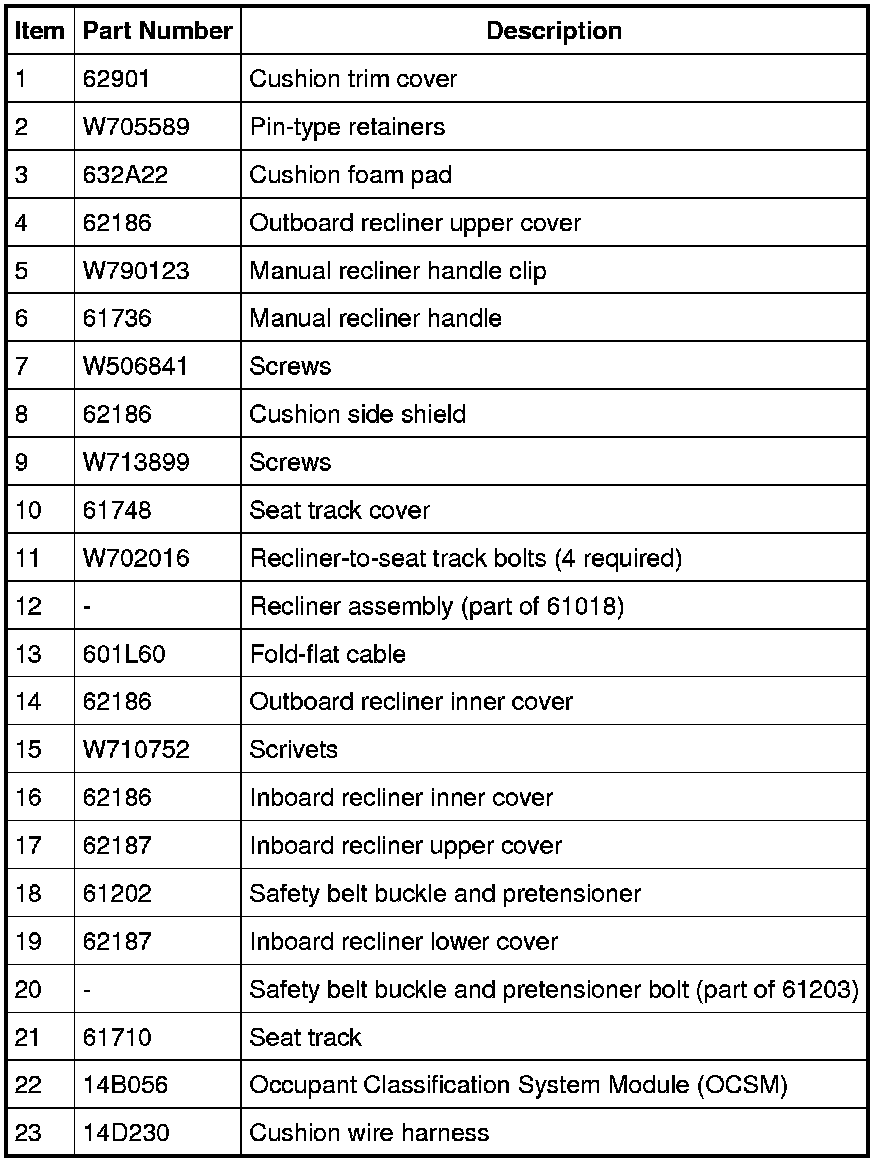

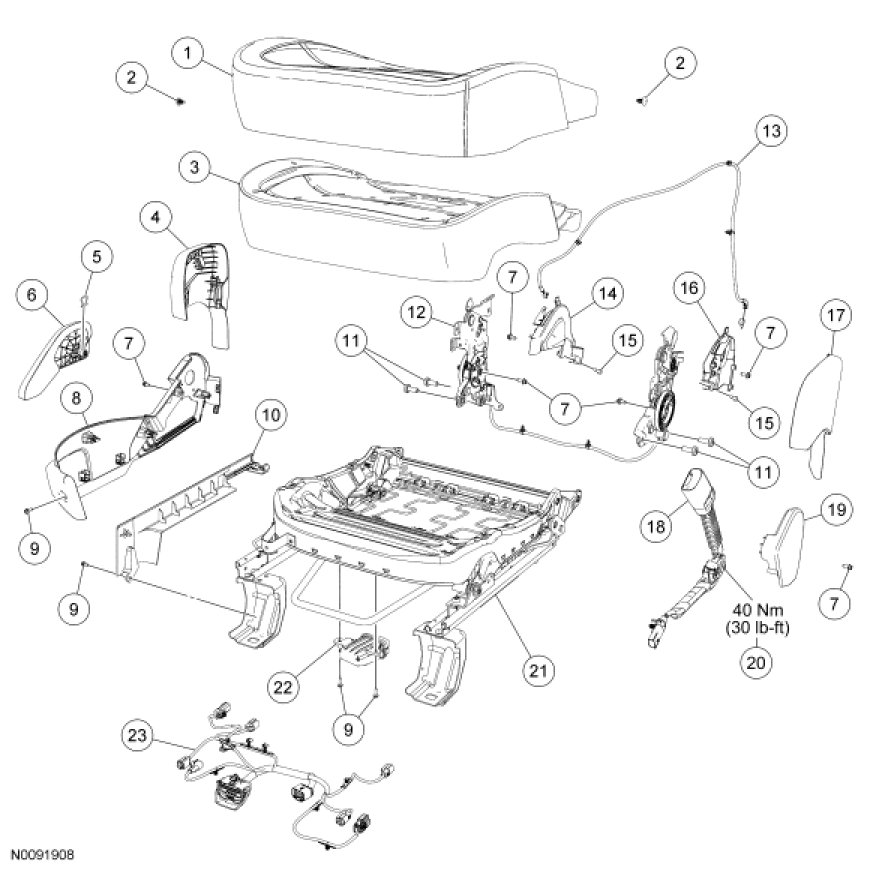

Passenger Seat Cushion With Manual Seat Track

NOTE: Refer to Seat Backrest - Front, With Fold Flat Seat Backrest - Front, With Fold Flat for recliner-to-seat track bolt tightening sequence and torque specification.
