Backup Lamp: Service and Repair

Rear Lamp Assembly









Removal and Installation

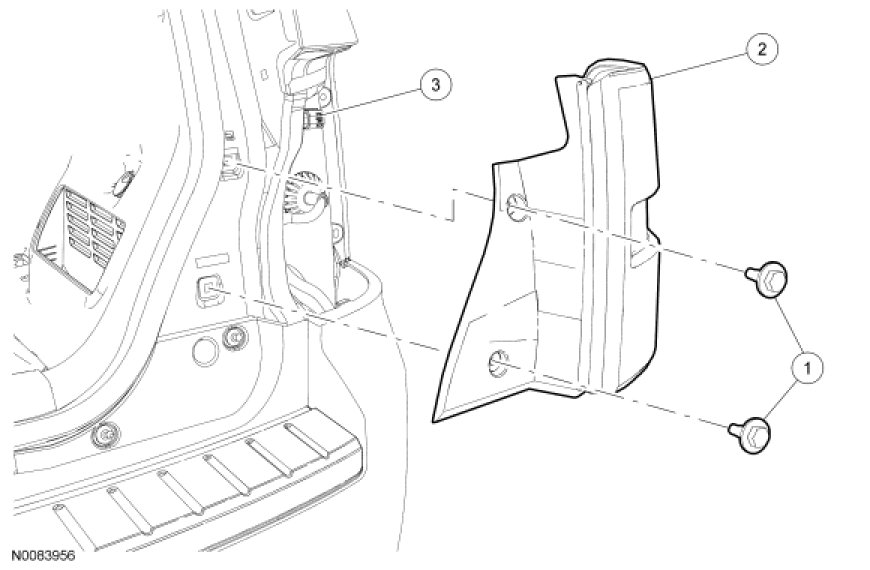

1. NOTE: The rear lamp assembly is held in place by snap-type retainers. The lamp should be pulled straight and rearward to remove.

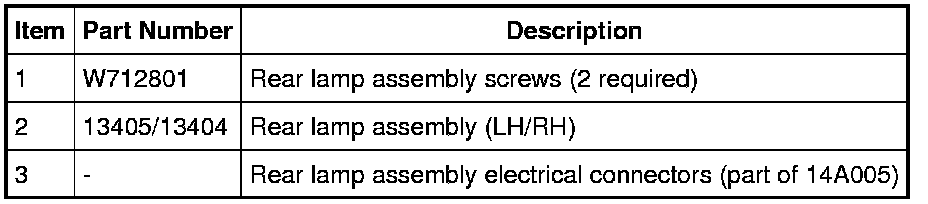

Remove the 2 screws and the rear lamp assembly.

- Disconnect the electrical connectors and separate the bulb holders from the rear lamp assembly.

2. To install, reverse the removal procedure.
