Pinpoint Test A: Both High Beams Are Inoperative
Headlamps
Pinpoint Tests
Pinpoint Test A: Both High Beams Are Inoperative
Refer to Wiring Diagram Set 85, Headlamps/Autolamps for schematic and connector information. Diagrams By Number
Normal Operation
When the headlamp switch is placed in the HEADLAMPS ON position, the Smart Junction Box (SJB) monitors the high beam request circuit from the multifunction switch. When the multifunction switch is placed in the HIGH BEAM position, the signal is routed to ground. The SJB then energizes the high beam relay (integrated into the SJB) which supplies voltage to the headlamps.
This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- Multifunction switch
- SJB
PINPOINT TEST A: BOTH HIGH BEAMS ARE INOPERATIVE
NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
-------------------------------------------------
A1 CHECK THE HIGH BEAM INDICATOR
- Ignition ON.
- Place the headlamp switch in the HEADLAMPS ON position.
- Place the multifunction switch in the HIGH BEAM position.
- Does the high beam indicator illuminate?
Yes
VERIFY the SJB fuse 23 (15A) is OK. If OK, GO to A5. If not OK, REFER to the Wiring Diagrams to identify the possible causes of the circuit short. Diagrams By Number
No
GO to A2.
-------------------------------------------------
A2 CHECK FOR VOLTAGE TO THE MULTIFUNCTION SWITCH
- Place the headlamp switch in the OFF position.
- Disconnect: Multifunction Switch C202.

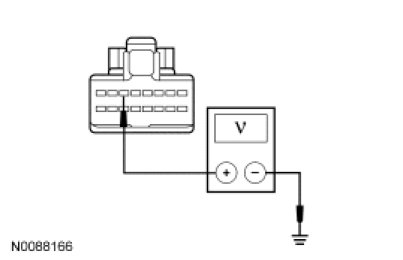

- Measure the voltage between the multifunction switch C202-6, circuit CLF17 (WH/OG), harness side and ground.
- Is the voltage greater than 10 volts?
Yes
GO to A3.
No
GO to A4.
-------------------------------------------------
A3 BYPASS THE MULTIFUNCTION SWITCH

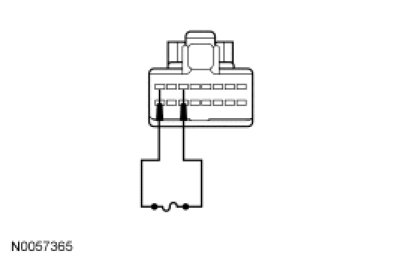

- Connect a fused jumper wire between the multifunction switch C202-6, circuit CLF17 (WH/OG), harness side and the multifunction switch C202-8, circuit GD114 (BK/BU), harness side.
- Place the headlamp switch in the HEADLAMPS ON position.
- Do the high beams illuminate?
Yes
REMOVE the jumper wire. INSTALL a new multifunction switch. REFER to Steering Column Switches Steering Column Multifunction Switch. TEST the system for normal operation.
No
REMOVE the jumper wire. REPAIR circuit GD114 (BK/BU) for an open. TEST the system for normal operation.
-------------------------------------------------
A4 CHECK THE HIGH BEAM REQUEST INPUT CIRCUIT FOR AN OPEN
- Disconnect: SJB C2280b.

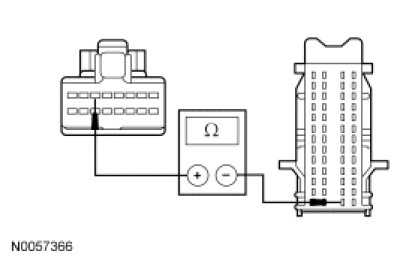

- Measure the resistance between the multifunction switch C202-6, circuit CLF17 (WH/OG), harness side and the SJB C2280b-27, circuit CLF17 (WH/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to A6.
No
REPAIR circuit CLF17 (WH/OG) for an open. TEST the system for normal operation.
-------------------------------------------------
A5 CHECK THE SJB HIGH BEAM OUTPUT CIRCUIT FOR AN OPEN
- Ignition OFF.
- Disconnect: SJB C2280e.
- NOTE: For vehicles with High Intensity Discharge (HID) headlamps, an assistant may be required to listen for the high beam shutters activating in this step.

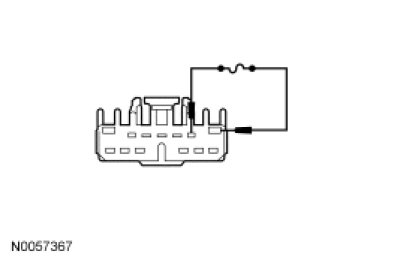

- Connect a fused jumper wire between the SJB C2280e-1, circuit CDC34 (WH/OG), harness side and the SJB C2280e-2, circuit CLF08 (YE/VT), harness side.
- Ignition ON.
- Do the high beams illuminate (or the high beam shutters in the headlamps operate)?
Yes
GO to A6.
No
REPAIR circuit CLF08 (YE/VT) for an open. TEST the system for normal operation.
-------------------------------------------------
A6 CHECK FOR CORRECT SJB OPERATION
- Disconnect all the SJB connectors.
- Check for:
- corrosion
- damaged pins
- pushed-out pins
- Connect all the SJB connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
Yes
INSTALL a new SJB. REFER to Multifunction Electronic Modules Service and Repair. TEST the system for normal operation.
No
The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
-------------------------------------------------
