Seat Wire Harness Routing

Seat Wire Harness Routing

1. For correct front passenger seat cushion wire harness routing, refer to the following views.
- For power passenger seat track, match the numbers in the wire harness view to the numbers in the retainer and connector location views and attach accordingly.

- For manual passenger seat track, match the view to the seat track and wire harness being assembled and attach accordingly.

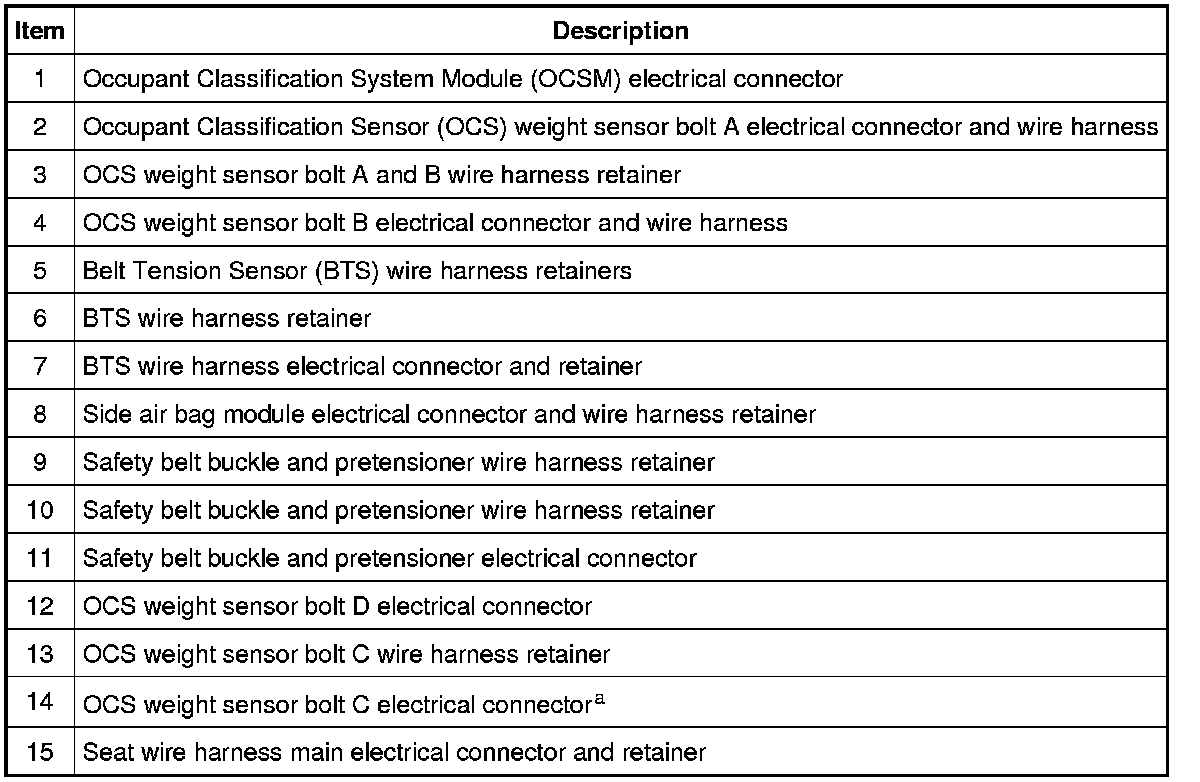

- Wire harness retainers and electrical connectors are called out in assembly order.

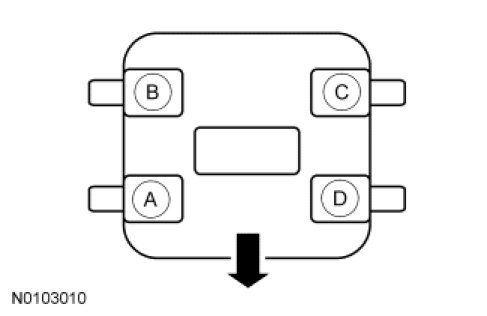

2. NOTE: Illustration shows Occupant Classification Sensor (OCS) weight sensor bolts in their installed position with the seat in the vehicle (arrow indicates front).

Verify the correct passenger seat OCS weight sensor bolt electrical connector positions using the illustration.

- For correct identification and placement of the 4 OCS weight sensor bolt electrical connectors, use the wire colors identified in the Wiring Diagrams. Connecting the incorrect connector to a sensor will cause DTCs to set and will result in an unsuccessful OCS System Reset.






Power Passenger Seat Track

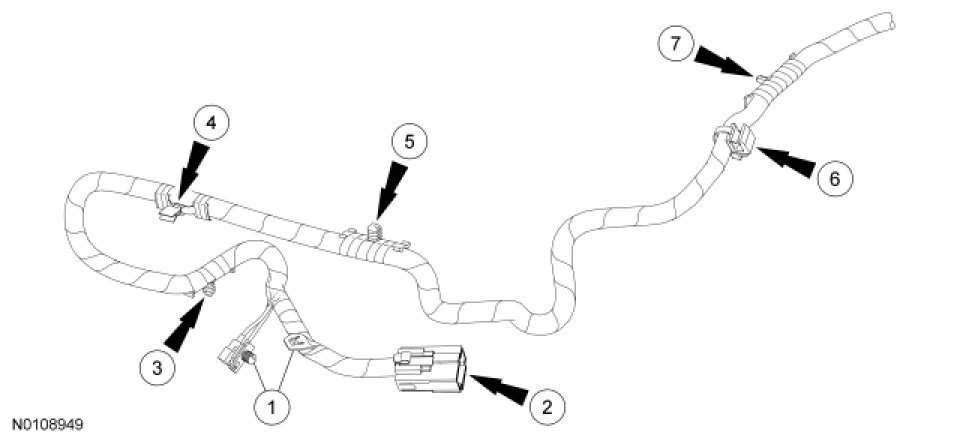

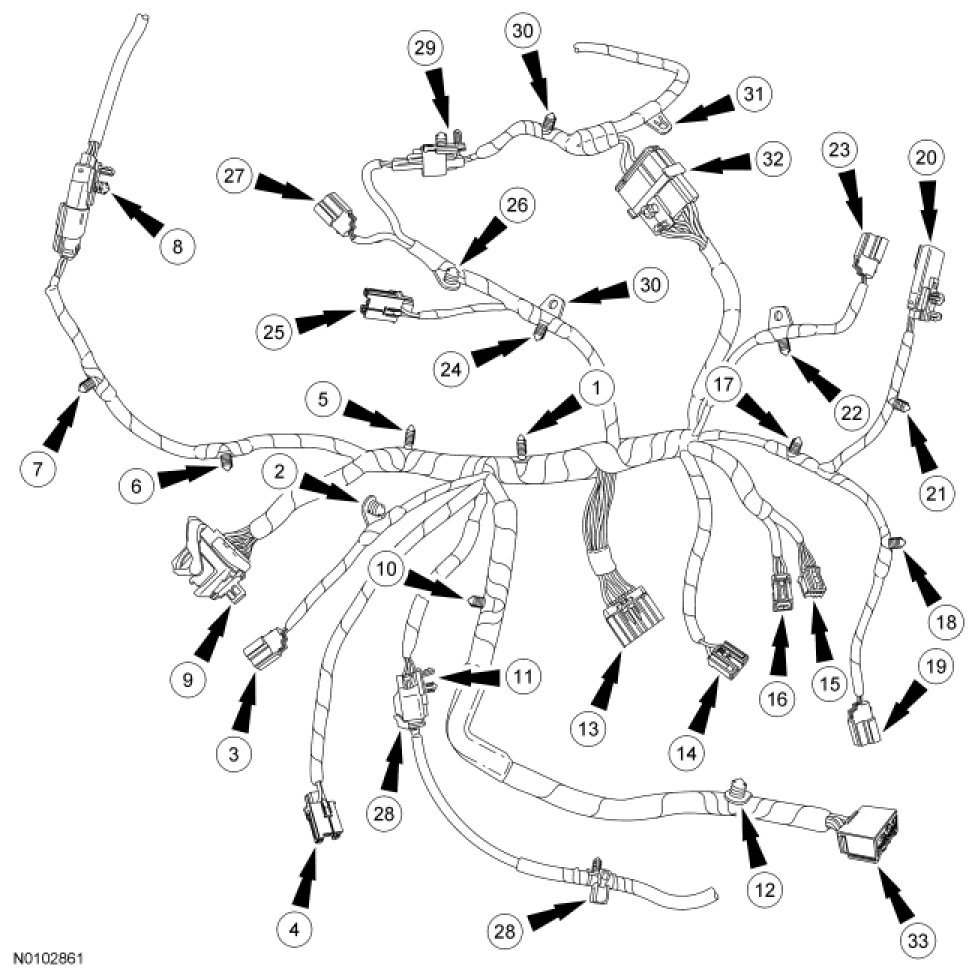

Wire Harness View

NOTE: Illustrations show wire harness with heat. If not equipped with heat option, skip heated seat numerical option content.










a Make sure the wire harness passes on the correct side as shown.

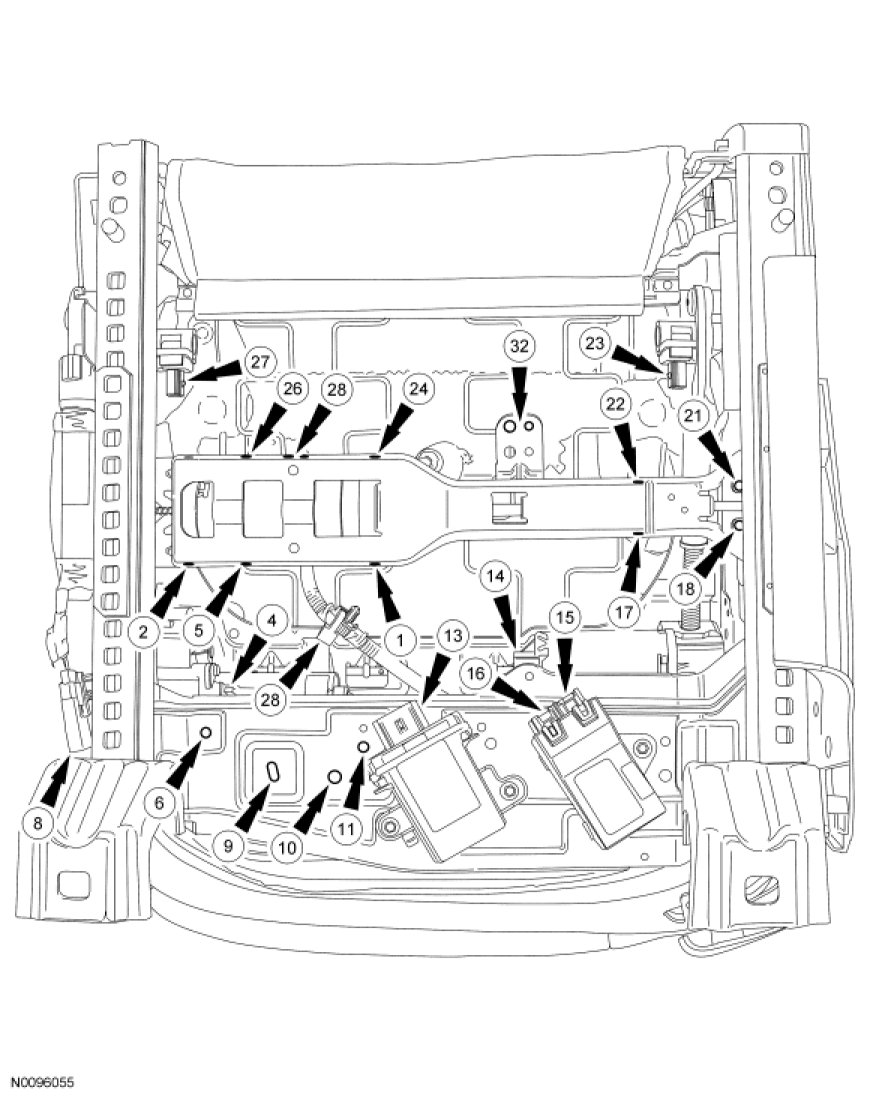

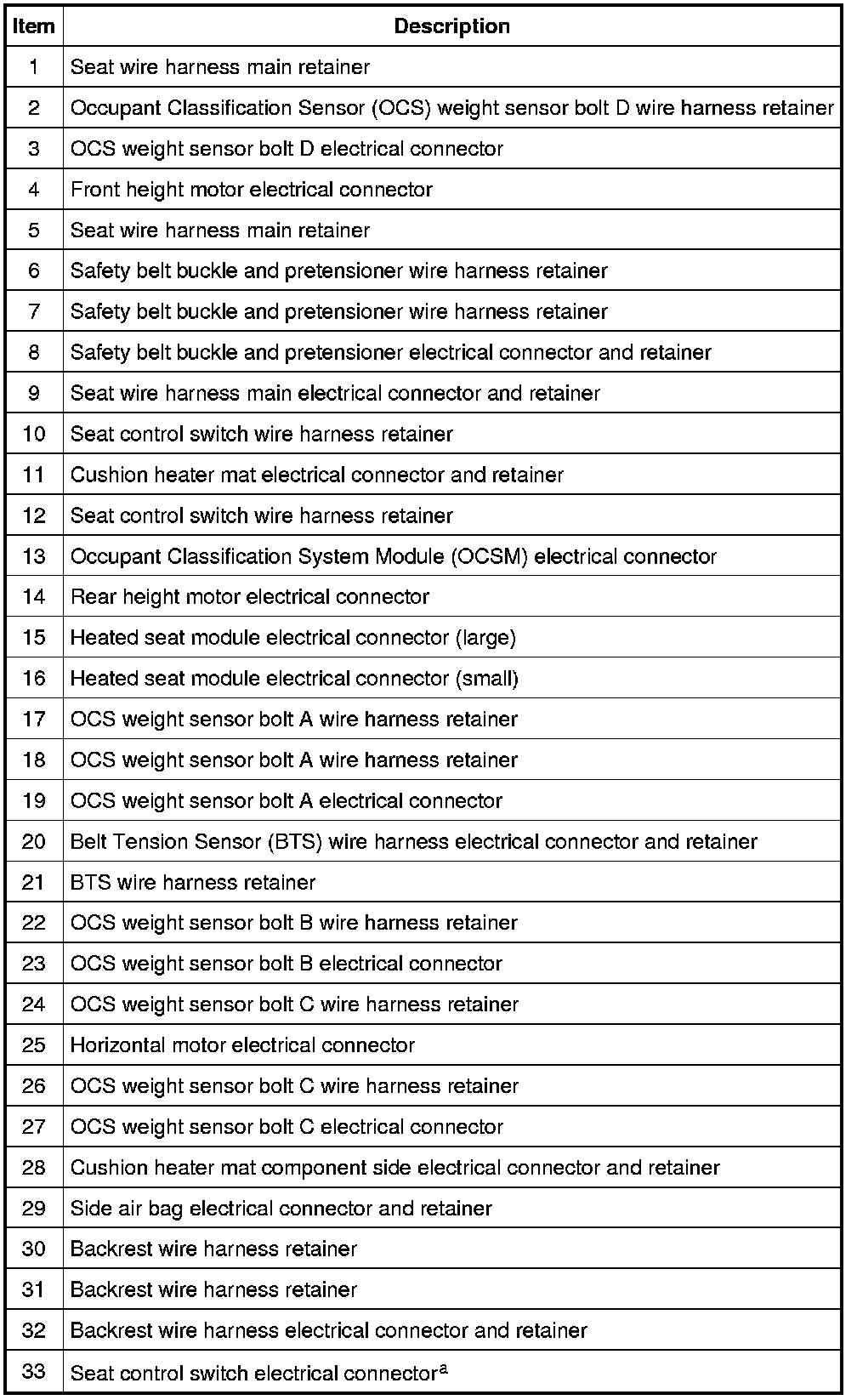

Wire Harness Retainer and Connector Location View

NOTE: See supporting views for missing numbers.

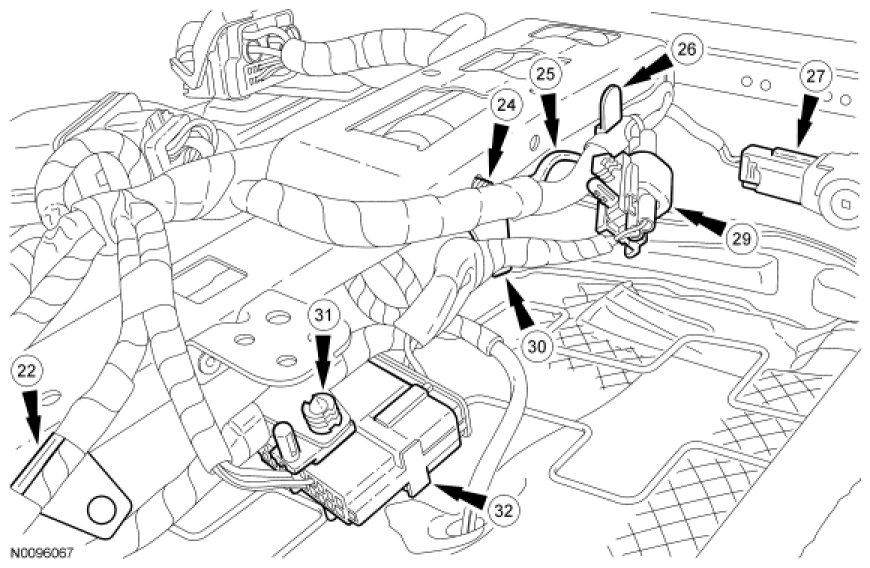

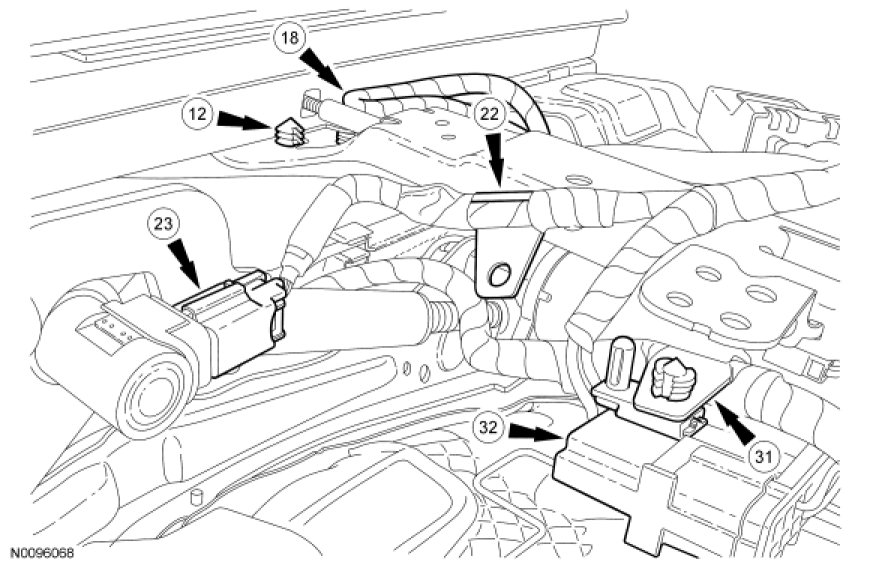

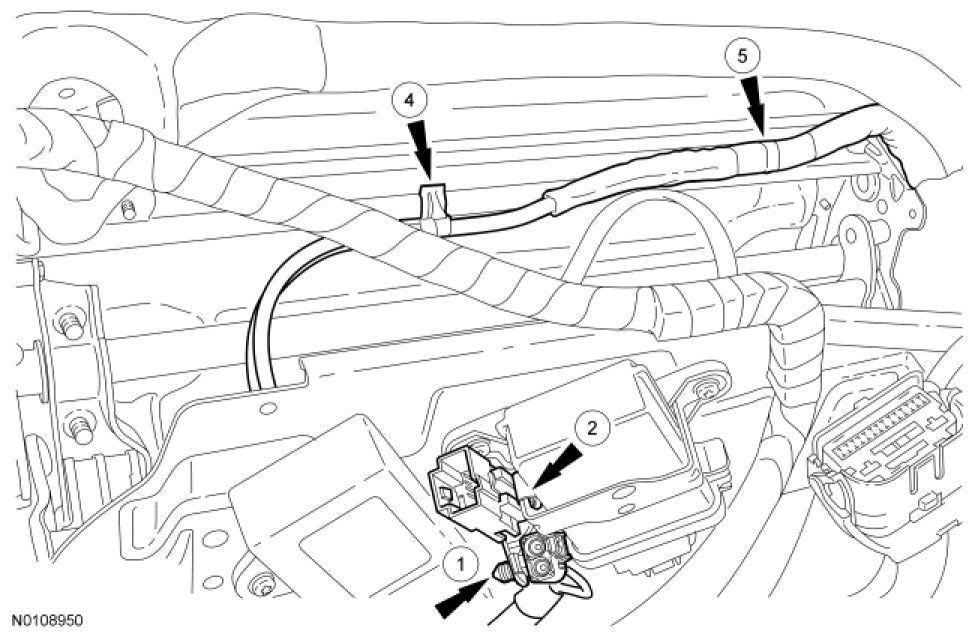

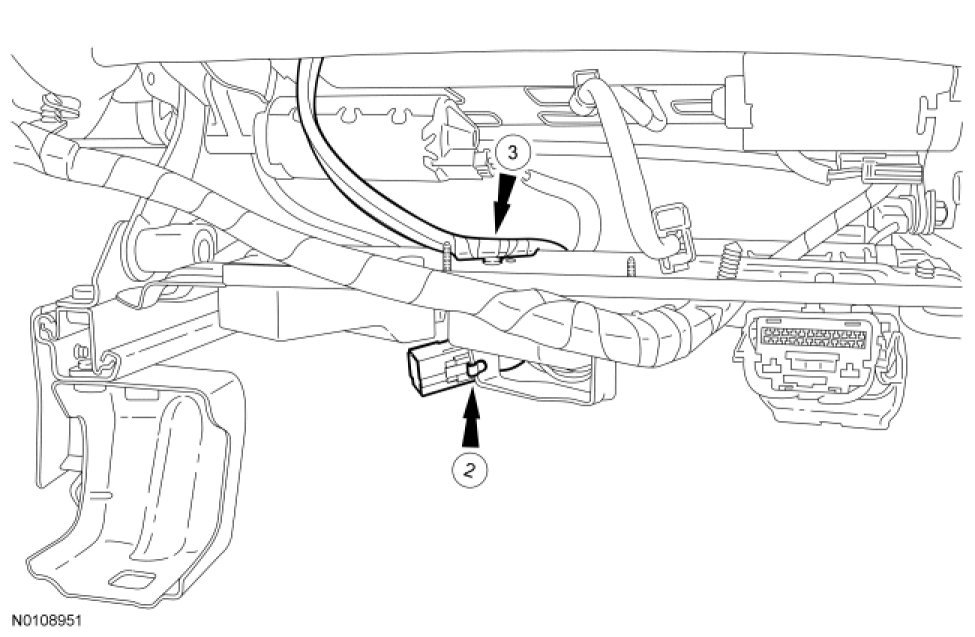

Retainer and Connector Location View, Outboard Side From Underneath

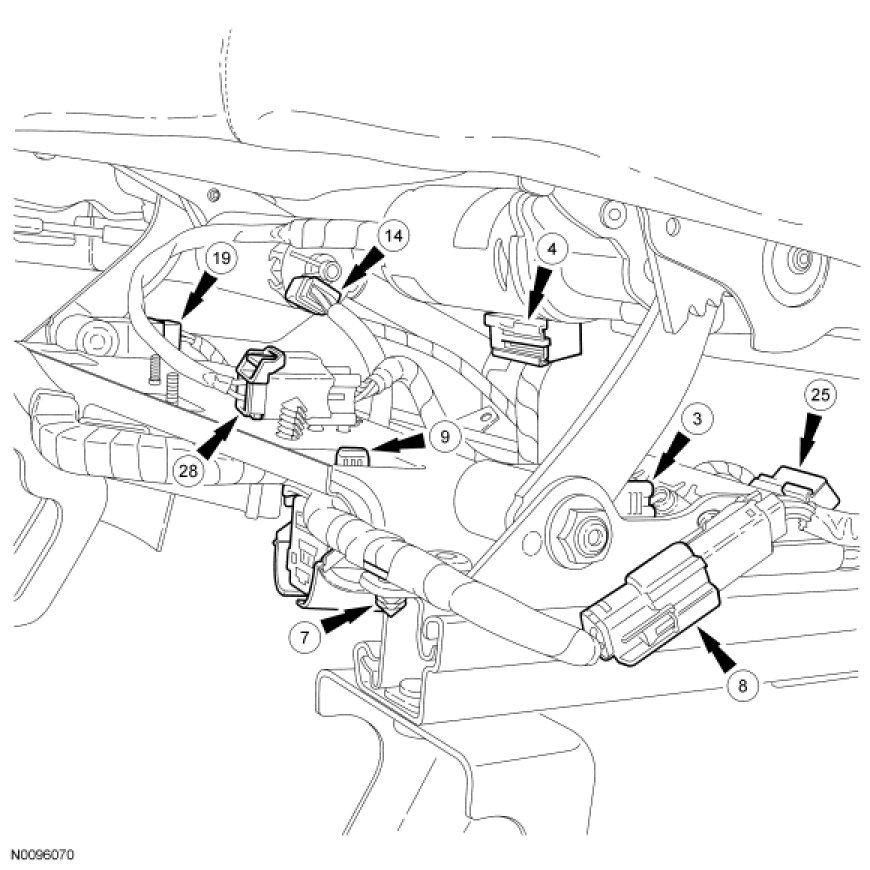

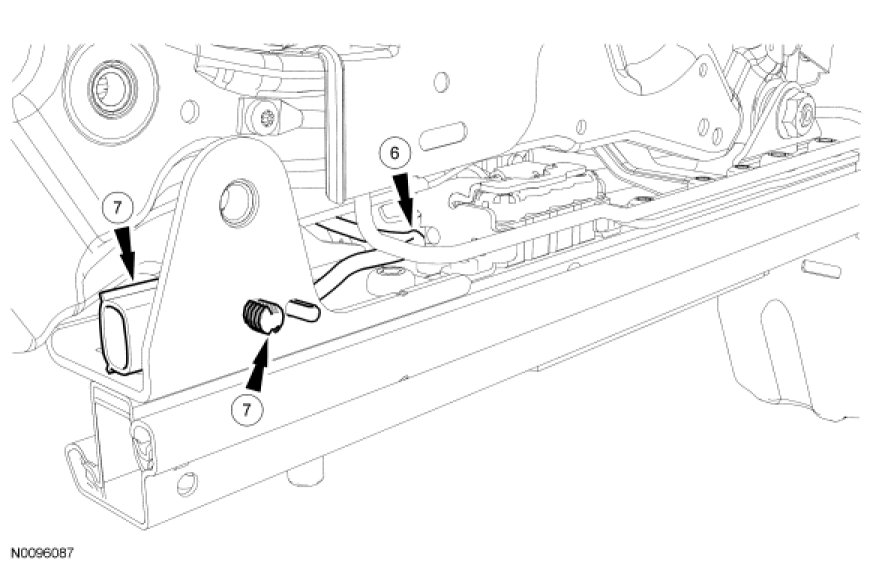

Retainer and Connector Location View, Front Inboard

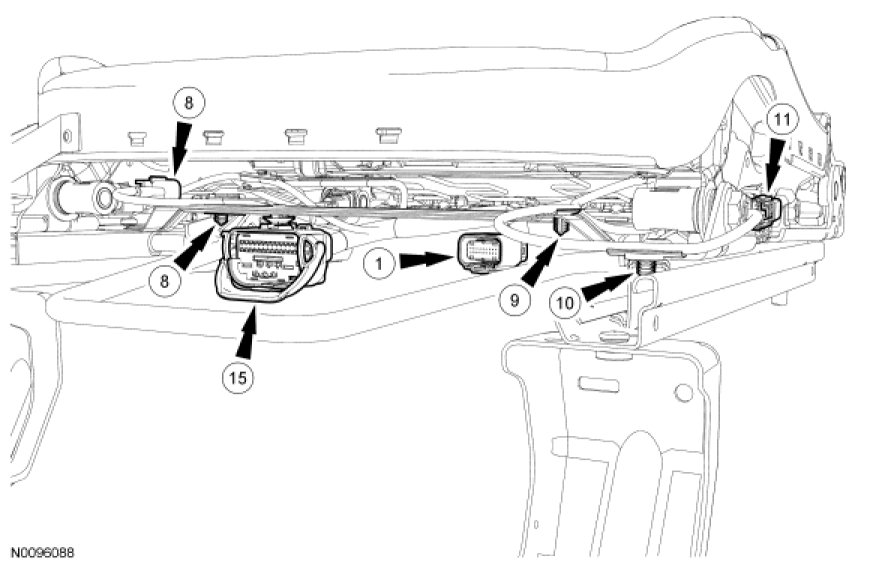

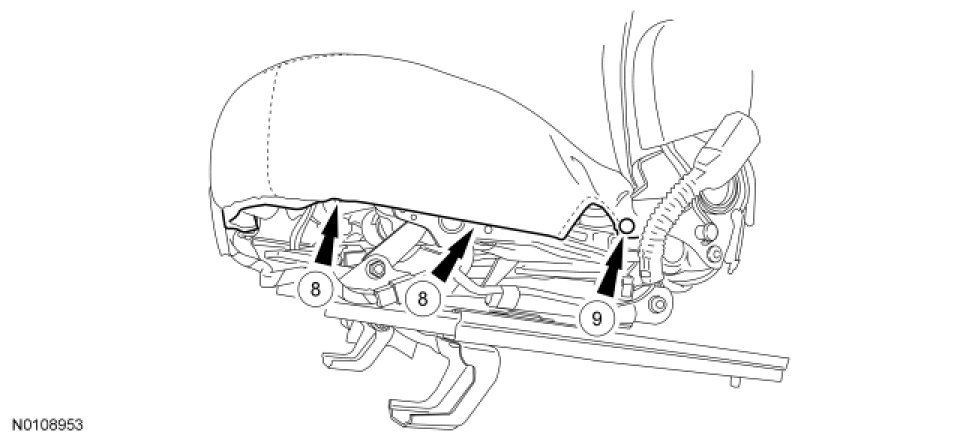

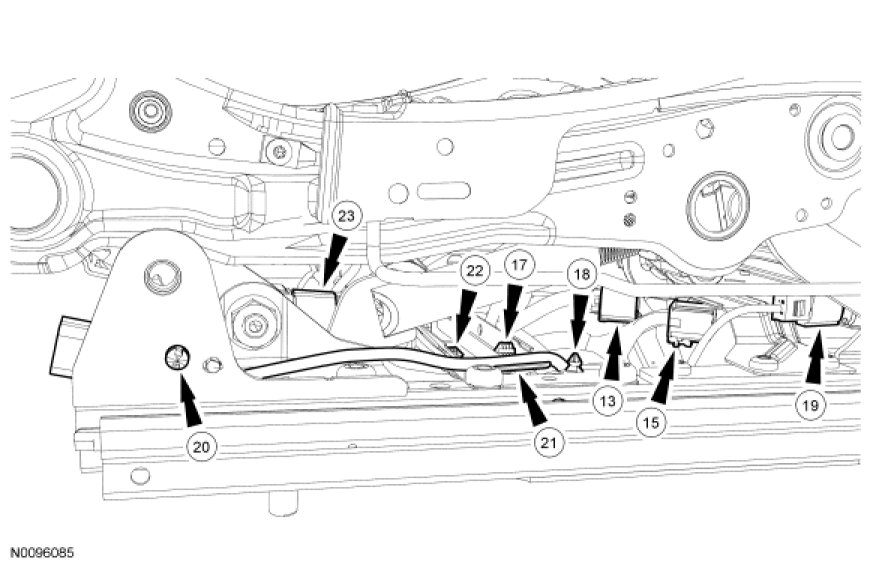

Retainer and Connector Location View, Outboard Side

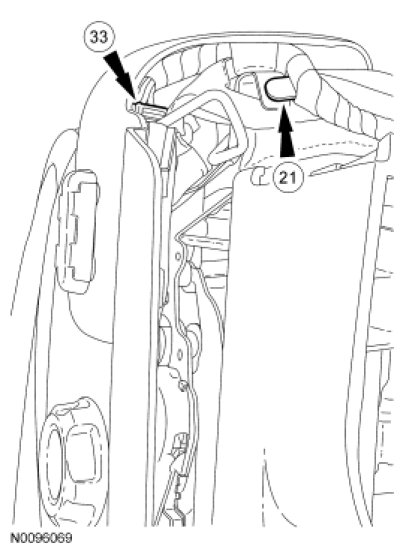

Retainer and Connector Location View, Backrest





Retainer and Connector Location View, Seat Control Switch

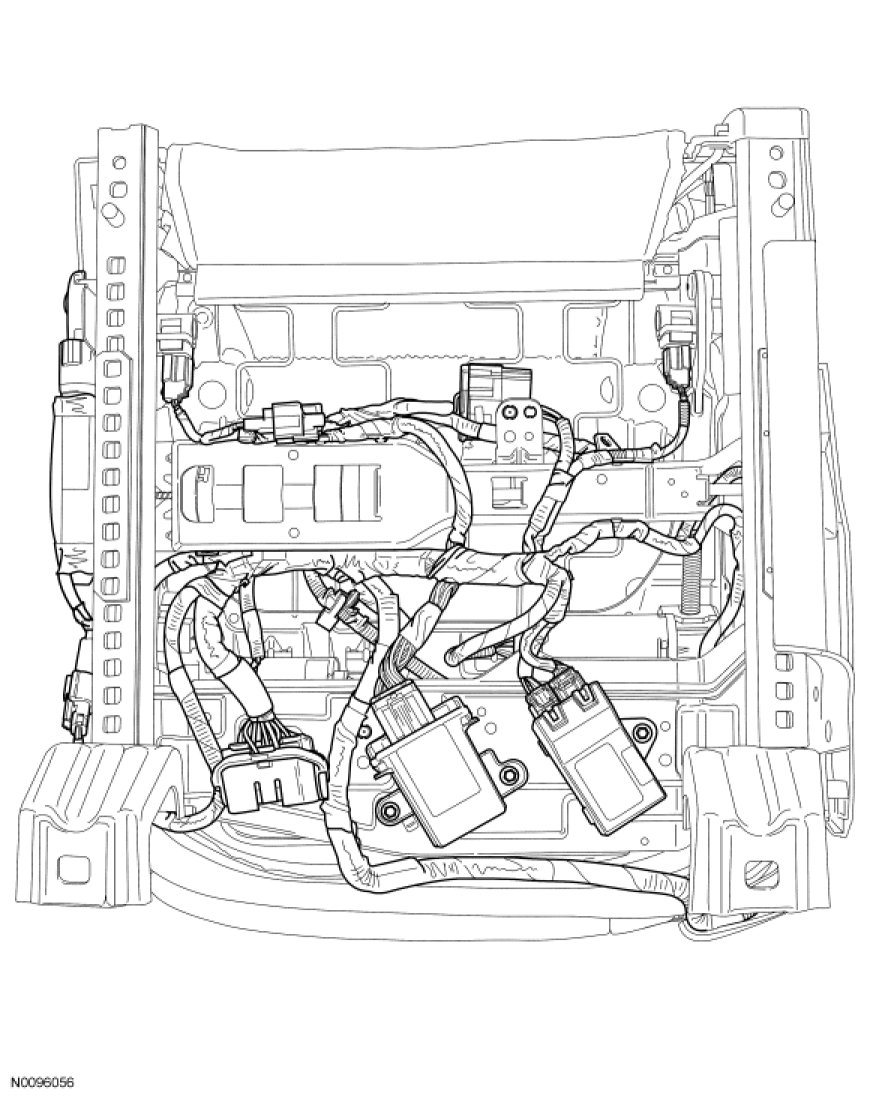

Wire Harness Installed View





1. Make sure the passenger seat cushion wire harness is correctly routed and attached.


Manual Passenger Seat Track

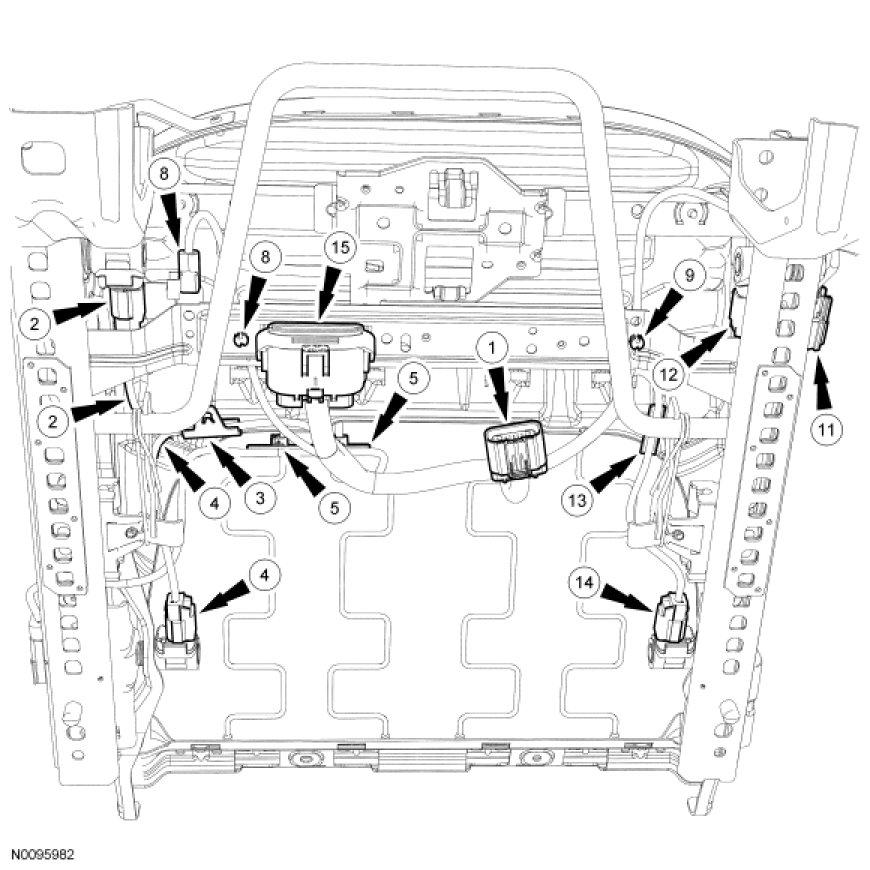

Retainer and Connector Location View, Cushion Frame From Underneath

NOTE: See supporting views for missing numbers.










a Make sure the wire harness passes on the correct side of seat track lever as shown.

Retainer and Connector Location View, Outboard Side of Seat





Retainer and Connector Location View, Front of Seat Track





1. Make sure the passenger seat cushion wire harness is correctly routed and attached.


Power Passenger Seat Track DVD Player Harness

Wire Harness View










Retainer and Connector Location View, Cushion Frame From Front and Underneath





Retainer and Connector Location View, Cushion Frame From The Front

NOTE: The DVD player wire harness must route under the front height motor wire harness.






Retainer and Connector Location View, Inboard Side





Cushion Cover Retainers, Inboard Side

NOTICE: The DVD player wire harness must be routed under the cushion cover and above the cushion cover pin-type retainer or the Occupant Classification Sensor (OCS) system will not operate correctly.






1. Make sure the passenger seat DVD player wire harness is correctly routed and attached.
