Cabin Temperature Sensor / Switch
>>

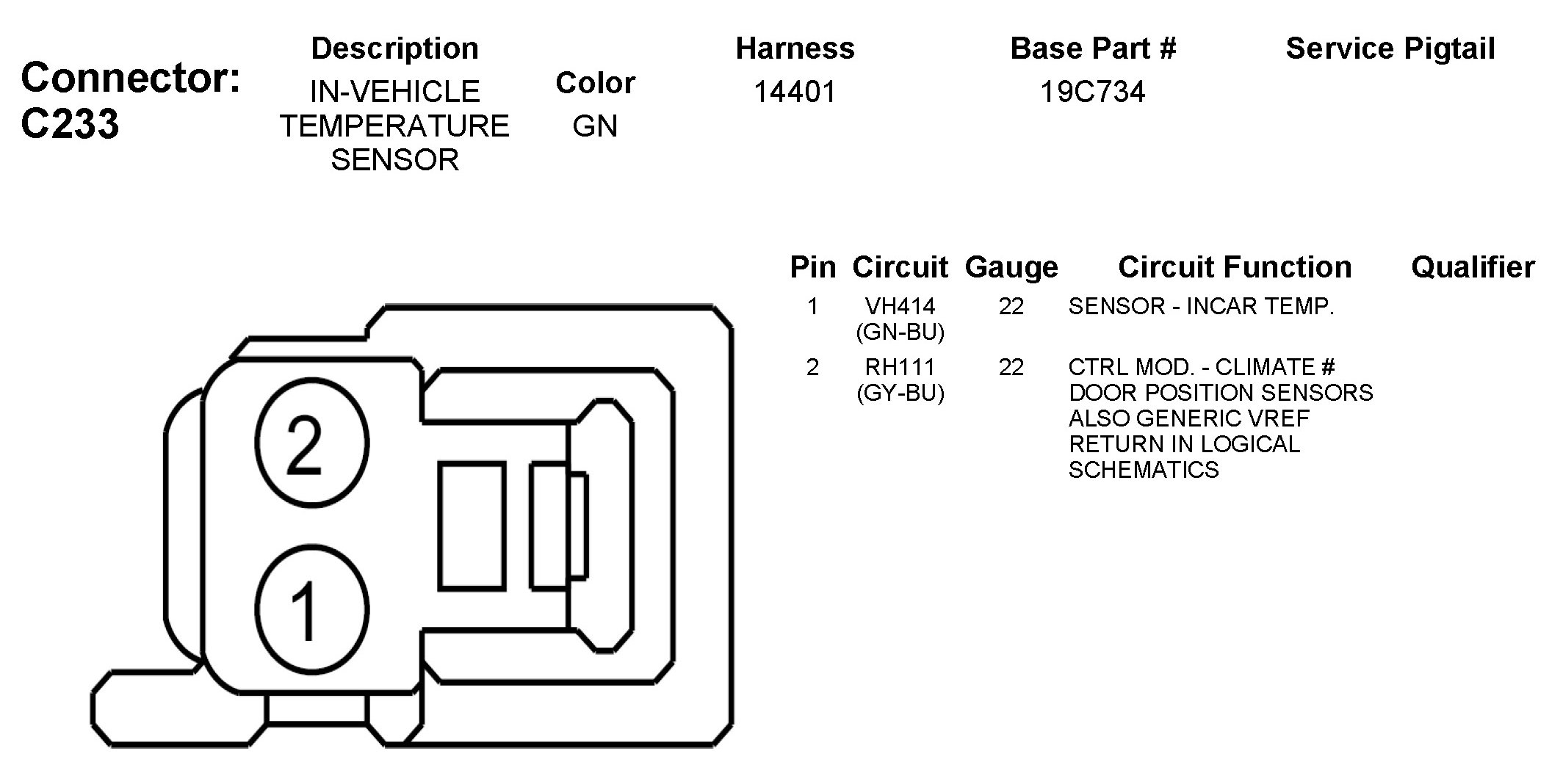

C233 In-Vehicle Temperature Sensor
C233 In-Vehicle Temperature Sensor
