Power Door Lock Actuator
>>

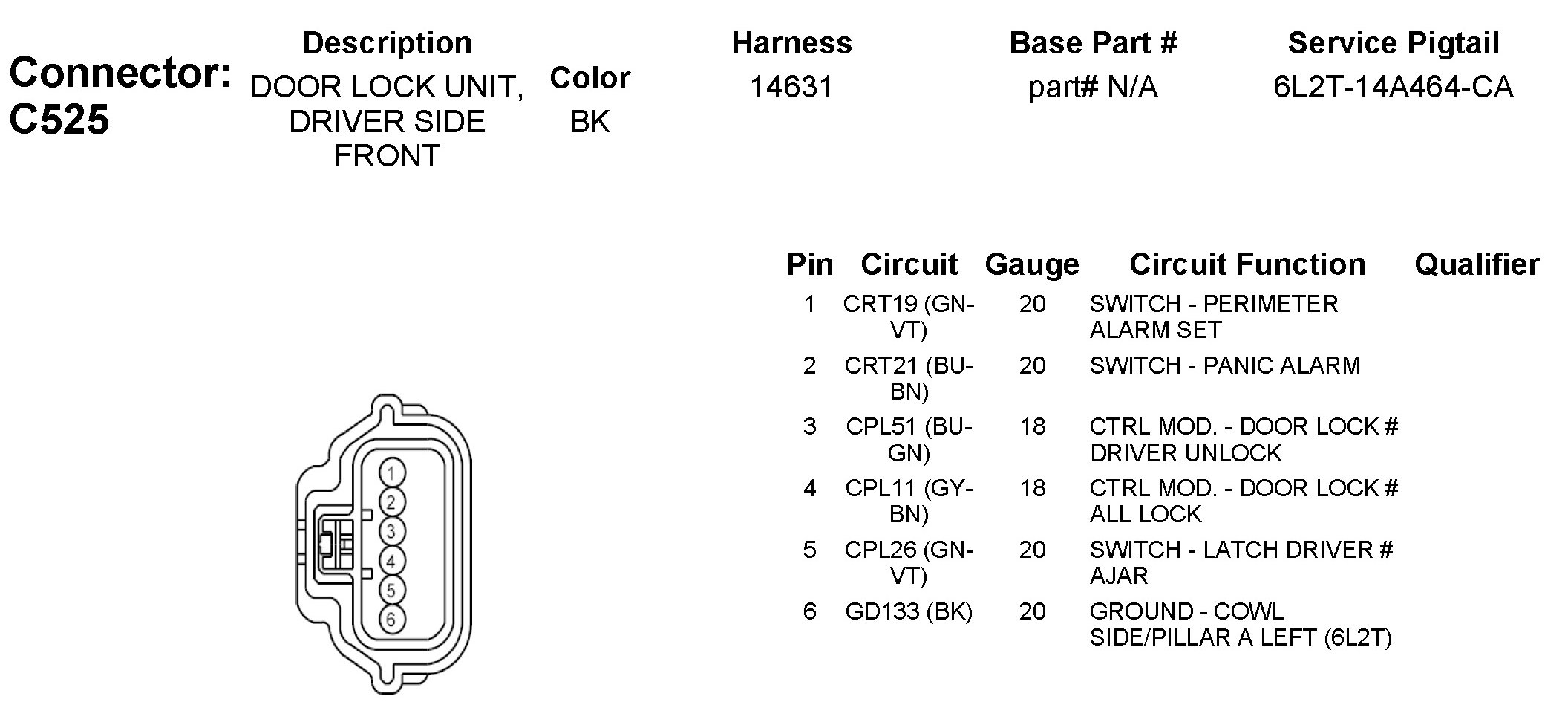

C525 Door Lock Unit, Driver Side Front
C525 Door Lock Unit, Driver Side Front
