Valve Body, A/T

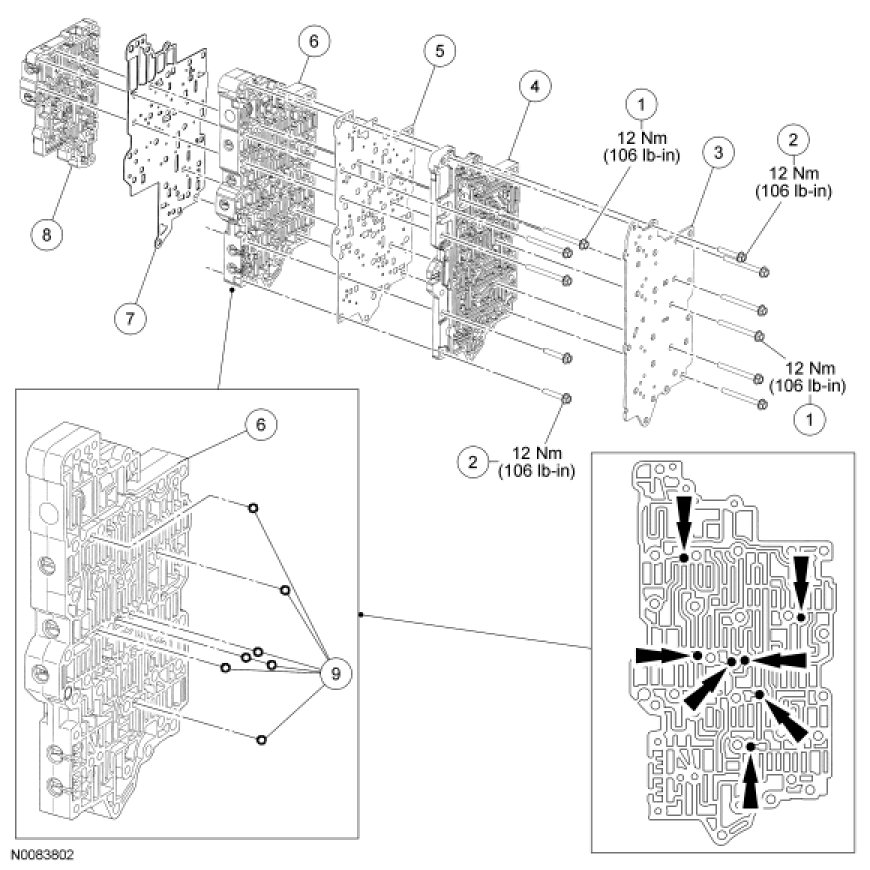

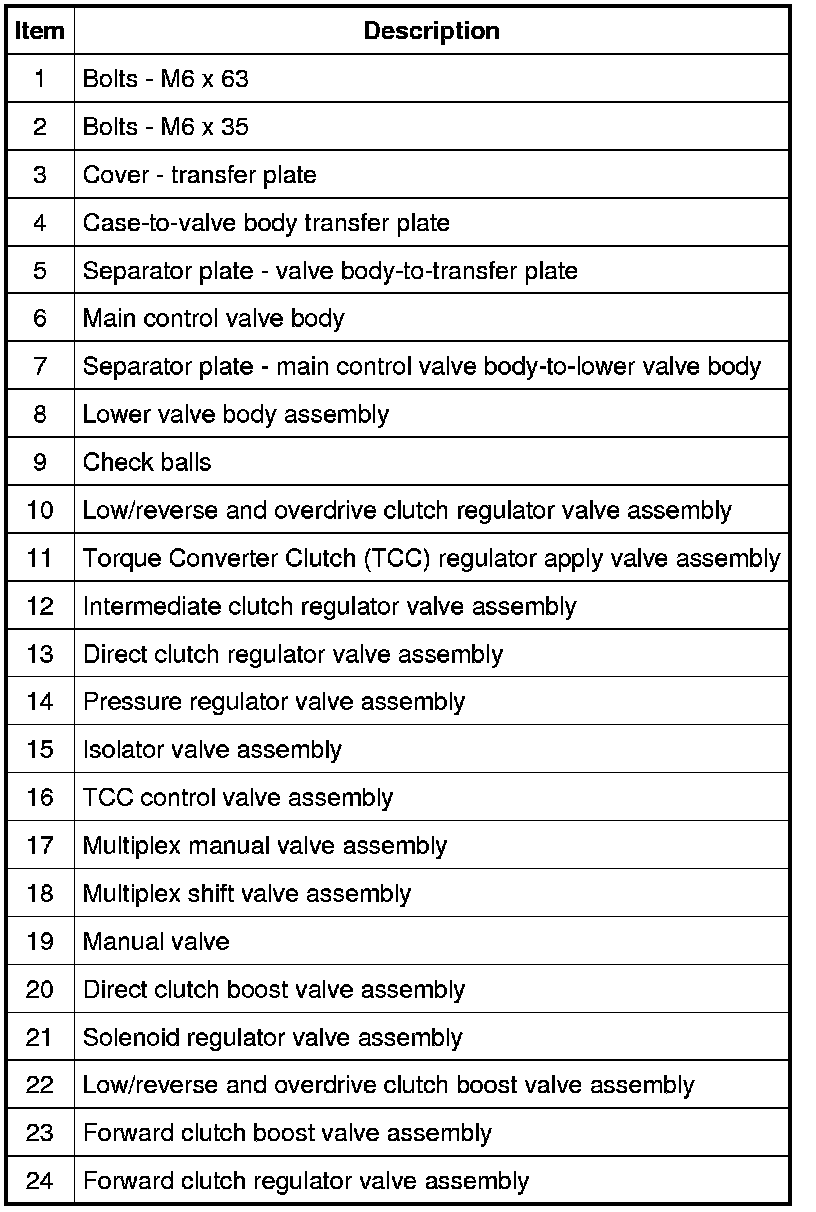

Main Control Valve Body
Valve Body

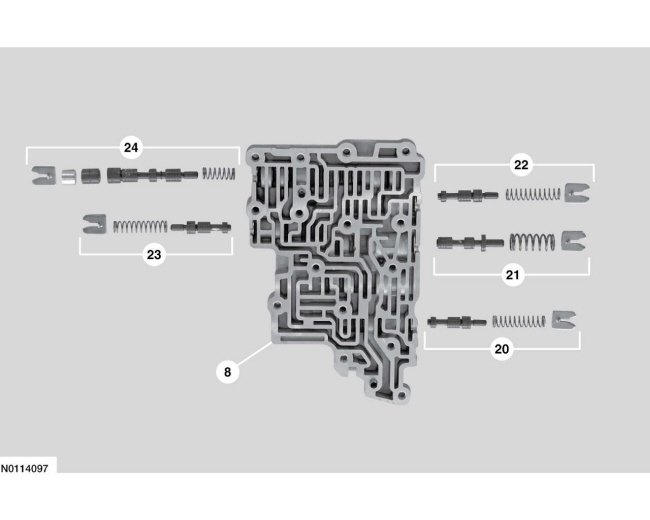

Lower Valve Body
NOTE:
Install the 7 check balls in the correct location.
