Home >> Ford >> 2011 >> Flex FWD V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Smart Junction Box (SJB)

Smart Junction Box (SJB)

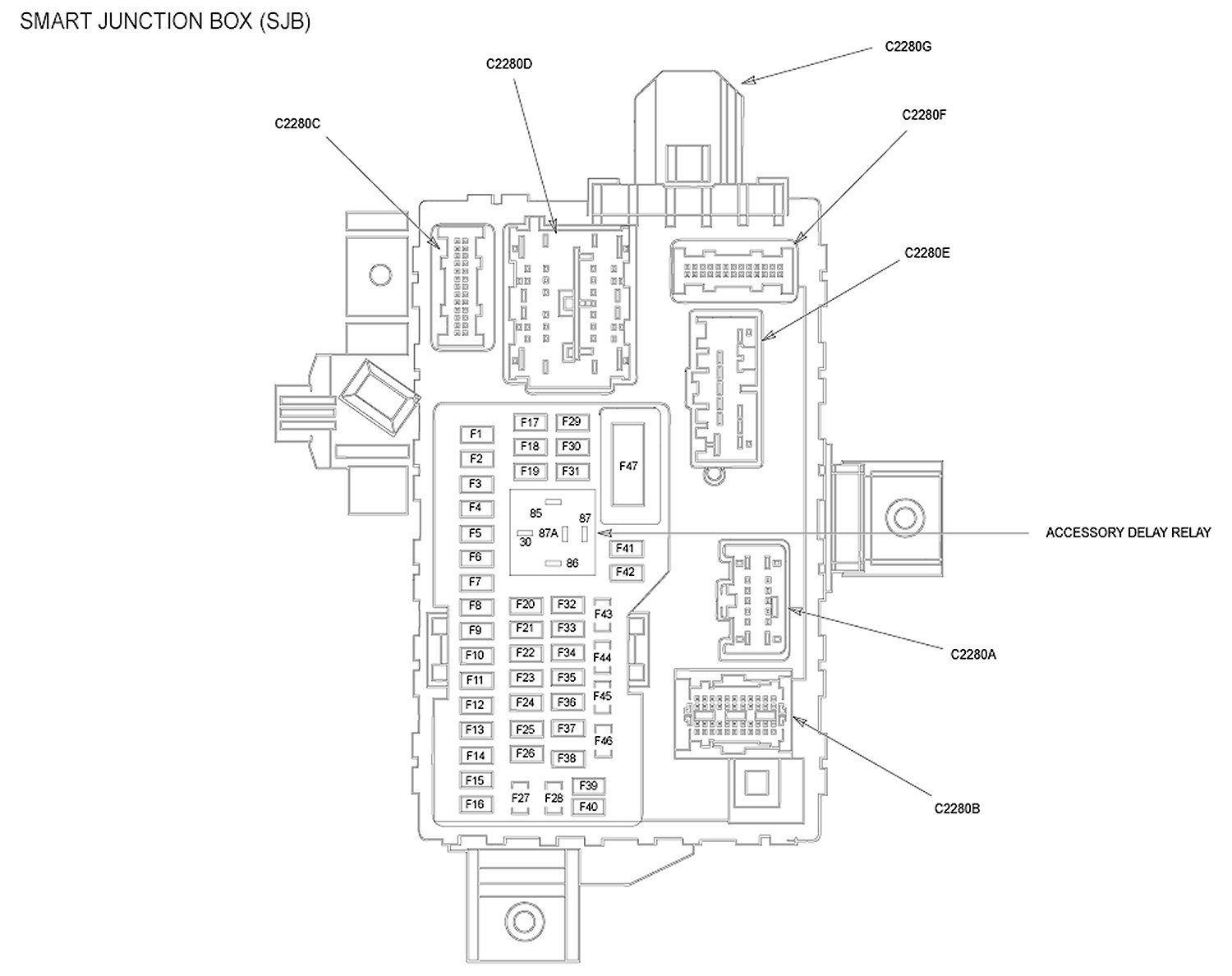

Smart Junction Box (1 Of 2):

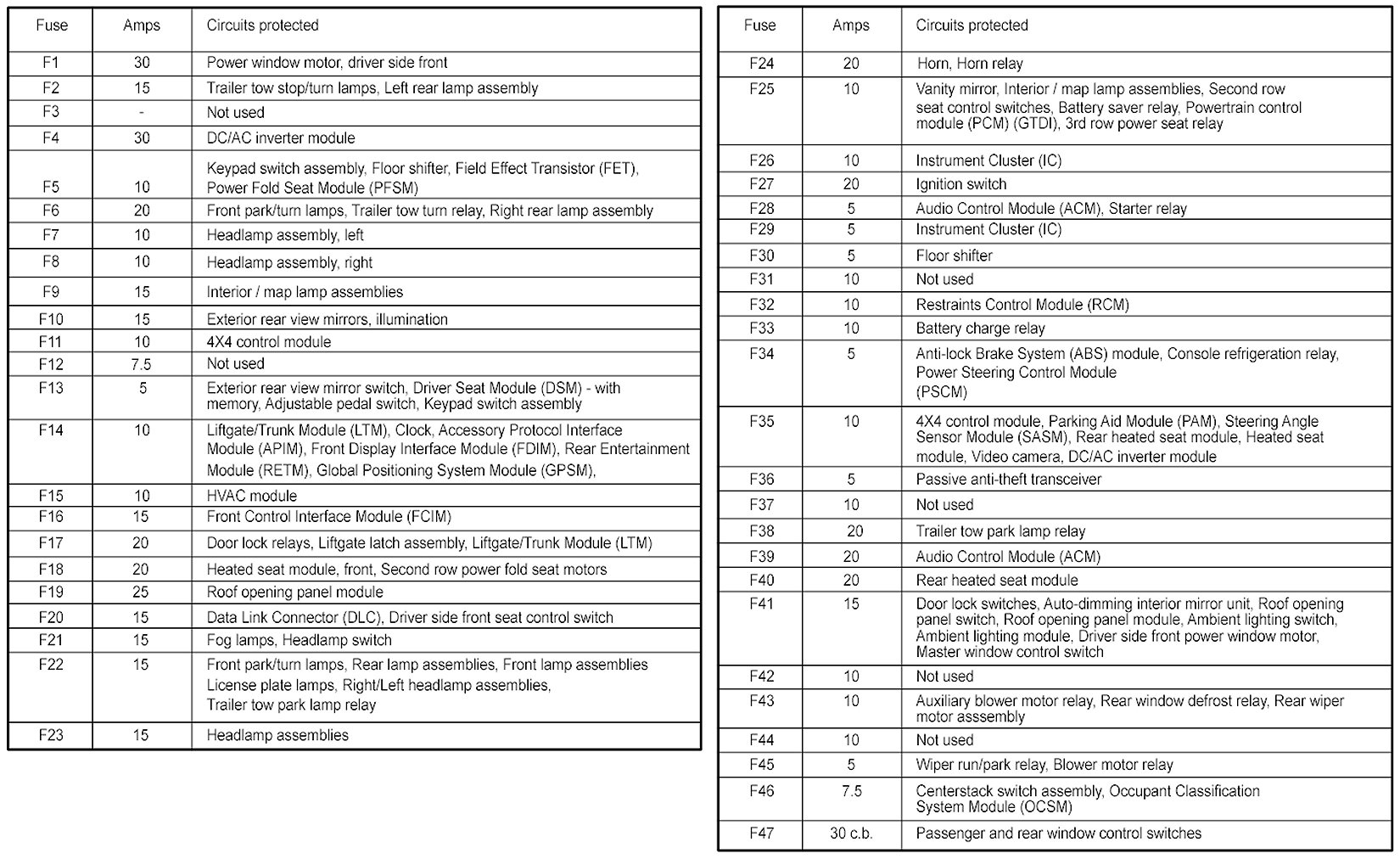

Smart Junction Box (2 Of 2):
