Home
>>
Ford
>>
2011
>>
Flex FWD V6-3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>

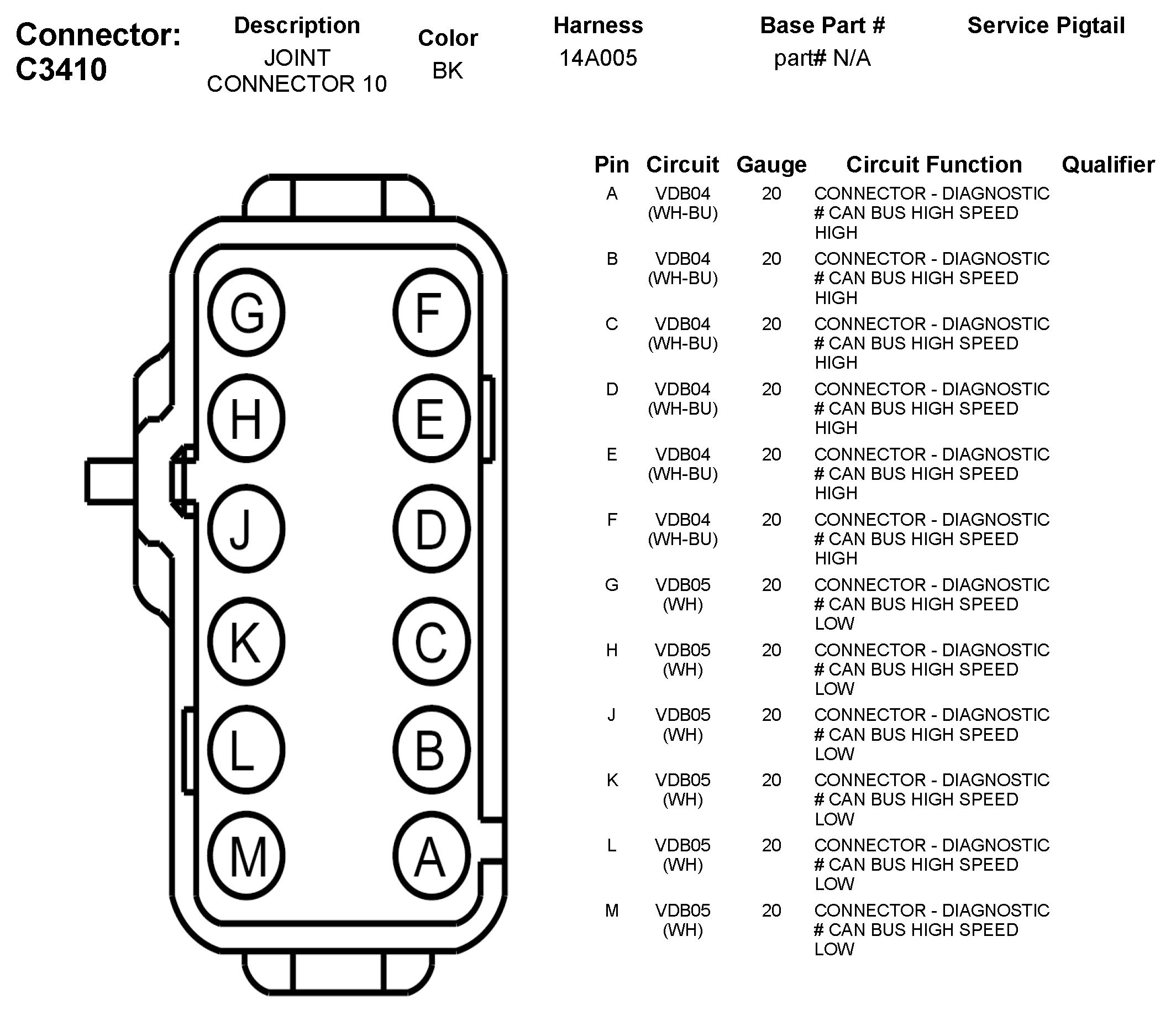

C3410 Joint Connector 10
C3410 Joint Connector 10
