Interior Light Switch: Service and Repair

Ambient Lighting Switch









Removal and Installation

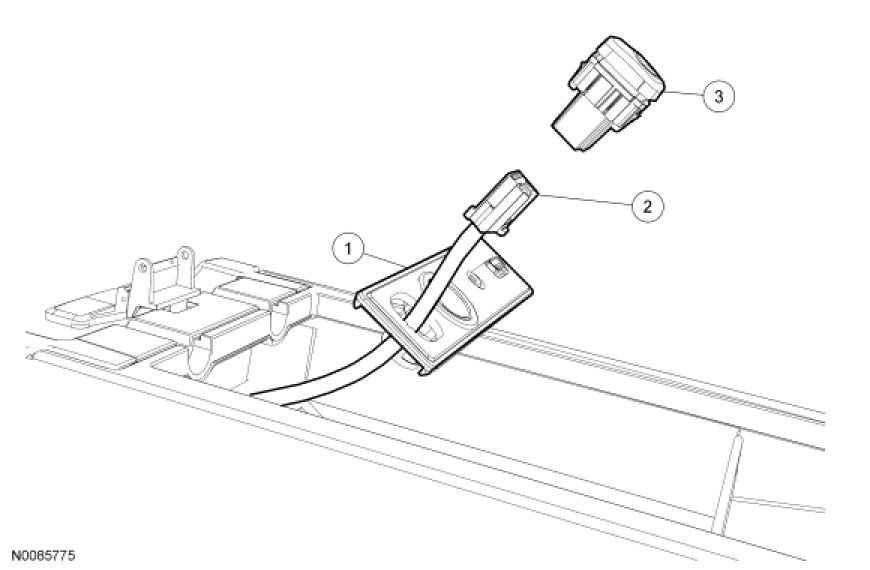

1. NOTE: The ambient lighting switch bezel is removed by grasping the sides and pulling upward.

Remove the ambient lighting switch bezel.

- Disconnect the electrical connector.

2. Squeeze the retaining tabs and remove the ambient lighting switch.

3. To install, reverse the removal procedure.
