Intake Manifold

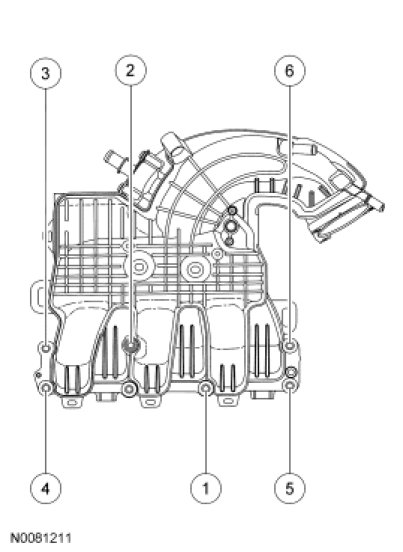

Install the upper intake manifold and the 6 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).









Install the lower intake manifold and the 10 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).
