Window Glass - Fixed, Rear Door

Window Glass - Fixed, Rear Door

Removal and Installation

NOTE: The door glass run and bracket is part of the rear window fixed glass assembly and cannot be serviced separately.

1. Remove the window control switch. For additional information, refer to Window Control Switch Service and Repair.

2. Remove the rear door speaker. For additional information, refer to Information and Entertainment Systems Service and Repair.

3. Remove the water shield.

4. Temporarily install the window control switch and lower the window glass to access the glass-to-regulator clamp locking tab.

5. Using a suitable tool, push the glass-to-regulator clamp locking tab inward then gently lift the glass upward slightly to release the glass from the regulator clamp.
- To install, gently push glass down into the clamp until an audible click is heard, indicating the glass has seated correctly into the glass clamp.

6. While holding the door glass, carefully lower the regulator to the full DOWN position and allow the door glass to rest loosely on top of the regulator.

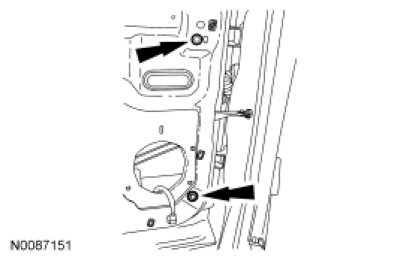

7. Loosen but do not remove the 2 door glass run retainer bolts.
- To install, tighten to 8 Nm (71 lb-in).

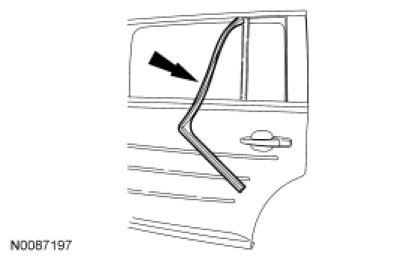

8. Remove the interior door glass weatherstrip.

9. Position aside the top run.

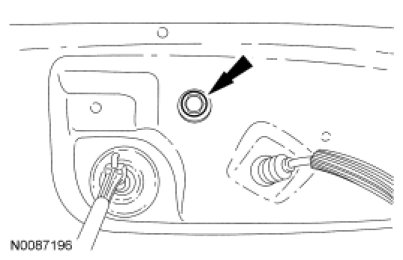

10. Remove the rear door window glass top run screw.
- To install, tighten to 5 Nm (44 lb-in).

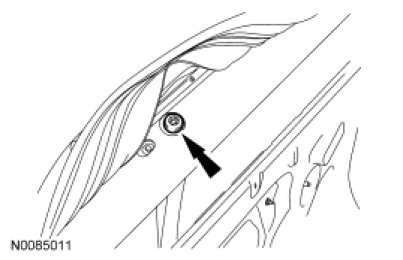

11. Remove tape and then remove the rear door fixed window glass bolt.
- To install, tighten to 8 Nm (71 lb-in).





12. NOTE: The door glass run and bracket is part of the rear window fixed glass assembly and cannot be serviced separately.

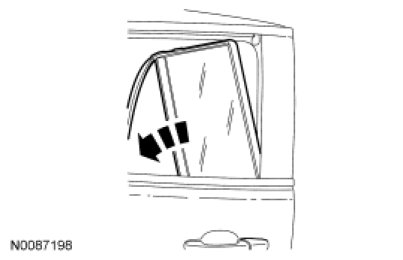

Remove the rear door fixed window glass.

- Tip the front of the fixed glass assembly down and pull the assembly out through the top outboard side of the door.





13. To install, reverse the removal procedure.
- Position the fixed glass assembly tightly up against the top of the rear door before tightening the 2 bolts that hold the fixed glass assembly in place. From the outside of the door, inspect the fixed glass assembly to make sure that the rubber weatherstrip surrounding the fixed glass assembly is touching the rear door top applique.
