Alternator: Service and Repair

Generator - 3.5L













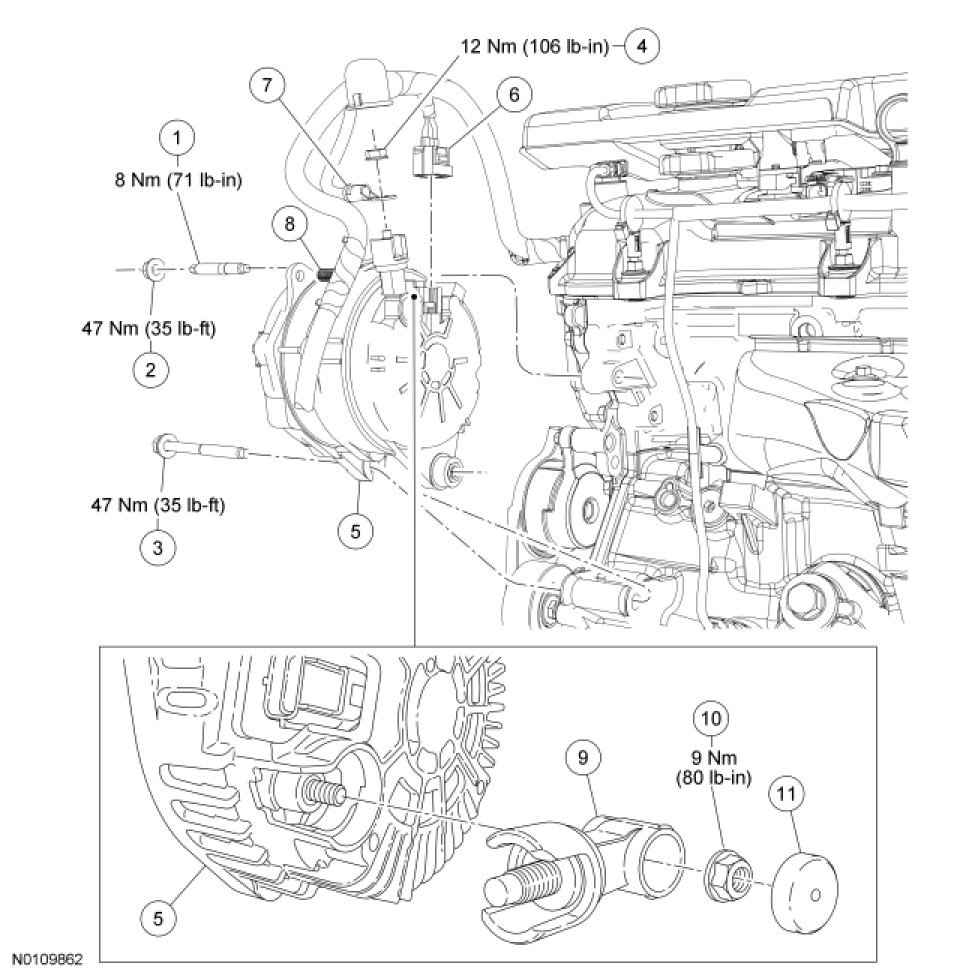

Removal and Installation

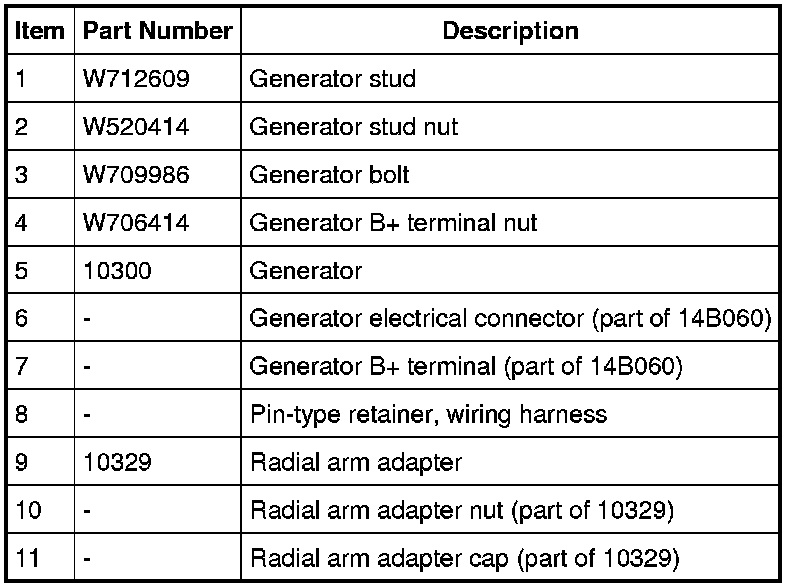

NOTE: The radial arm adapter is a serviceable item. Do not replace the generator if the radial arm adapter is the only concern.

1. Remove the A/C compressor. For additional information, refer to Climate Control Service and Repair.

2. Disconnect the battery. For additional information, refer to Battery, Mounting and Cables Battery Disconnect.

3. Position the generator protective cover aside, remove the nut and position the generator B+ terminal aside.
- To install, tighten to 12 Nm (106 lb-in).

4. Disconnect the generator electrical connector.
- Detach the pin-type retainer and wiring harness.

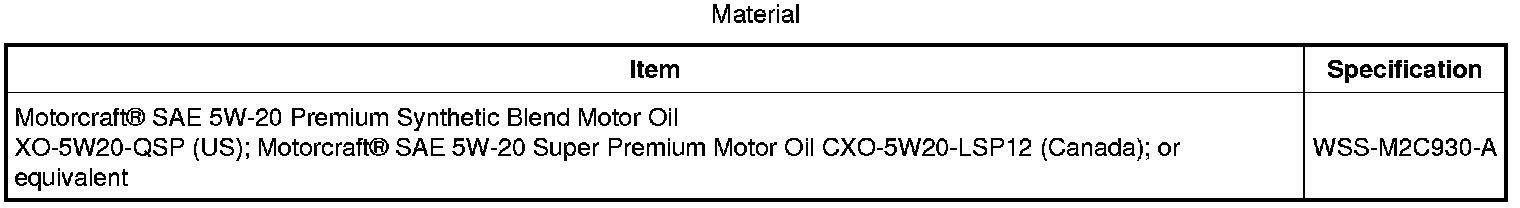

5. Remove the oil filter.
- Lubricate the oil filter seal with clean engine oil before installation.

6. Position the engine wiring harness aside.

7. Remove the generator stud nut.
- To install, tighten to 47 Nm (35 lb-ft).

8. Remove the generator bolt and the generator.

9. To install, reverse the removal procedure.
