6F35

Transaxle Support Insulator - Anti-Roll









Removal

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Remove the screws and the underbody cover.





Vehicles equipped with a 3.0L engine

3. Remove the Y-pipe. For additional information, refer to Exhaust System Service and Repair.

All vehicles

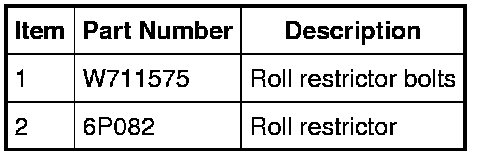

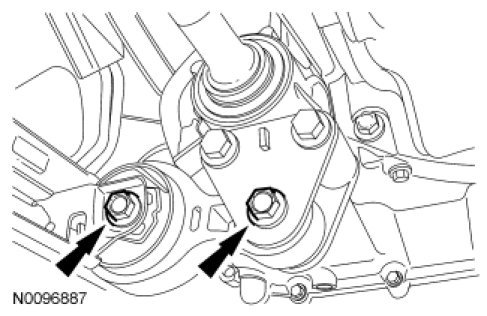

4. Remove the 2 bolts and remove the roll restrictor.





Installation

All vehicles

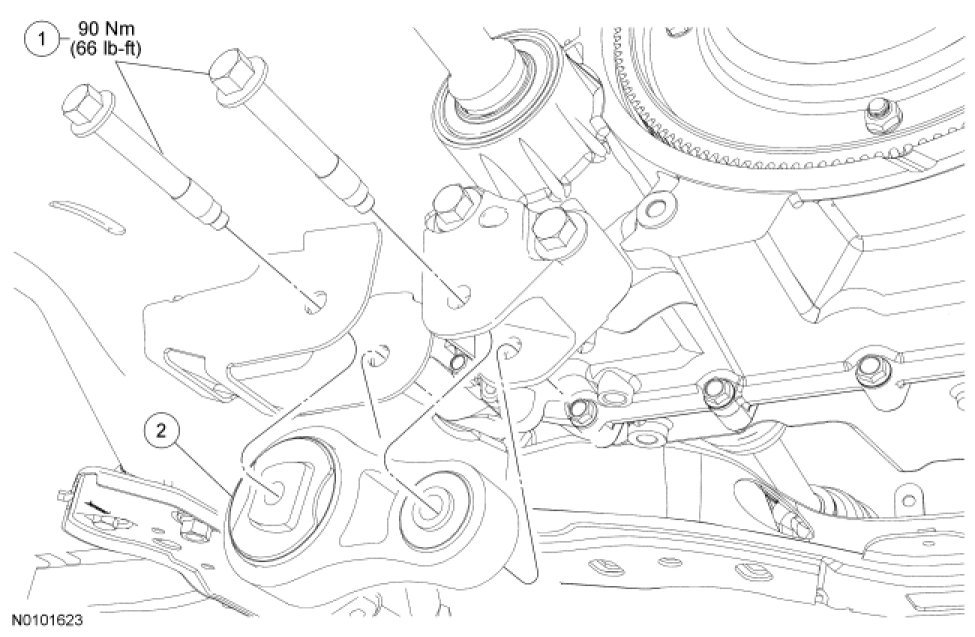

1. Position the roll restrictor in place and install the bolts.
- Tighten to 90 Nm (66 lb-ft).





Vehicles equipped with a 3.0L engine

2. Install the Y-pipe. For additional information, refer to Exhaust System Service and Repair.

All vehicles

3. Install the underbody cover and the screws.
