Horn: Service and Repair

Horn

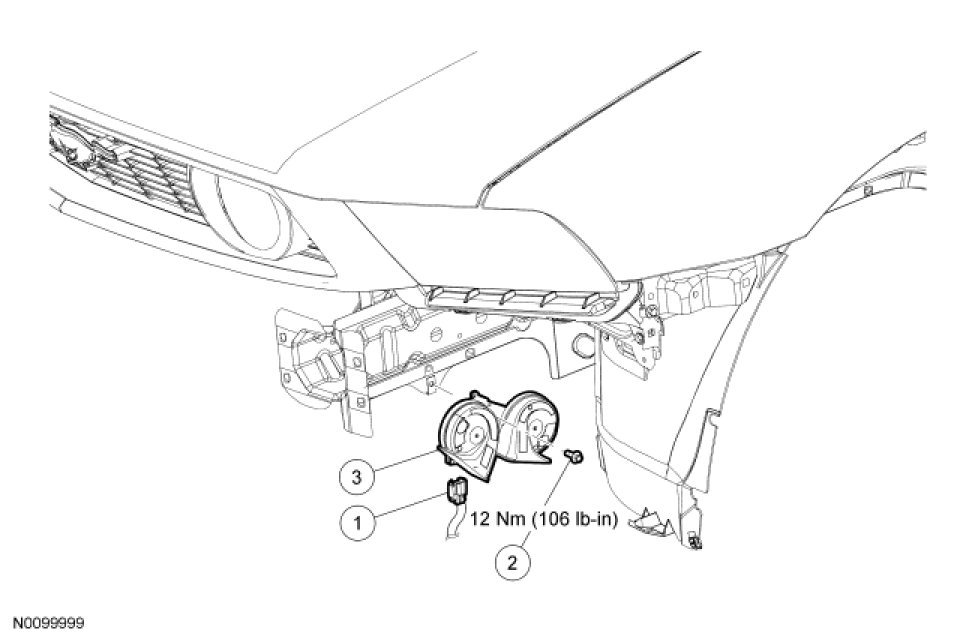

NOTE: Front bumper shown removed for clarity.











Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Remove the 9 screws and the lower radiator air deflector.

3. Disconnect the horn electrical connector.

4. Remove the bolt and the horn.
- To install, tighten to 12 Nm (106 lb-in).

5. To install, reverse the removal procedure.
