Seat Cushion - Rear, 2-Door, SuperCab

Seat Cushion - Rear, 2-Door, SuperCab


2-Door SuperCab









Disassembly and Assembly

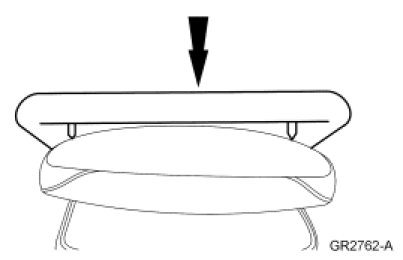

1. Remove the assist handle in the following sequence.

1. Remove the screw covers.

2. Remove the screws.

3. Remove the assist handle.

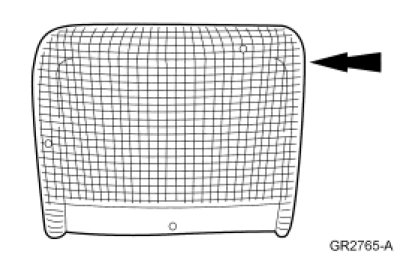

2. Remove the rear seat door trim cover screw.

1. Unhook the rear seat door trim cover retainers.

2. Remove the rear seat door trim cover screw.





3. Disengage the pin-type retainers and remove the seat door trim cover.





4. Remove the hog rings.





5. Remove the seat base from the seat frame.





6. Remove the seat base trim cover.





7. NOTE: Before installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.

To assemble, reverse the disassembly procedure.
