Register - Center

Register - Center

Removal and Installation

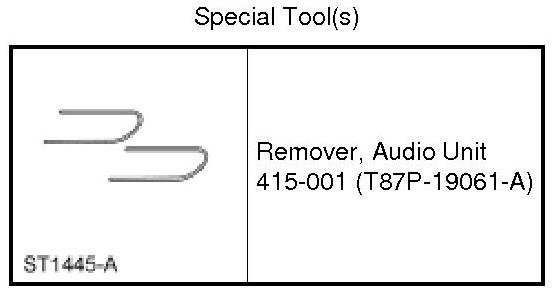

1. Using the Audio Unit Remover, remove the audio unit.
- Disconnect the antenna cable and electrical connectors.

2. Remove the center instrument panel finish panel.

1. Remove the 2 screws.

2. Disengage the spring clips and remove the instrument panel finish panel.

- Disconnect the electrical connectors.

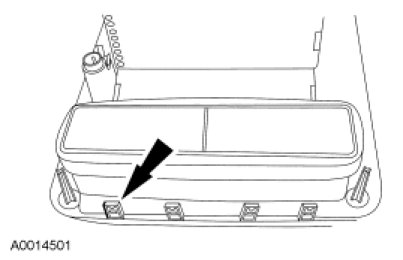

3. Release the 8 clips and remove the center registers.

4. To install, reverse the removal procedure.
