Register - Driver Side

Register - Driver Side

Removal and Installation

1. Remove the audio unit. For additional information, refer to Information and Entertainment Systems Audio Unit.

2. Remove the center instrument panel finish panel.

1. Remove the 2 screws.

2. Remove the center instrument panel finish panel.

- Disconnect the electrical connectors.

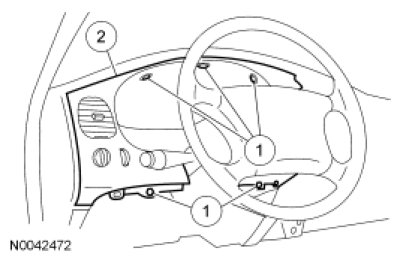

3. Remove the instrument cluster finish panel.

1. Remove the 5 screws.

2. Remove the instrument cluster finish panel.

- Disconnect the electrical connectors.

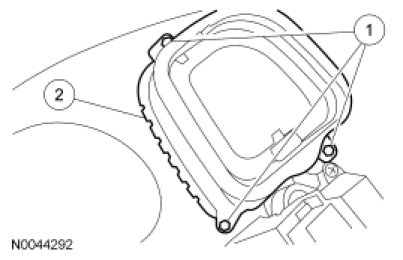

4. Remove the LH instrument panel register.

1. Remove the 3 screws.

2. Remove the driver side register.





5. To install, reverse the removal procedure.
