Register - Passenger Side

Register - Passenger Side









Removal and Installation

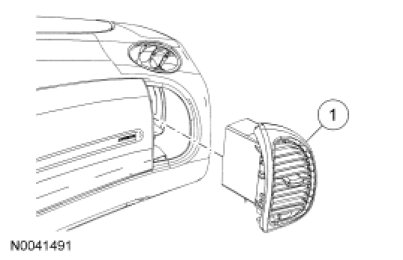

1. Lift the edge of the passenger side register to expose the retainers.





2. Release the retainers and remove the passenger side register.

3. To install, reverse the removal procedure.
