Throttle Body: Service and Repair

Throttle Body









Removal

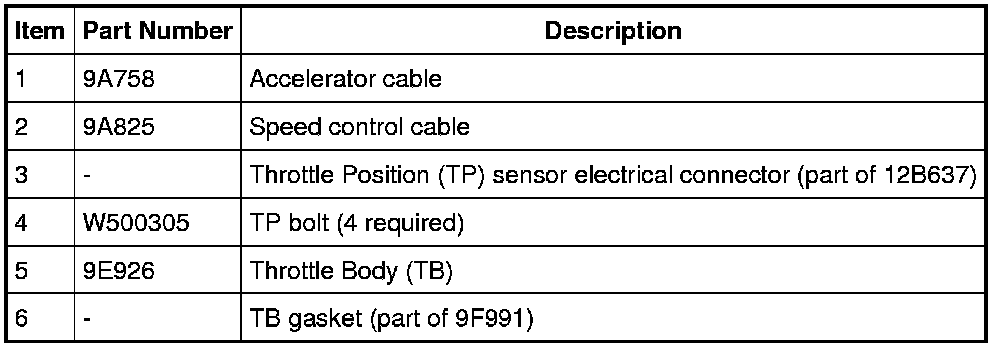

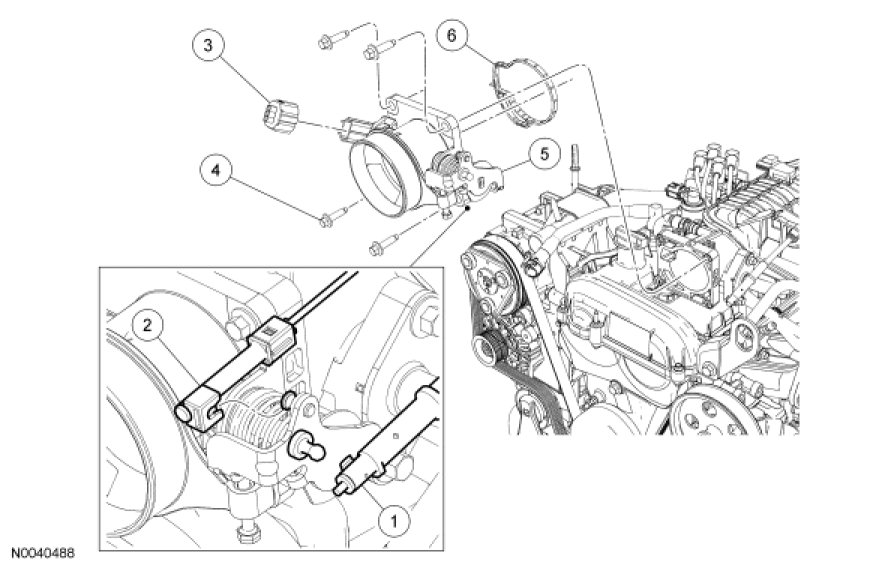

1. Remove the Air Cleaner (ACL) outlet tube. For additional information, refer to Intake Air Distribution and Filtering [1][2]Diagrams.

2. Remove the 2 bolts and the Throttle Body (TB) cover.





3. Disconnect the accelerator cable and, if equipped, the speed control cable.

4. Disconnect the Throttle Position (TP) sensor electrical connector.

5. Remove the 4 bolts and the TB.

Installation

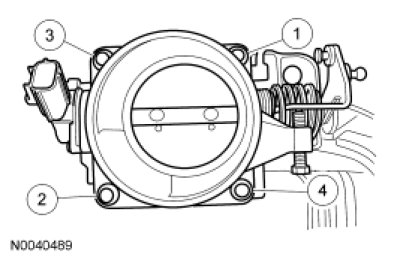

1. Position the TB gasket, the TB and install the 4 bolts in the sequence shown.
- Inspect the TB gasket and install a new gasket as necessary.

- Tighten to 10 Nm (89 lb-in).





2. Connect the TP sensor electrical connector.

3. Connect the accelerator cable and, if equipped, the speed control cable.

4. Position the TB cover and install the 2 bolts.





5. Install the ACL outlet tube. For additional information, refer to Intake Air Distribution and Filtering [1][2]Diagrams.
