System Specifications

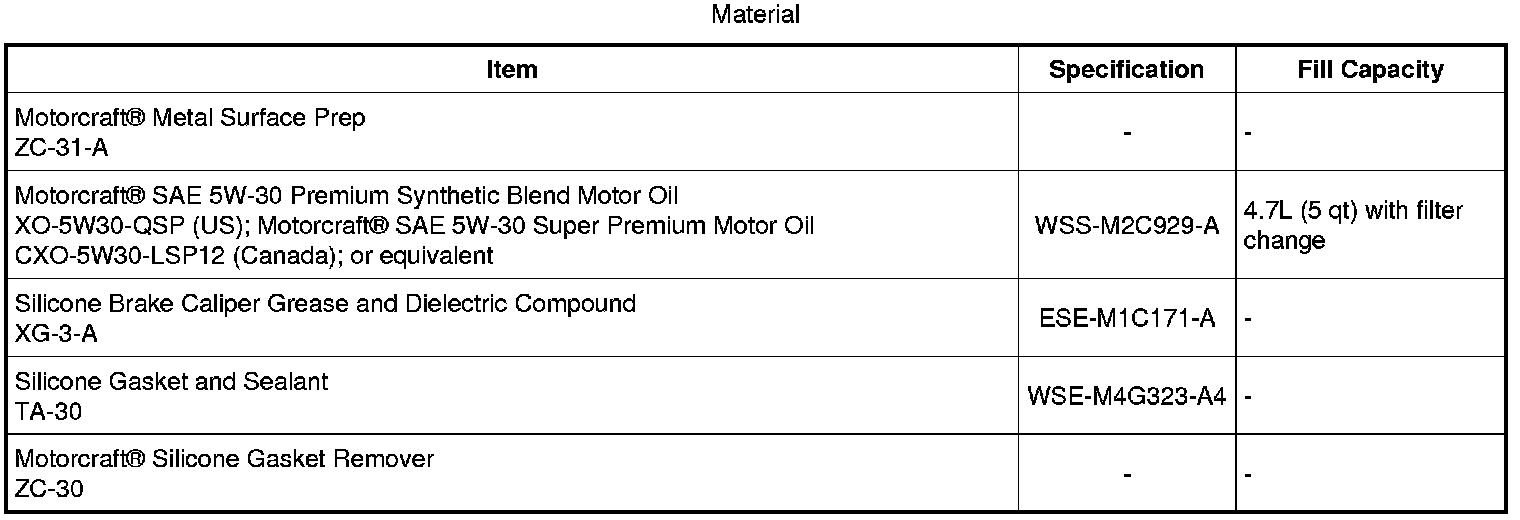

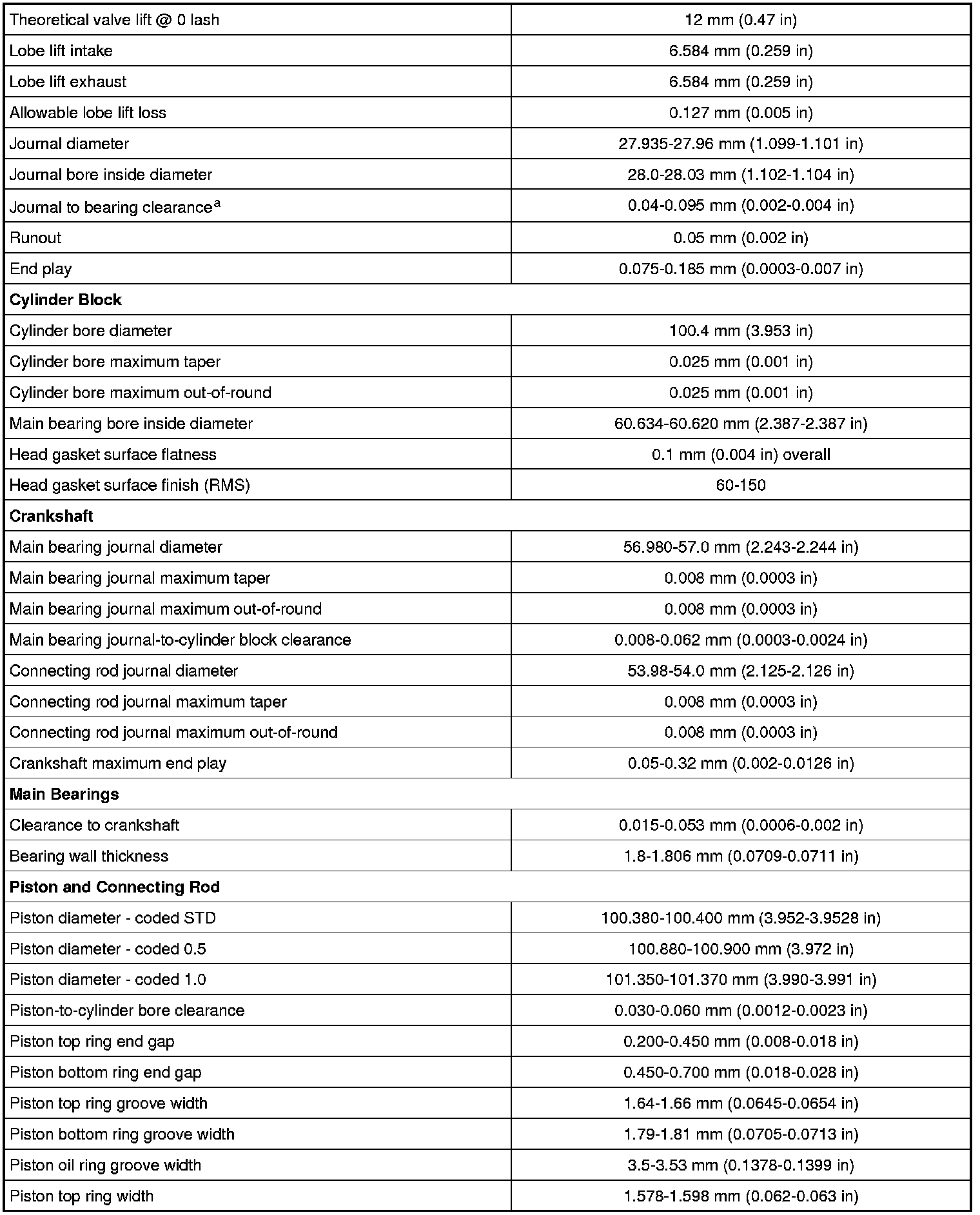

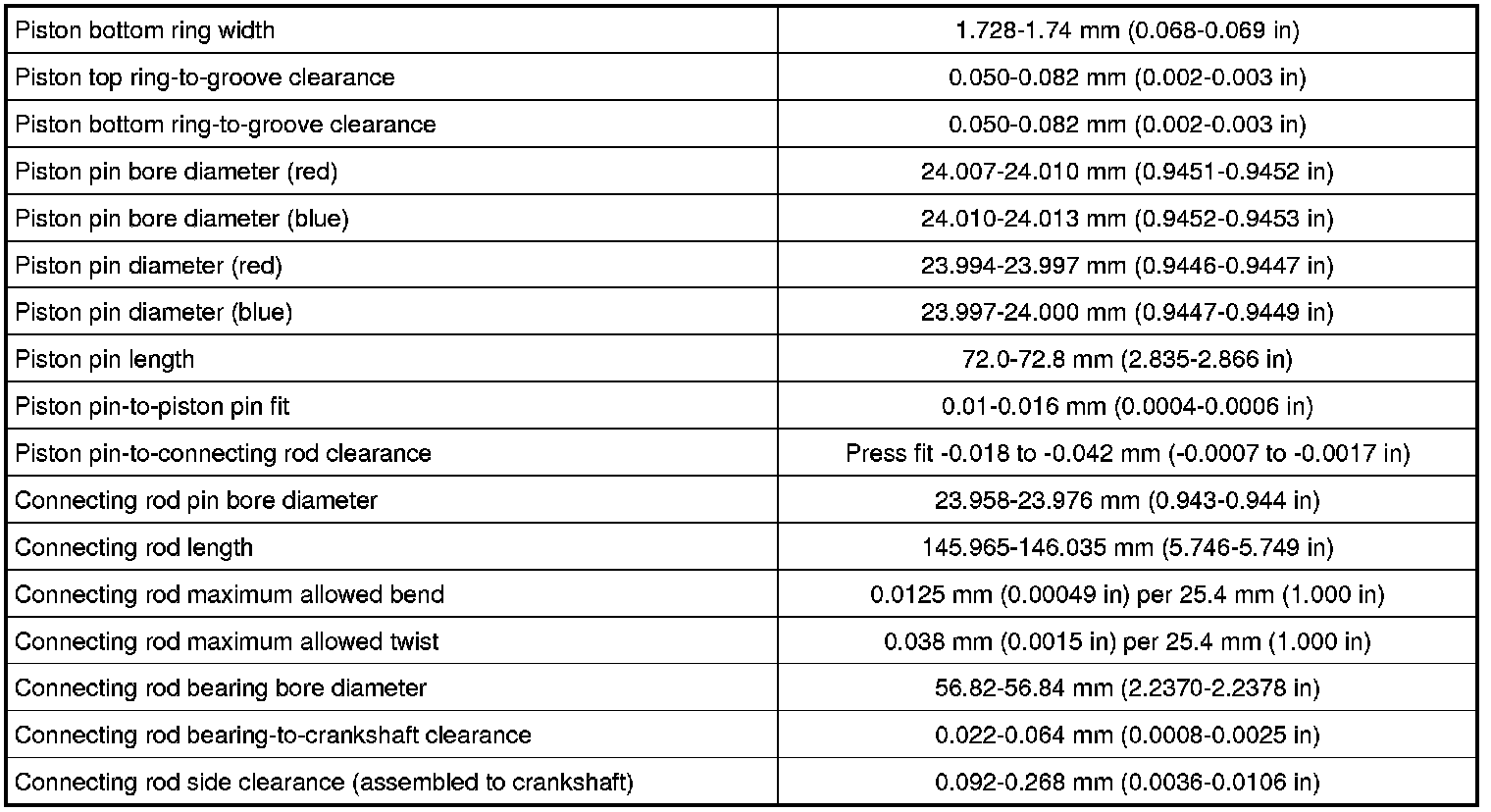

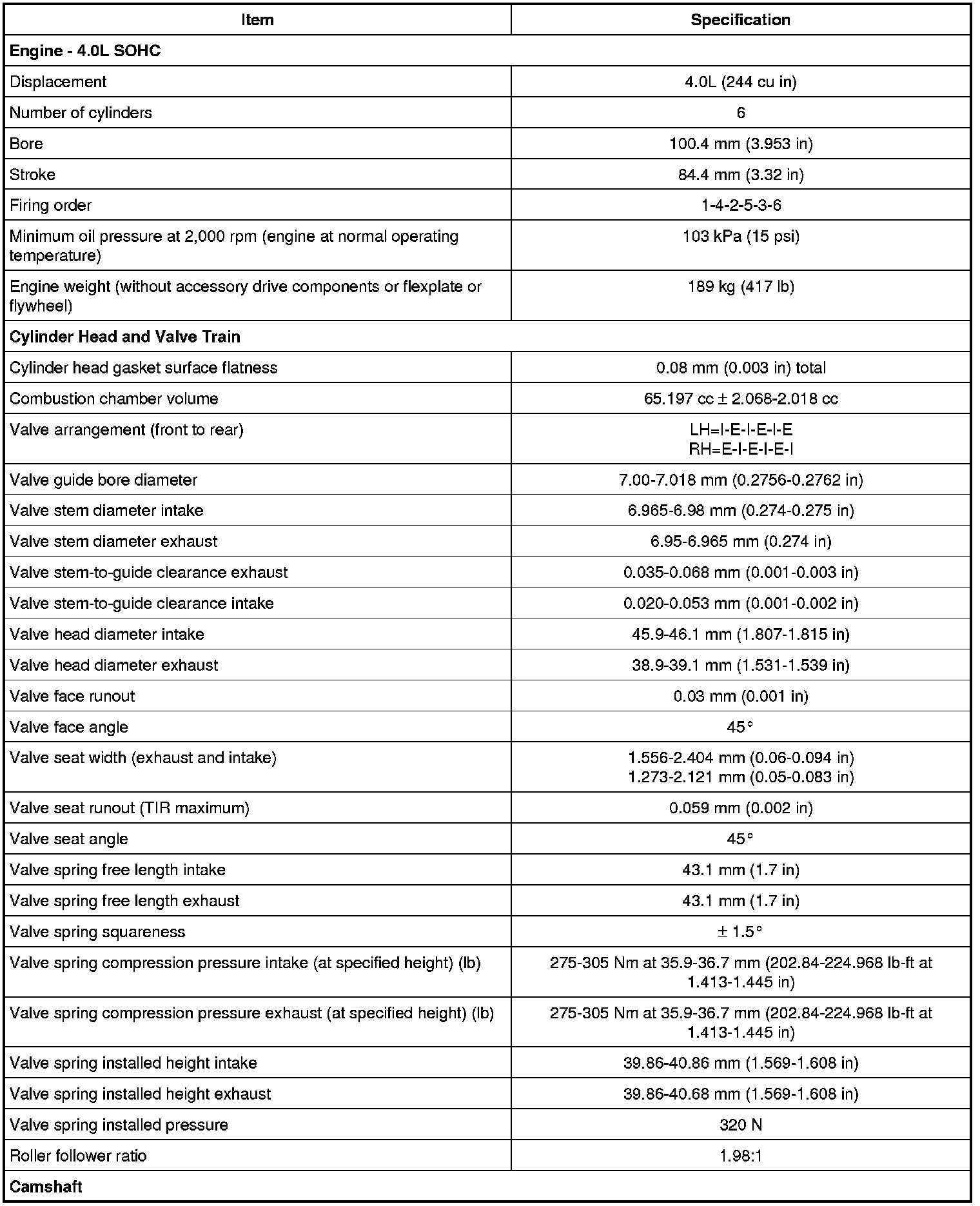

General Specifications













a Tighten camshaft bearing cap bolts to 15 Nm (133 lb-in) when measuring journal clearance.

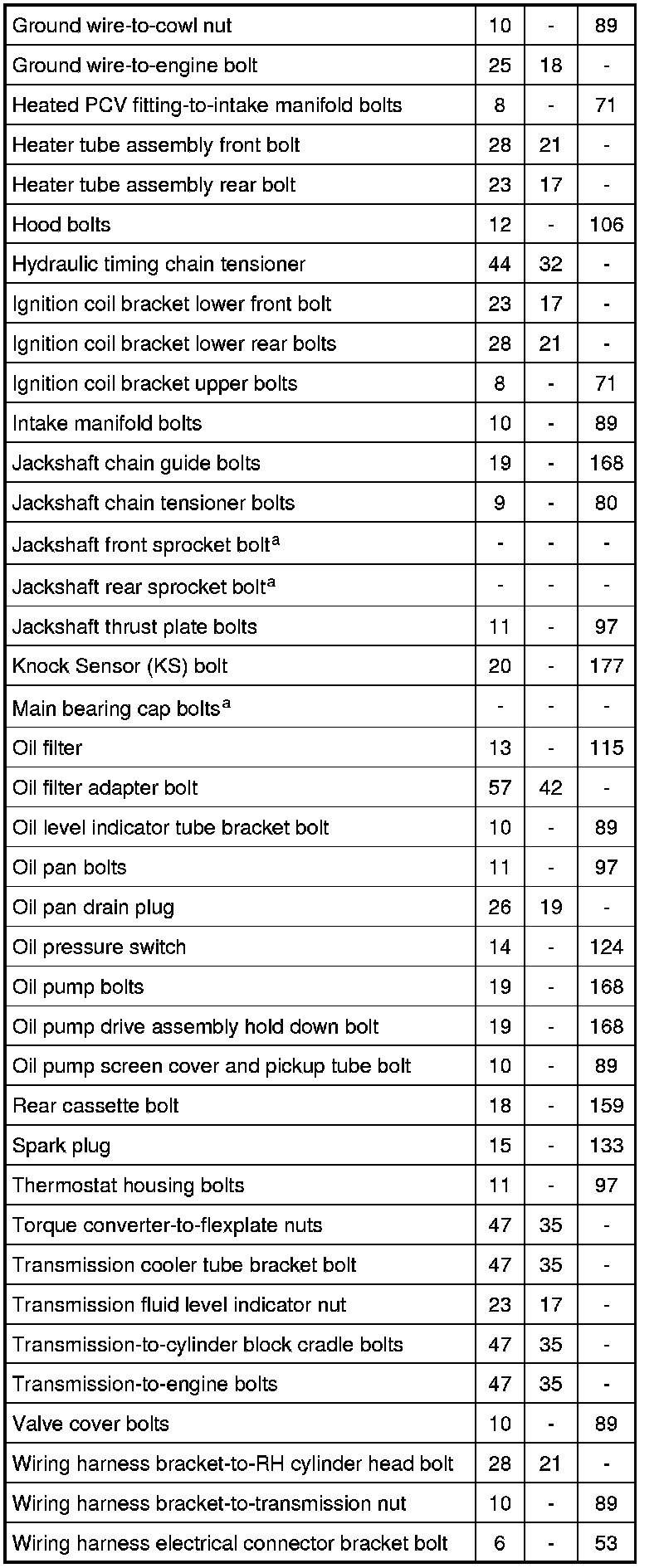

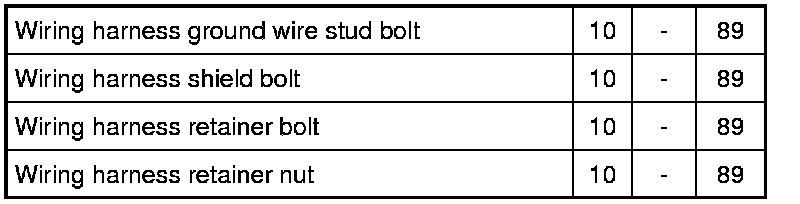

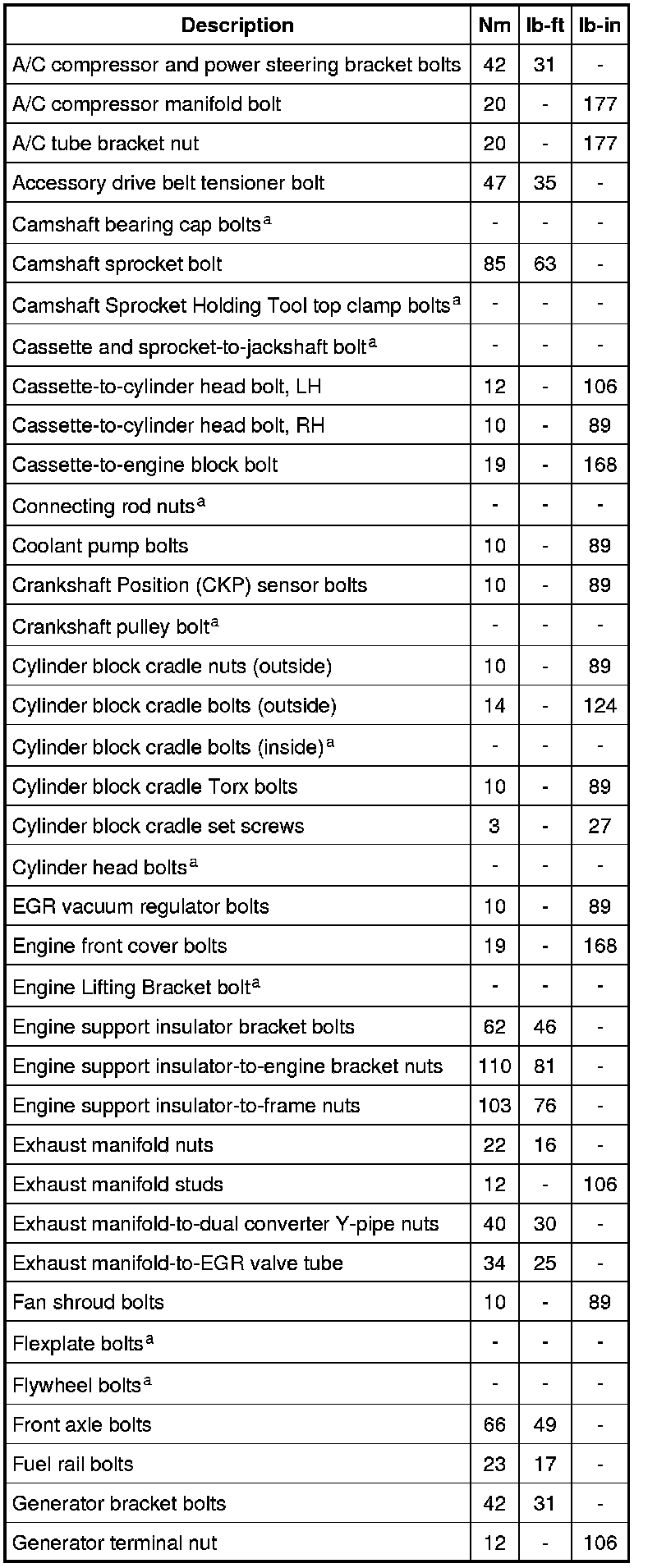

Torque Specifications













a Refer to the procedure.
