Symptom Chart - Electrical

Handles, Locks, Latches and Entry Systems - With Intelligent Access (IA)

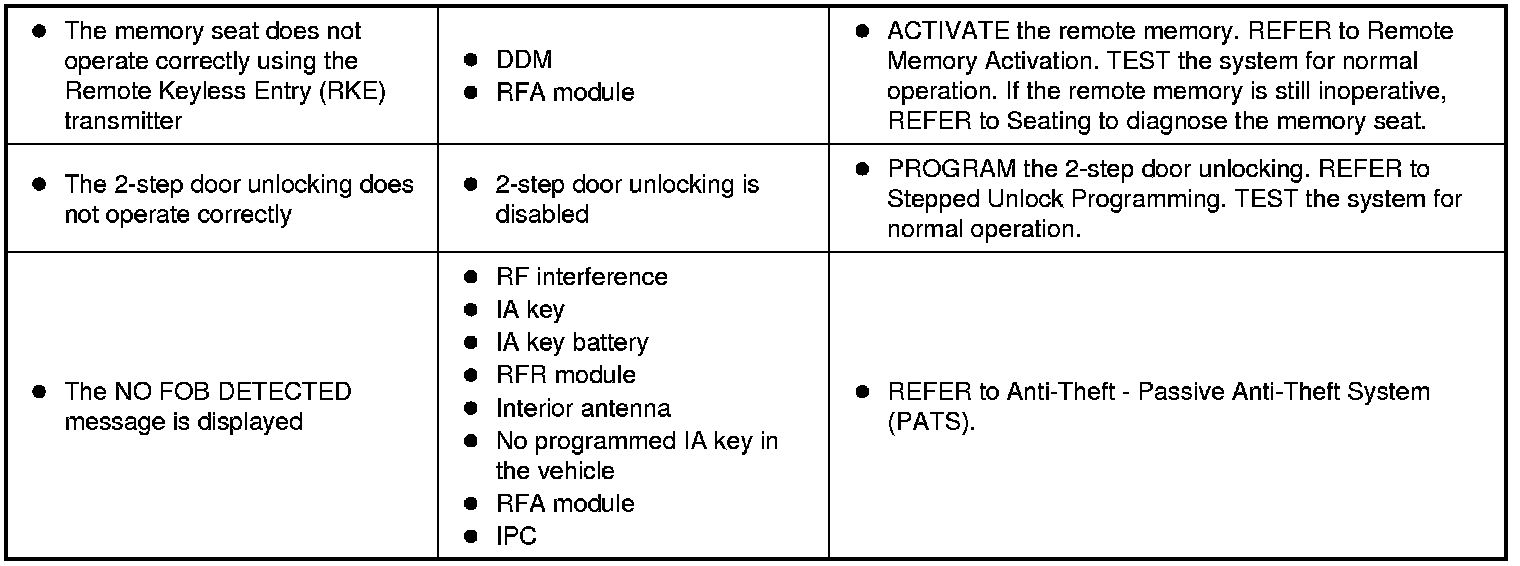

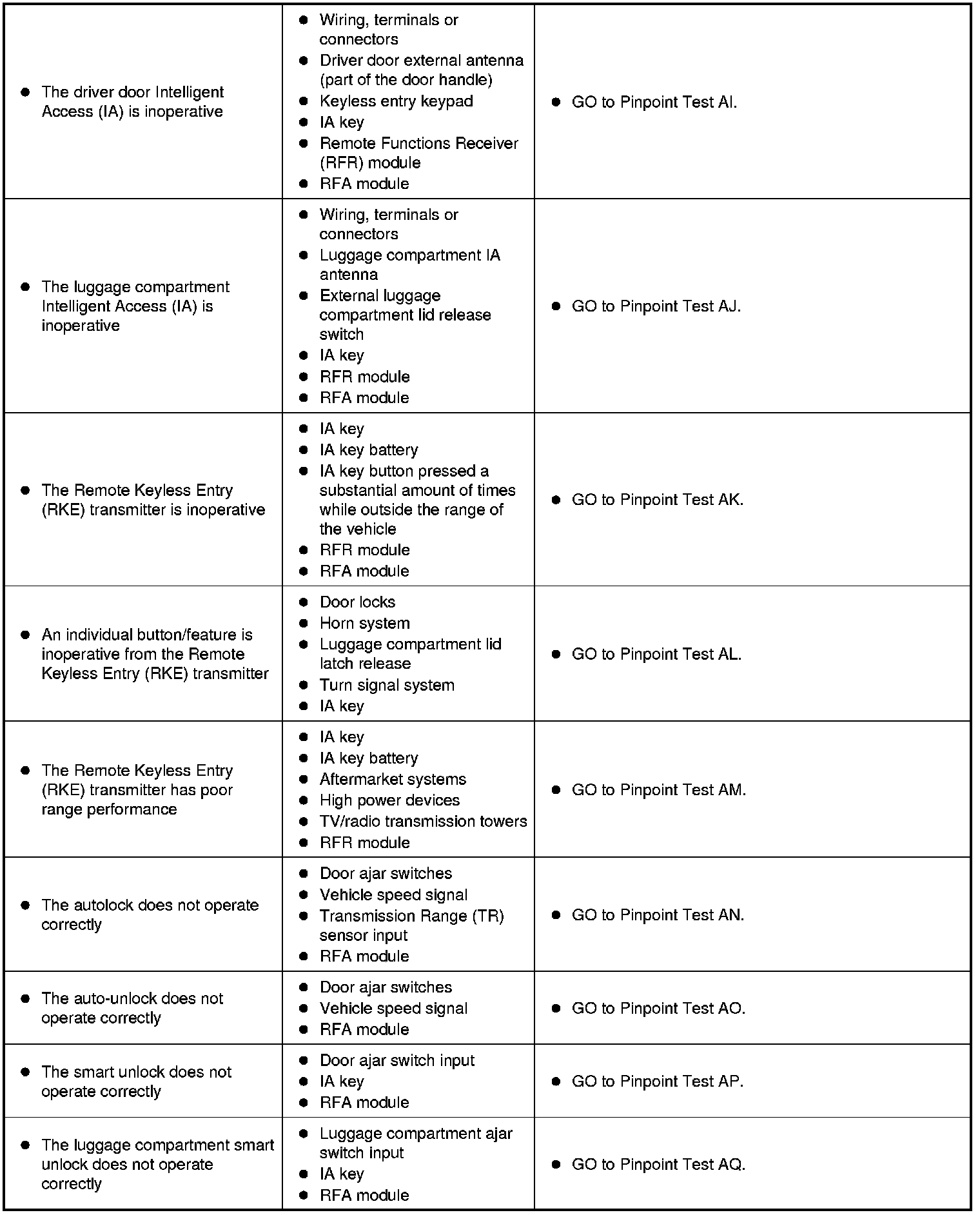

Symptom Chart

NOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start in Anti-Theft - Passive Anti-Theft System (PATS) Anti-Theft - Passive Anti-Theft System (PATS) to review the procedures for achieving the various ignition modes (ignition off, ignition in accessory, ignition in run, and ignition start) on vehicles with this feature.
