Steps 121-160

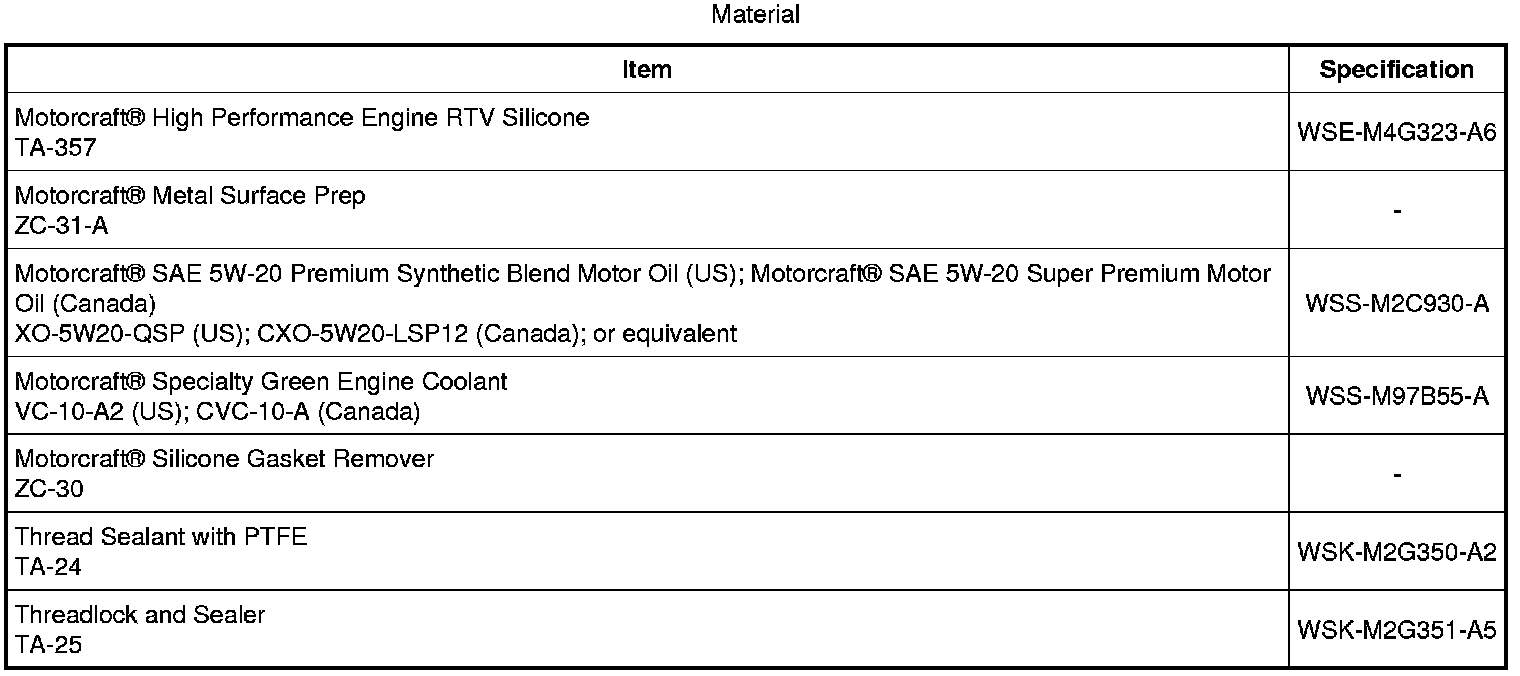

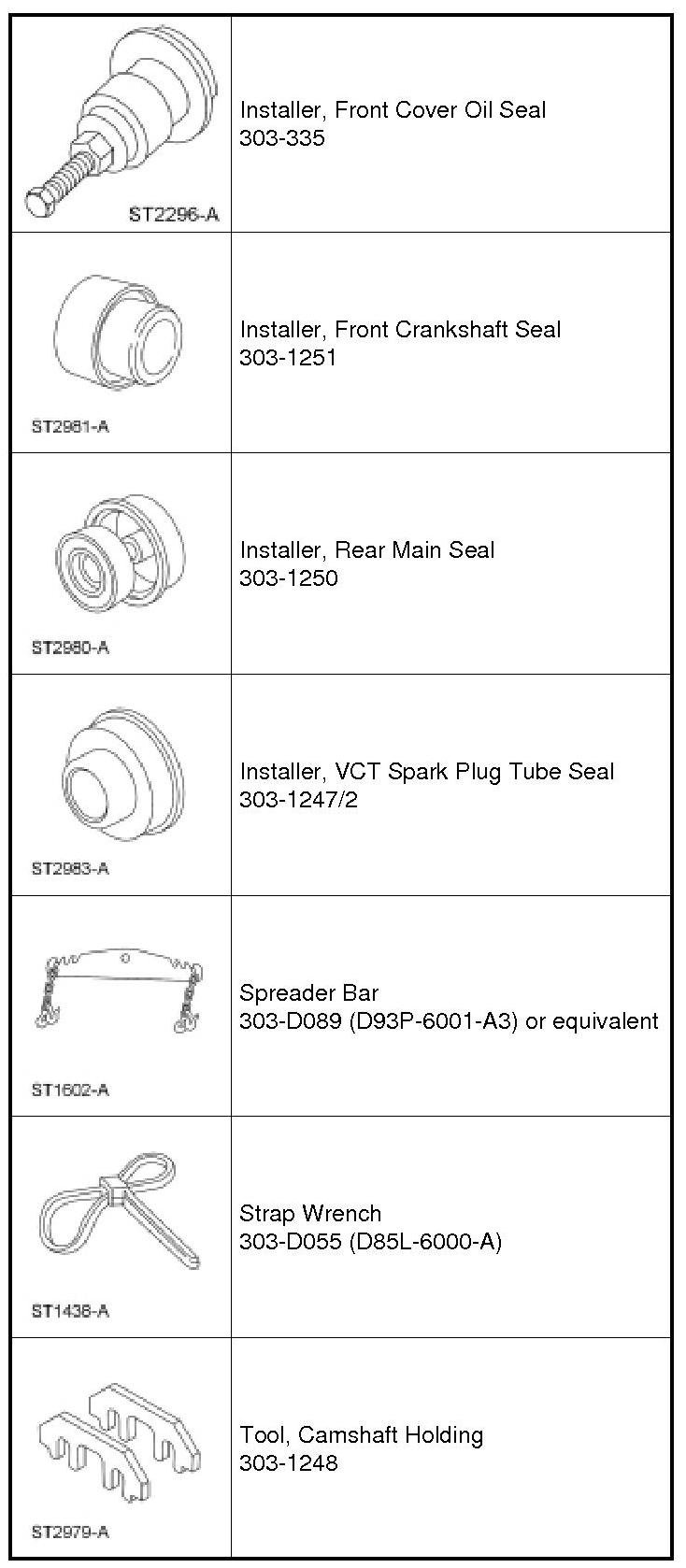

Engine













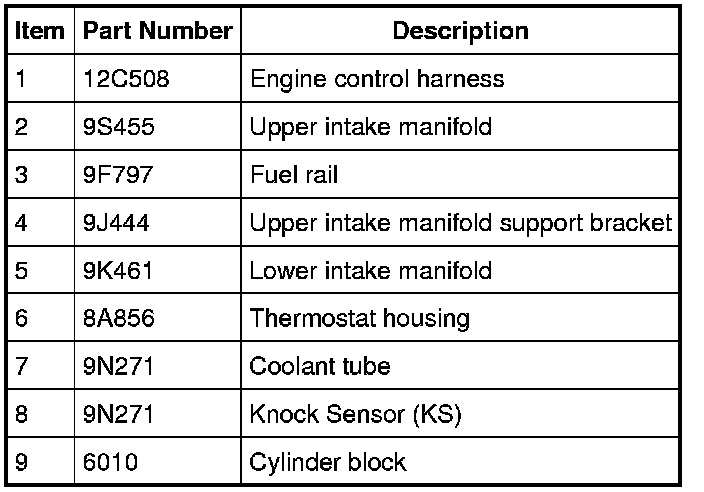

Engine Upper

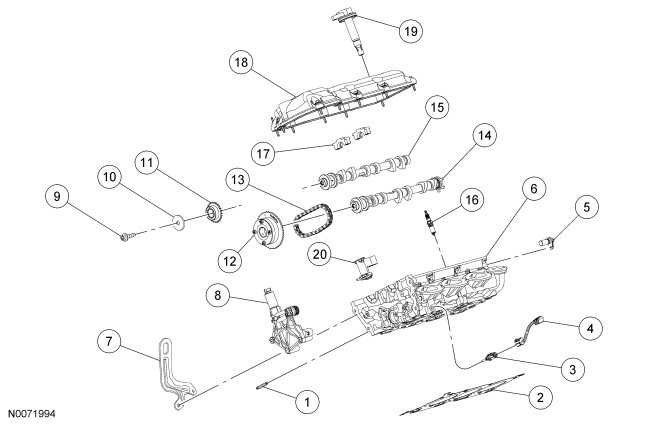

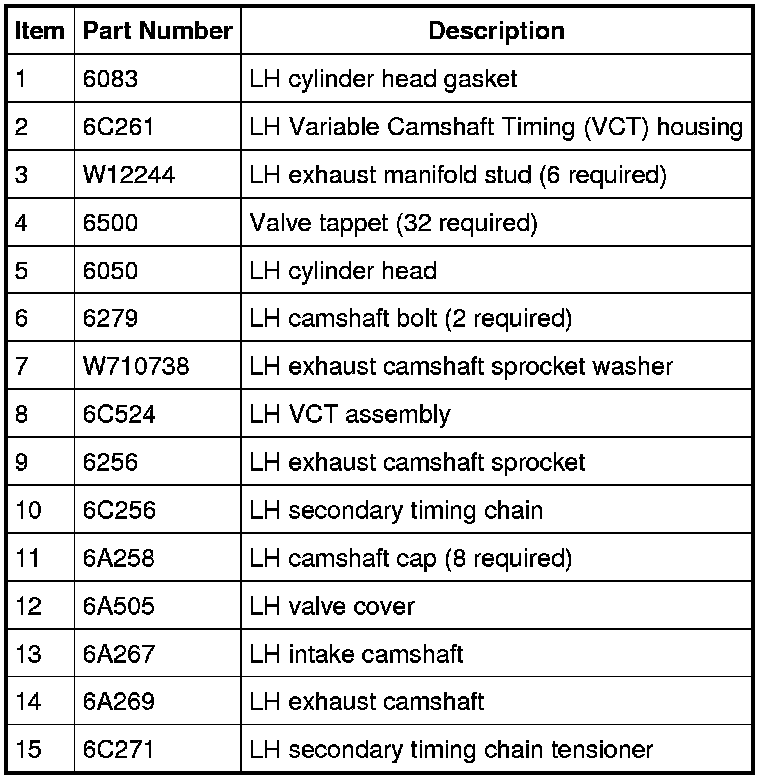

Engine Upper - LH Cylinder Head

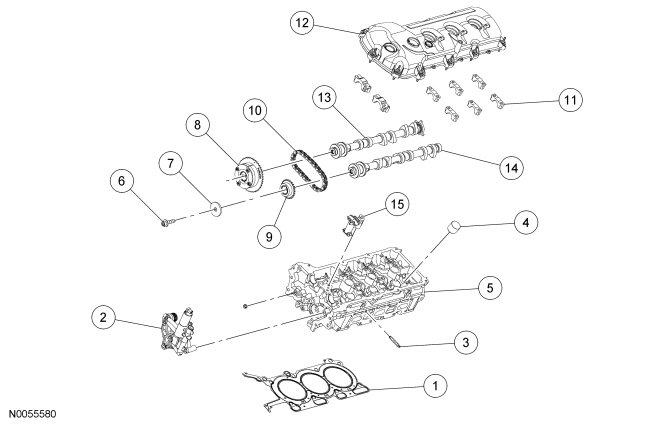

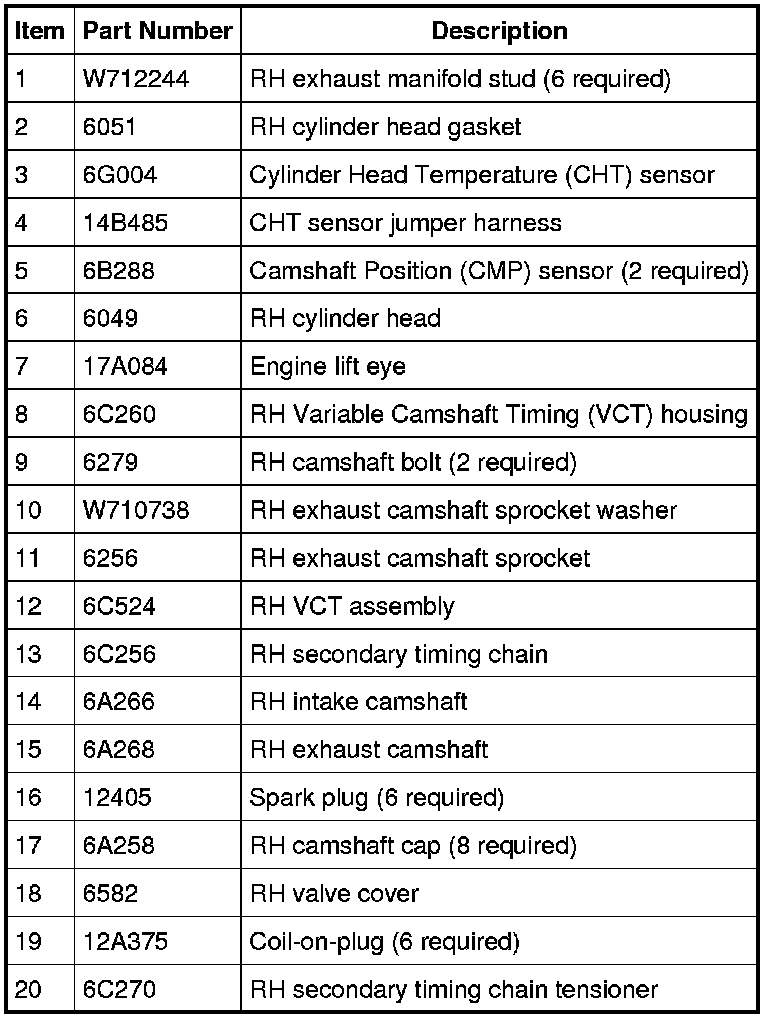

Engine Upper - RH Cylinder Head









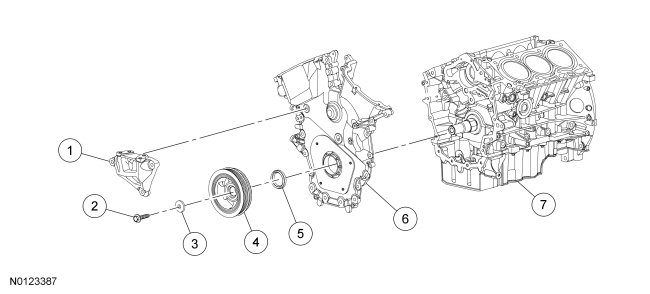

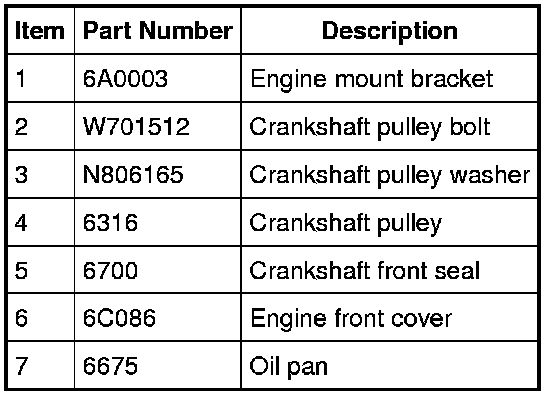

Engine Front

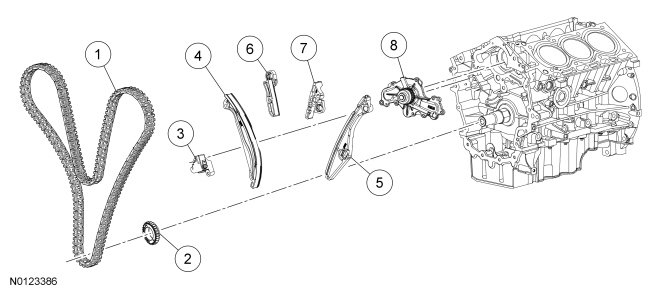

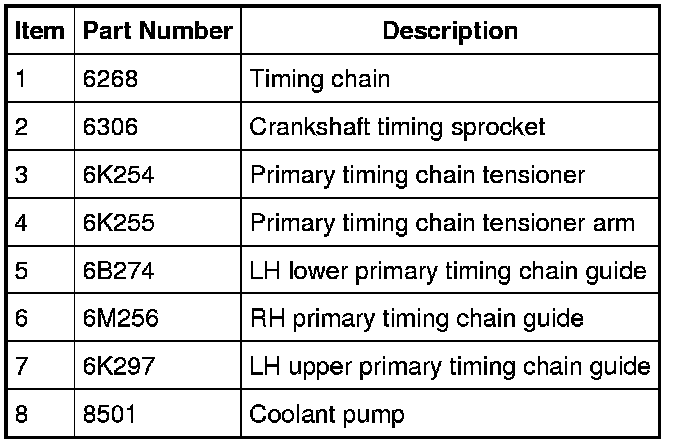

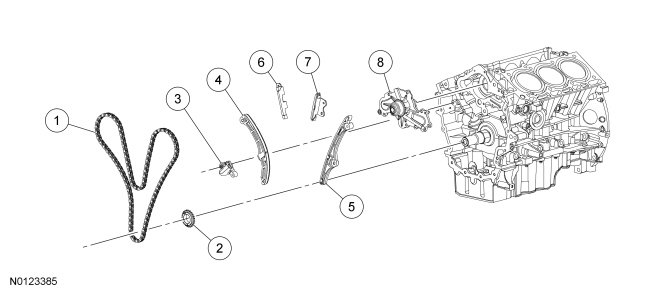

Timing Drive Components - Roller Timing Chain

NOTE: Stamped steel RH timing chain guide shown, composite guide similar.









Timing Drive Components - Inverted Tooth Timing Chain

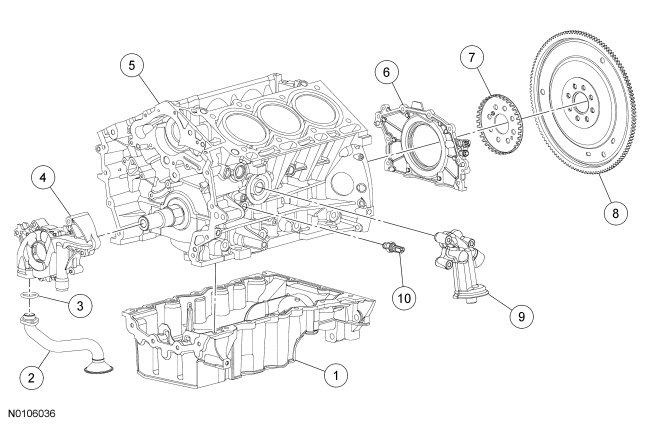

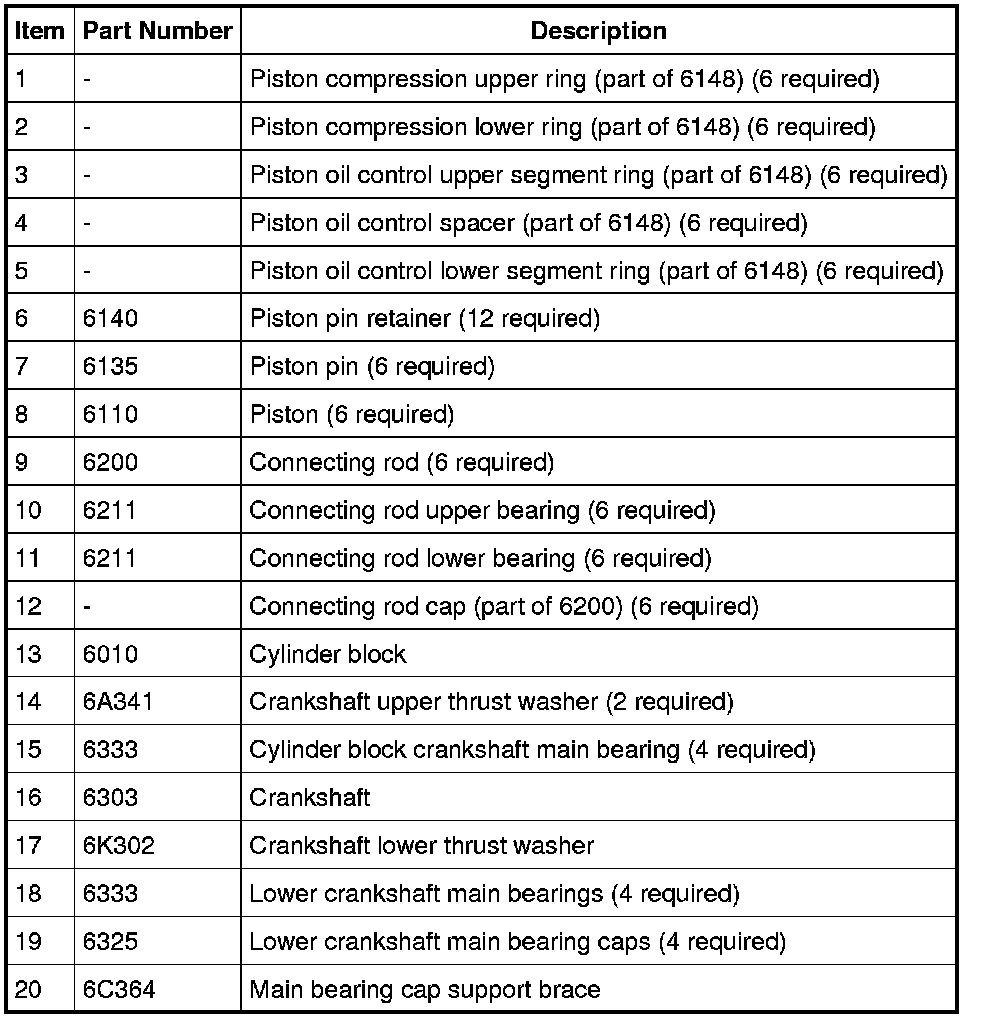

Lower Engine Block (View 1)

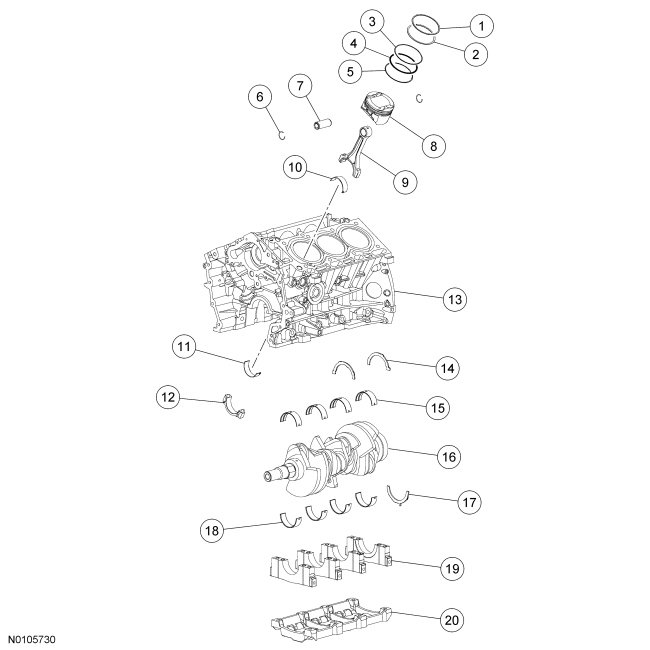

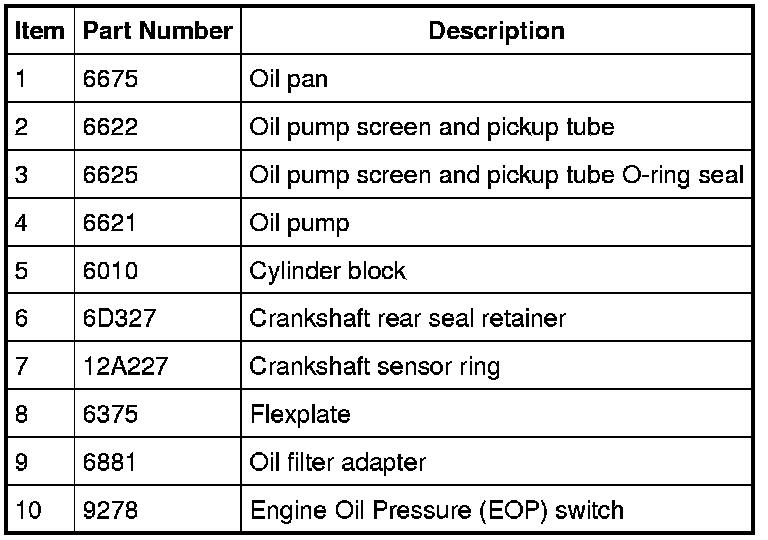

Lower Engine Block (View 2)









NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

NOTE: The engine comes equipped with either a roller primary timing chain or an inverted tooth primary timing chain. The roller timing chain engine comes equipped with either a composite RH timing chain guide requiring the timing chain to ride on the outer side of the guide or a stamped steel RH timing chain guide requiring the timing chain to ride on the inner side of the guide. All roller timing chain engine replacement RH timing chain guides will be the stamped steel design.

NOTE: Assembly of the engine requires various inspections/measurements of the engine components (engine block, crankshaft, connecting rods, pistons and piston rings). These inspections/measurements will aid in determining if the engine components will require replacement. For additional information, refer to Engine System - General Information Procedures.

Front Wheel Drive (FWD) vehicles

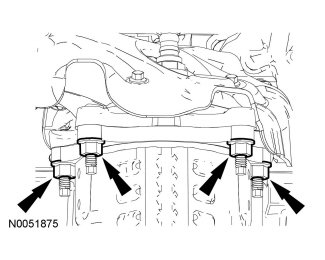

121. Using a new gasket, install the RH catalytic converter and the 4 new nuts.
- Tighten to 40 Nm (30 lb-ft).





All engines

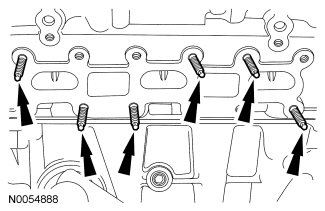

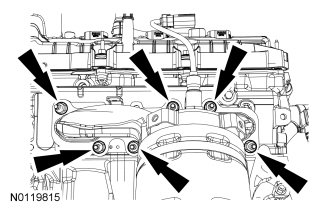

122. Install 6 new LH exhaust studs.
- Tighten to 12 Nm (106 lb-in).





123. Using a new gasket, install the LH catalytic converter and 3 new lower LH catalytic converter manifold-to-cylinder head nuts.
- Install the 3 new upper LH catalytic converter manifold-to-cylinder head nuts and tighten to 25 Nm (18 lb-ft).

- Tighten the 3 lower LH catalytic converter manifold-to-cylinder head nuts to 25 Nm (18 lb-ft).

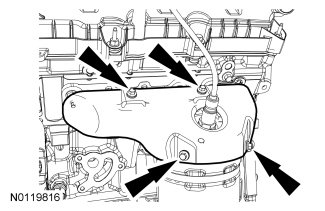

124. Install the LH exhaust heat shield and the 4 bolts.
- Tighten to 10 Nm (89 lb-in).

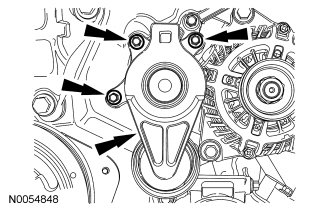

125. Install the accessory drive belt tensioner and the 3 bolts.
- Tighten to 11 Nm (97 lb-in).

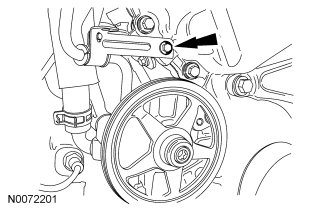

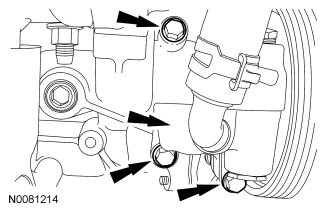

126. Install the power steering pump and the 3 bolts.
- Tighten to 25 Nm (18 lb-ft).

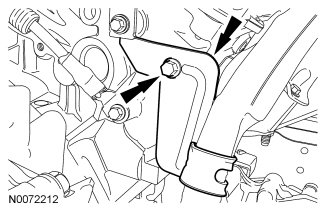

127. Install the Power Steering Pressure (PSP) tube bracket and the bolt to the RH cylinder head.
- Tighten to 10 Nm (89 lb-in).





128. Install the PSP tube bracket and nut to the RH valve cover stud bolt.
- Tighten to 7 Nm (62 lb-in).





129. Install the PSP tube bracket bolt.
- Tighten to 10 Nm (89 lb-in).





130. Install the stud, generator and the nut and the bolt.
- Tighten the generator stud to 12 Nm (106 lb-in).

- Tighten nut and bolt to 48 Nm (35 lb-ft).

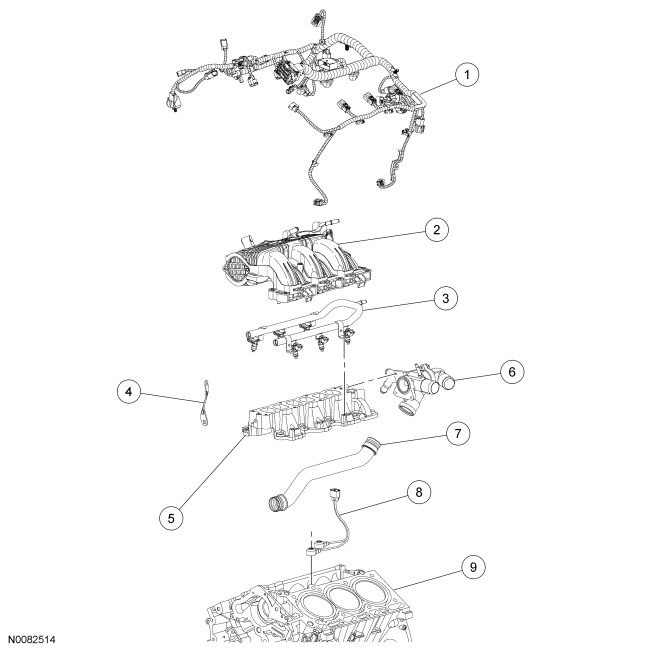

131. Position the wiring harness onto the engine.

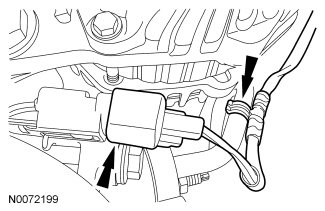

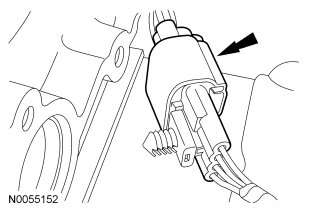

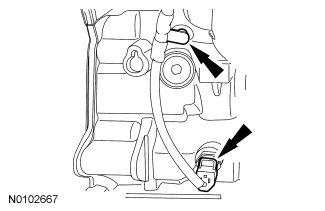

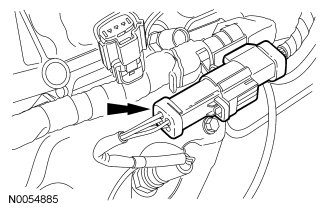

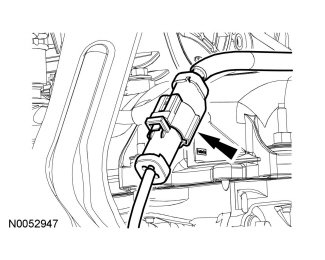

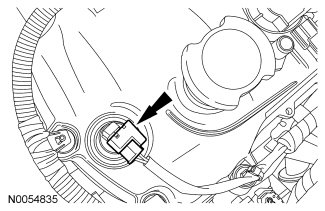

132. Connect the EOP switch electrical connector and the wiring harness pin-type retainer.

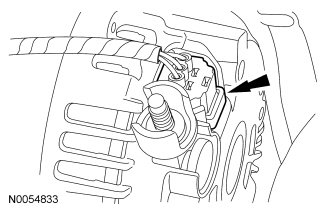

133. Connect the generator electrical connector.





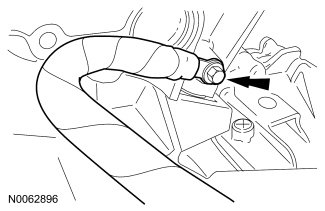

134. Connect the generator B+ cable and install the nut.
- Tighten to 17 Nm (150 lb-in).

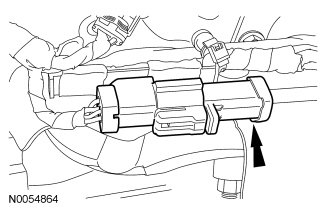

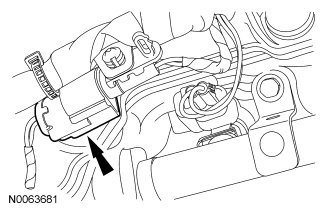

135. Connect the A/C compressor electrical connector.
- Attach the A/C compressor wiring harness retainer.

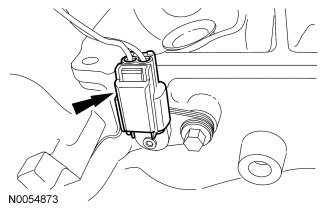

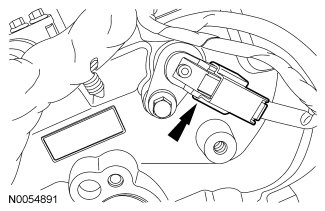

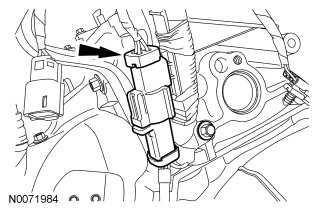

136. Connect the CKP sensor electrical connector.





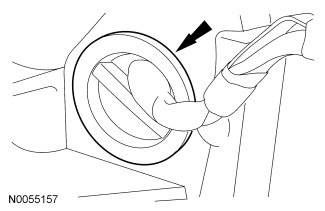

137. Install the wiring harness grommet.

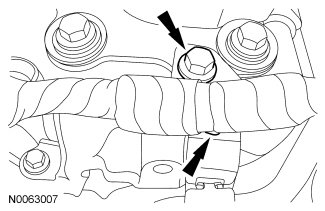

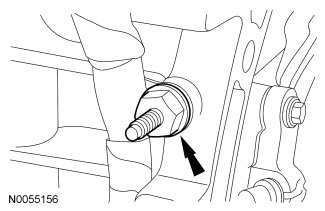

138. Install the wiring harness retainer stud bolt.
- Tighten to 10 Nm (89 lb-in).





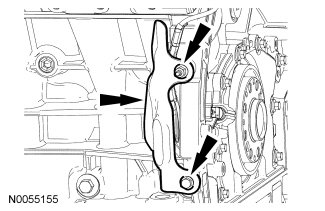

139. Install the heat shield, the nut and the bolt.
- Tighten to 10 Nm (89 lb-in).





140. Attach all of the wiring harness retainers to the LH valve cover and stud bolts.

141. Connect the LH camshaft VCT solenoid electrical connector.

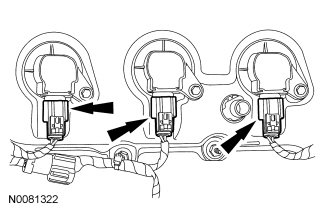

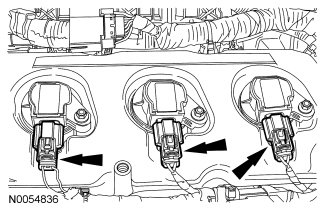

142. Connect the 3 LH coil-on-plug electrical connectors.





143. Connect the LH Heated Oxygen Sensor (HO2S) electrical connector.





144. Connect the LH CMS electrical connector.





145. Connect the LH CMP sensor electrical connector.





146. Connect the CHT sensor electrical connector.

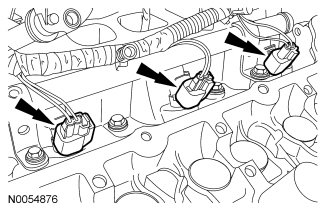

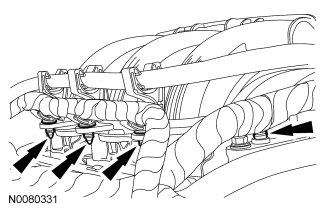

147. Connect the 6 fuel injector electrical connectors (3 shown).





148. Install the RH cylinder head ground cable and the bolt.
- Tighten to 10 Nm (89 lb-in).

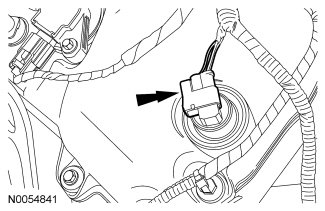

149. Connect the KS electrical connector.





150. Connect the RH CMP sensor electrical connector.





151. Attach all of the wiring harness retainers to the RH valve cover and stud bolts.

152. Connect the 3 RH coil-on-plug electrical connectors.





153. Connect the RH VCT solenoid electrical connector.





154. Connect the RH HO2S electrical connector.





FWD vehicles

155. Connect the RH CMS electrical connector.





All engines

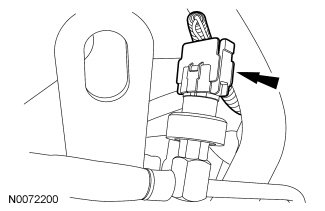

156. Connect the PSP switch electrical connector.





157. NOTICE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

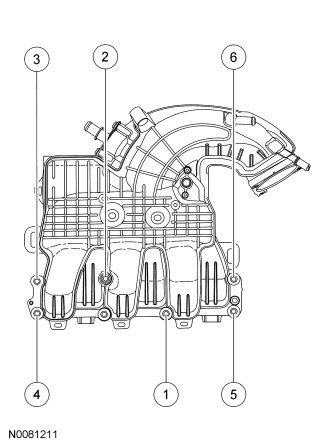

Using a new gasket, install the upper intake manifold and the 6 bolts.

- Tighten in the sequence shown to 10 Nm (89 lb-in).





158. Install the fuel tube bracket bolt to the upper intake manifold and install the wiring harness pin-type retainer.
- Tighten to 6 Nm (53 lb-in).





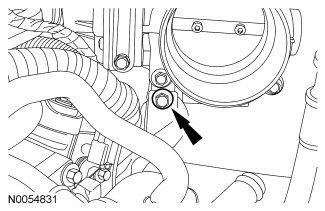

159. Install the upper intake manifold support bracket bolt.
- Tighten to 10 Nm (89 lb-in).





160. Attach the wiring harness retainers to the upper intake manifold.
