Ignition Lock Cylinder

Ignition Lock Cylinder









Removal and Installation

NOTE: For non-functional ignition lock cylinders, the ignition lock cylinder housing has to be replaced. For additional information, refer to Ignition Lock Cylinder Housing Ignition Lock Cylinder Housing.

1. Remove the floor console LH finish moulding. For additional information, refer to Console - Floor Trim Panels, Moulding And Fasteners exploded view in Instrument Panel and Console Console - Floor.

2. Insert the ignition key and turn it to the ACC position.

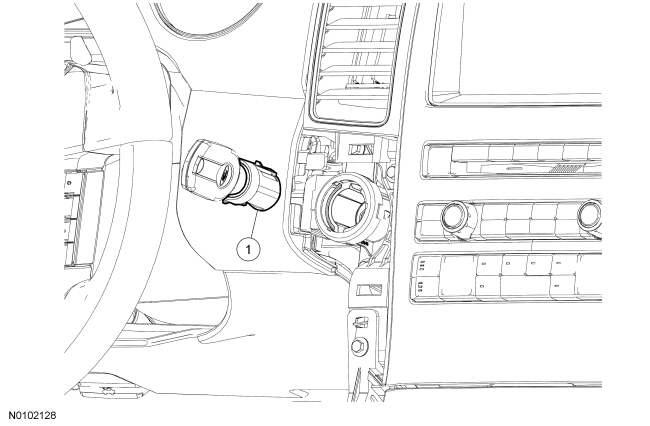

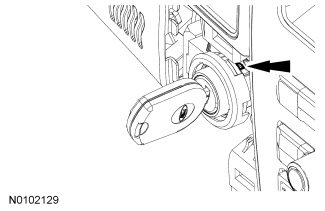

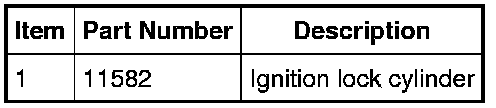

3. Using a suitable tool, press the release pin on the top side of the ignition lock cylinder housing and remove the ignition lock cylinder.





4. If a new lock cylinder with keys is replaced, the new Passive Anti-Theft System (PATS) keys must be programmed. For additional information, refer to Key Programming Using Diagnostic Equipment - Integrated Keyhead Transmitter (IKT) in Anti-Theft - Passive Anti-Theft System (PATS) Key Programming.

5. To install, reverse the removal procedure.
