Register - Driver Side

Register - Driver Side









Removal and Installation

1. Remove the instrument cluster finish panel. For additional information, refer to Instrument Panel and Console Instrument Cluster Finish Panel.

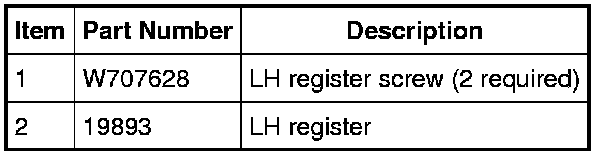

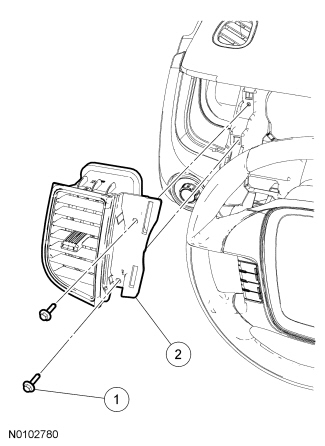

2. Remove the 2 LH register screws.

3. Remove the LH register.

4. To install, reverse the removal procedure.
