Sliding Door: Service and Repair

Sliding Door









Removal and Installation

NOTICE: The following steps require the aid of an assistant. Failure to follow this direction may result in damage to the vehicle.

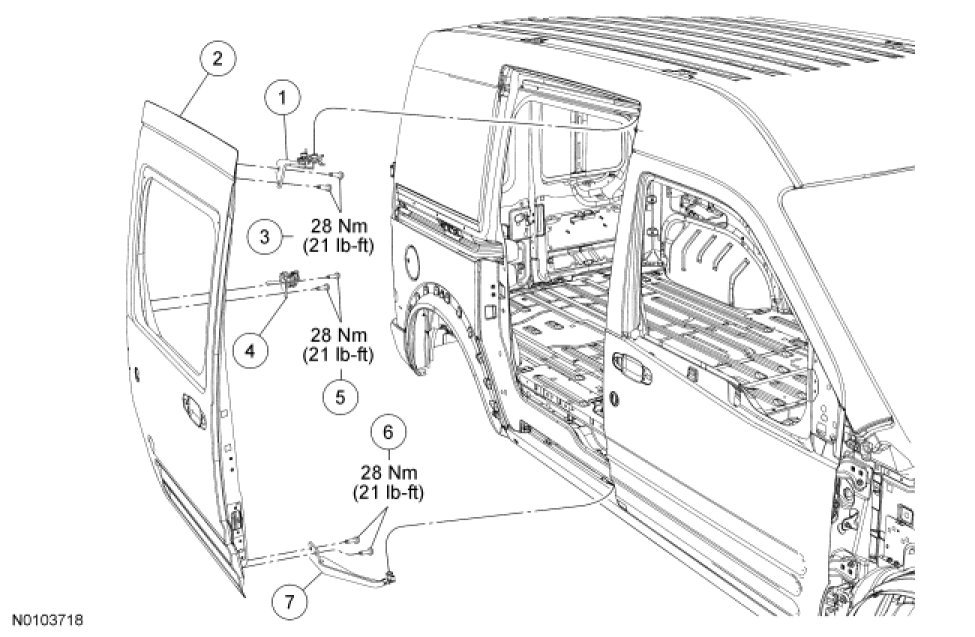

1. Support the sliding door.

2. Remove the sliding door lower hinge bolts.
- To install, tighten to 28 Nm (21 lb-ft).

3. Remove the sliding door upper hinge bolts.
- To install, tighten to 28 Nm (21 lb-ft).

4. Remove the sliding door rear hinge bolts.
- To install, tighten to 28 Nm (21 lb-ft).

5. Remove the sliding door.

6. To install, reverse the removal procedure.

7. Adjust as necessary. For additional information, refer to Door Alignment - Sliding Door Adjustments.
