Door Lock Cylinder - Sliding

Door Lock Cylinder - Sliding

Removal and Installation

1. If equipped with power door locks, remove the Central Junction Box (CJB) fuse 163 (20A) to prevent the Generic Electronic Module (GEM) from actuating the door locks.

2. Remove the sliding cargo door trim panel. For additional information, refer to the Sliding Cargo Door Trim exploded view In Interior Trim and Ornamentation Interior Trim - Exploded View.

3. Position the water shield aside.

4. Remove the sliding cargo door lock cylinder retaining clip.





5. Insert the key into the sliding cargo door lock cylinder and rotate it clockwise.

6. NOTE: Sliding door not shown for clarity.

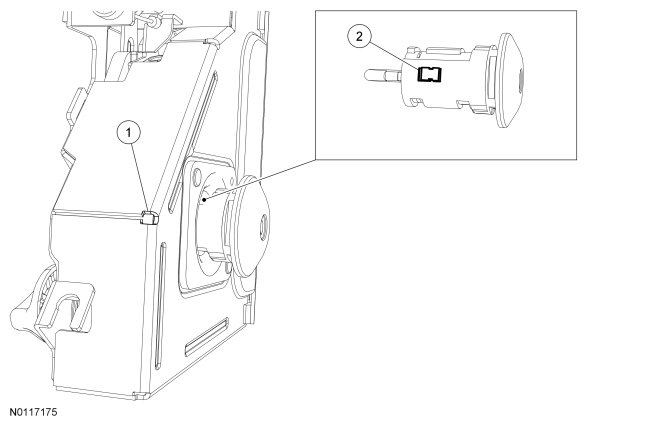

Release the sliding cargo door lock cylinder locking pin.

1. Insert a small flat-blade screwdriver or a suitable tool, into the access gap.

2. Press in the sliding cargo door lock cylinder locking pin.





7. Rotate the sliding cargo door lock cylinder counterclockwise

8. Pull outward and remove the sliding cargo door lock cylinder.





9. To install, reverse the removal procedure.
