Brake Caliper

Brake Caliper





Removal and Installation

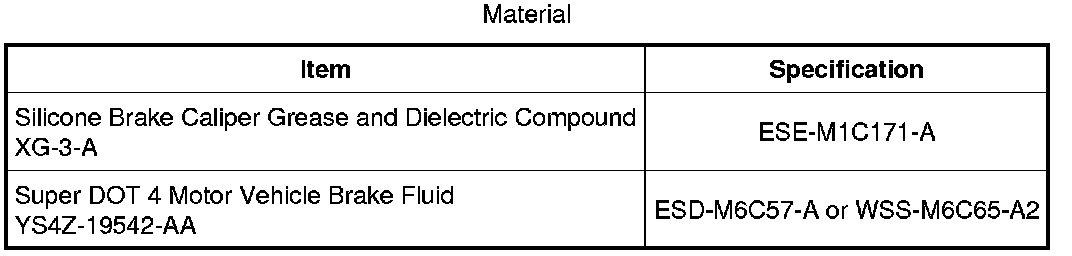

WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

1. Remove the wheel and tire. For additional information, refer to Wheels and Tires Removal and Replacement.

2. Remove the brake pad anti-rattle spring.

3. Disconnect the brake flexible hose fitting from the brake caliper.
- To install, tighten to 14 Nm (124 lb-in).

4. Remove the 2 guide pin bolt covers, the 2 brake caliper guide pin bolts and remove the brake caliper.
- To install, tighten the bolts to 30 Nm (22 lb-ft).

5. To install, reverse the removal procedure.
- Apply silicone grease to the brake pad-to-brake caliper contact points.

- Make sure the holding feature on the brake flexible hose is aligned with the notch on the brake caliper.

- Bleed the brake caliper. For additional information, refer to Component Bleeding in Brake System - General Information Brake System Bleeding.
