Procedures

Fuel Tank Draining





WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.

WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

1. Disconnect the battery ground cable. For additional information, refer to Battery, Mounting and Cables Battery Disconnect.

2. Carefully turn the fuel tank filler cap counterclockwise approximately one-fourth turn until the thread disengages and position aside.

3. Insert a length of semi-rigid fuel drain tube into the fuel tank filler pipe until it enters the fuel tank.

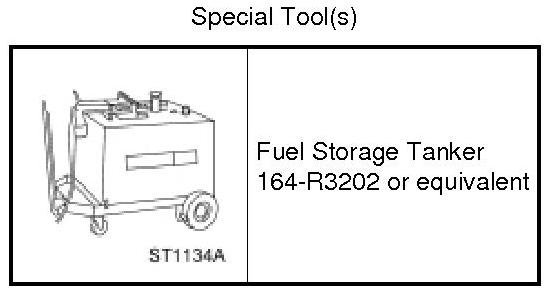

4. Attach the Fuel Storage Tanker to the fuel drain tube and remove as much fuel as possible from the fuel tank.
