Rear Suspension

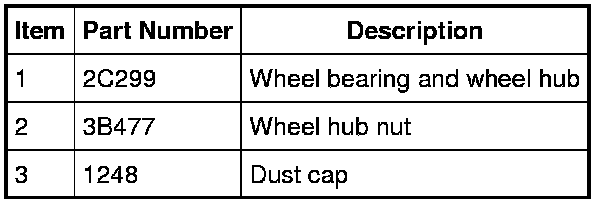

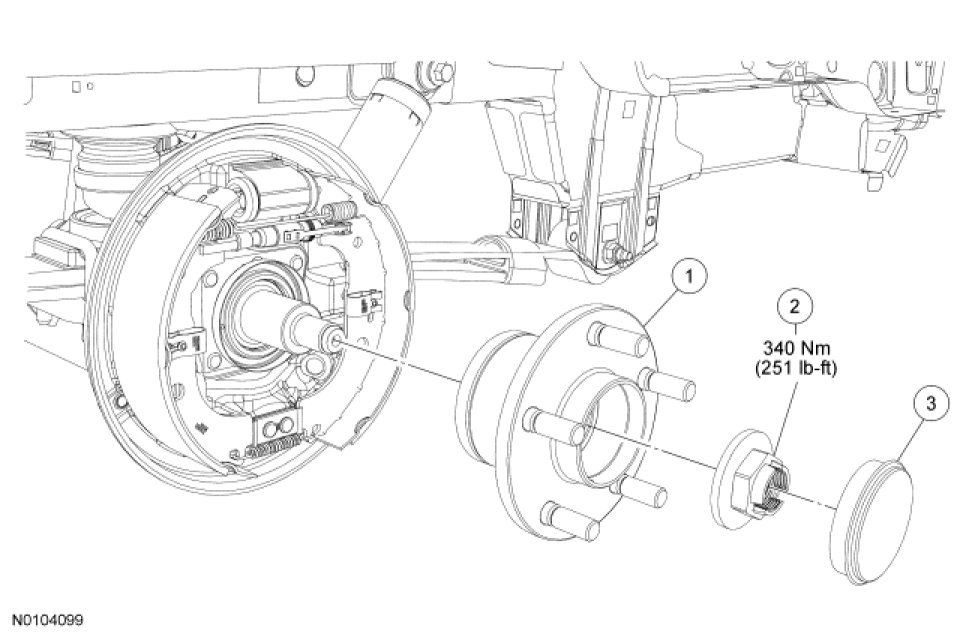

Wheel Bearing and Wheel Hub









Removal and Installation

1. Remove the brake drum. For additional information, refer to Drum Brake Service and Repair.

2. Remove the dust cap.

3. Remove and discard the wheel hub nut.
- To install, tighten the new nut to 340 Nm (251 lb-ft).

4. Remove the wheel bearing and wheel hub.

5. To install, reverse the removal procedure.
