Rear Lamp Assembly

Rear Lamp Assembly

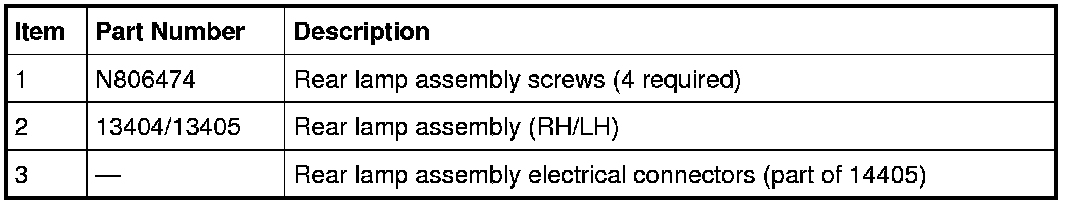

NOTE: RH side shown, LH side similar.









Removal and Installation

1. Remove the 4 screws and the rear lamp assembly.
- Disconnect the electrical connectors.


2. To install, reverse the removal procedure.
