Door Position Switch
>>
Diagrams
>>

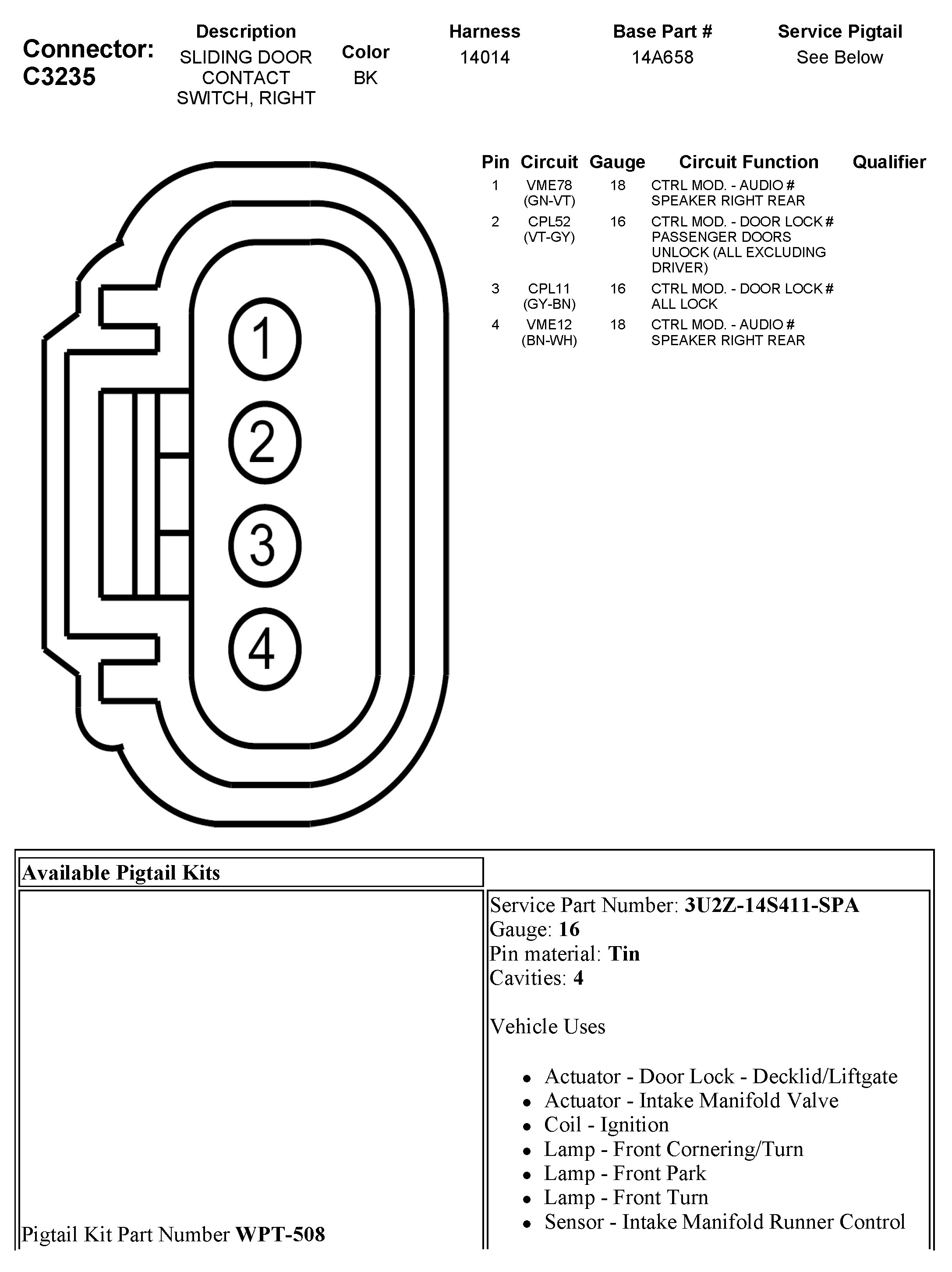

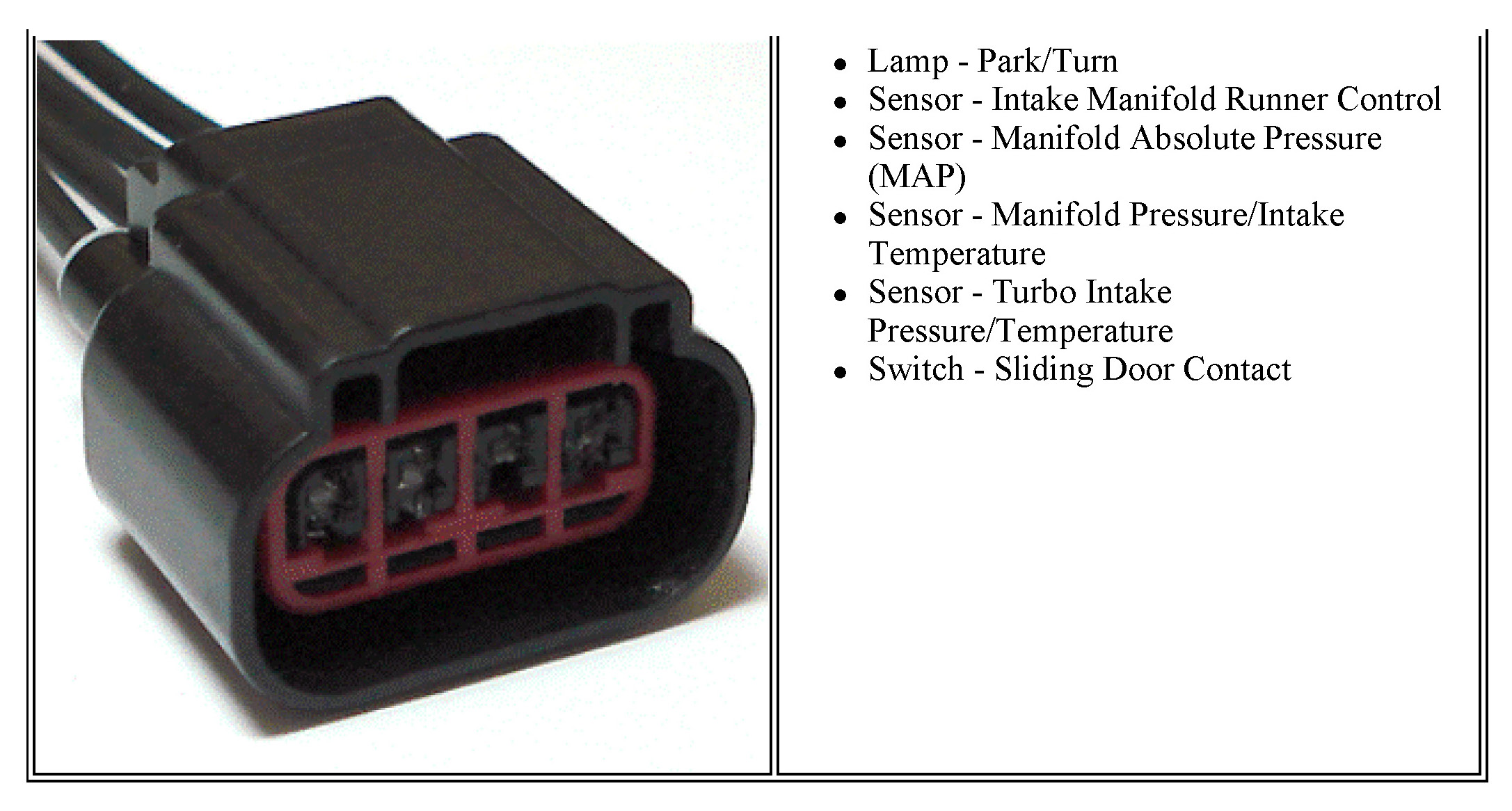

C3235 Sliding Door Contact Switch, Right
C3235 Sliding Door Contact Switch, Right
